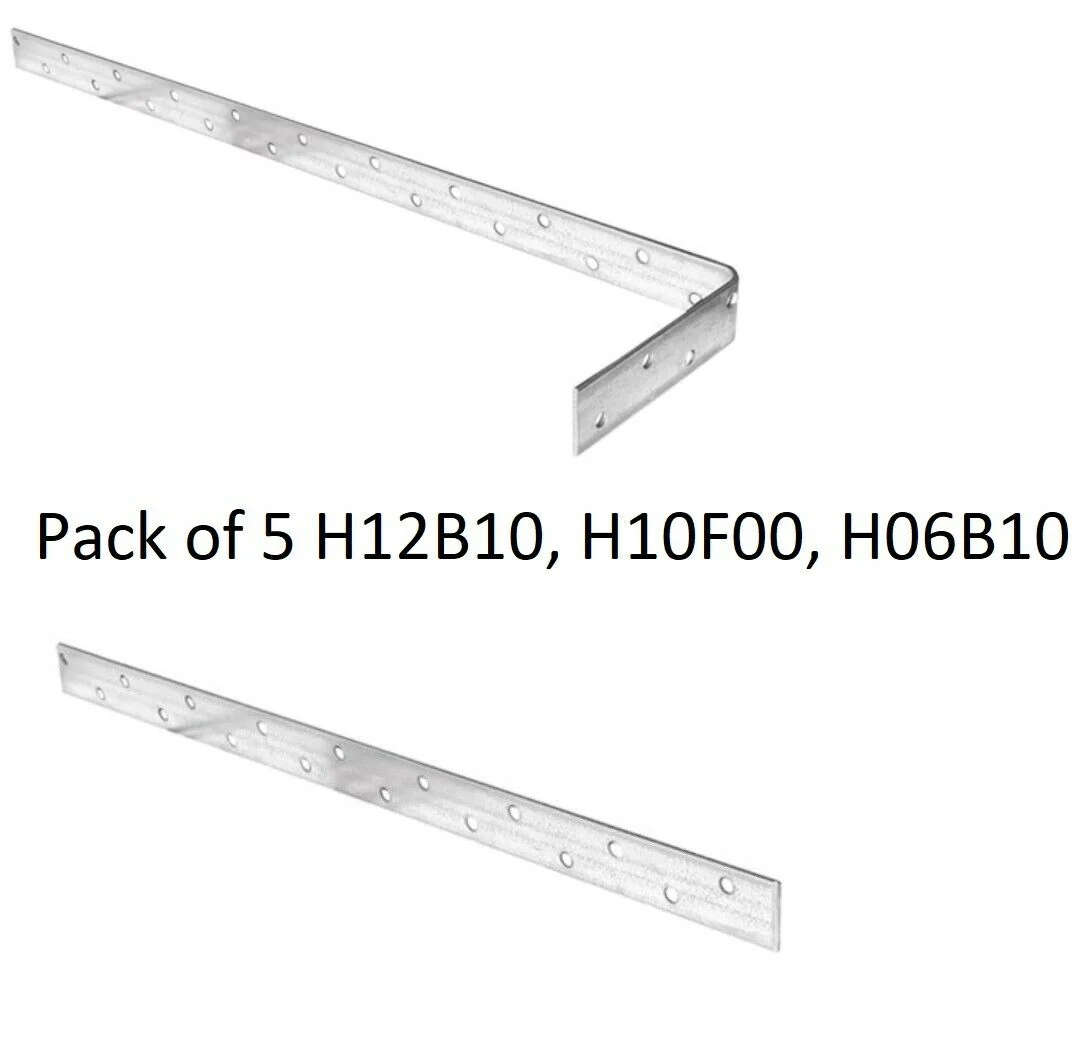

5x Simpson Strong-Tie H12B10 H10F00 H06B10 Heavy Duty Lateral Restraint Strap

Pack Sizes: 5 Units per Variant

Reliable Lateral Restraint for Timber-to-Masonry Connections

The Simpson Strong-Tie H-Series Heavy Duty Lateral Restraint Straps are designed for horizontal restraint of timber floor and roof systems, securely connecting them to masonry walls. Compliant with Building Regulations and BS5268 Part 3, these straps are ideal for use in structural roof, rafter, and joist applications where lateral stability is essential.

Manufactured from 30mm x 5mm galvanised edge-coated steel, these straps are available in bent or straight configurations to suit different installation needs.

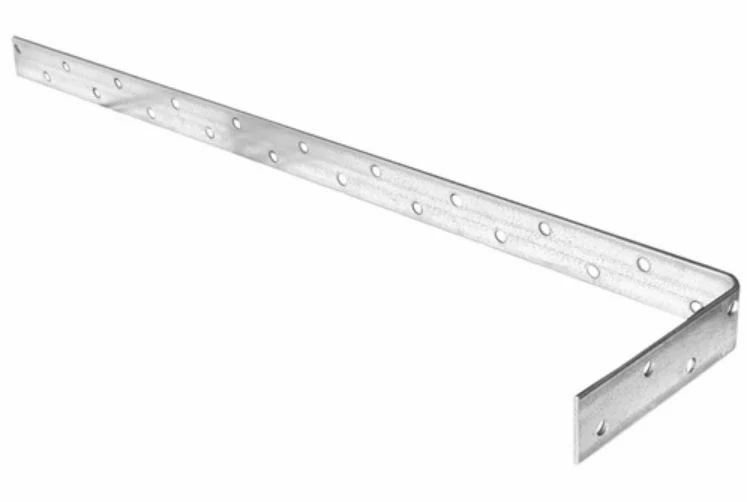

H12B10 – Bent Strap (1200mm Length, 100mm Bend)

Part Number: H12B10

• Length: 1200mm

• Bend (B1): 100mm

• Width: 30mm

• Thickness: 5mm

• Type: Bent at 100mm

• Finish: Pre-galvanised and edge-coated

• Pack Size: 5 Units

Applications:
Ideal for lateral restraint of roof trusses, rafters, and floor joists where a bent configuration is needed to bridge structural levels or clear obstructions.

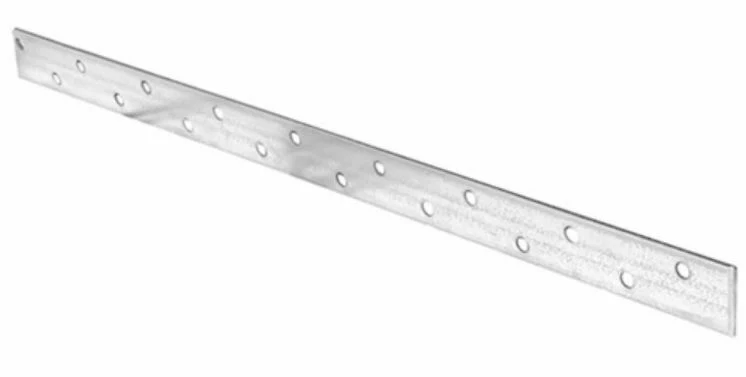

H10F00 – Straight Strap (1000mm Length)

Part Number: H10F00

• Length: 1000mm

• Width: 30mm

• Thickness: 5mm

• Type: Straight

• Finish: Pre-galvanised and edge-coated

• Pack Size: 5 Units

Applications:
Suited for straight-run installations in roof and floor systems, ensuring effective horizontal tie-in to masonry structures.

H06B10 – Bent Strap (600mm Length, 100mm Bend)

Part Number: H06B10

• Length: 600mm

• Bend (B1): 100mm

• Width: 30mm

• Thickness: 5mm

• Type: Bent at 100mm

• Finish: Pre-galvanised and edge-coated

• Pack Size: 5 Units

Applications:
Used for shorter spans or confined spaces where a compact bent strap is required for effective lateral restraint.

Benefits

• Provides compliance with UK building codes for structural safety

• Durable galvanised edge-coated steel for corrosion protection

• Suitable for both new builds and retrofits

• Versatile use in roof, rafter, joist, and floor systems

Material Specification

• Material: Galvanised edge-coated mild steel

• Complies with: Building Regulations, BS5268 Part 3
