980CC Fuel Injector Kit suitable for 1FZ-FE

**PLEASE NOTE: WE ARE CURRENTLY SUPPLYING THIS KIT WITH DEATSCHWERKS INJECTORS DUE TO SUPPLY CHAIN ISSUES**

980CC Fuel Injector Kit suitable for 1FZ-FE

Unleash the full potential of your 1FZ-FE engine with our Raceworks 980CC Injector and Harness Kit. This comprehensive kit includes 6 injectors and 6 harness adapters to fit the factory fuel rail and injector connectors on a 1FZ-FE engine. Whether you own a FZJ79, FZJ80, or FZJ105, this kit is your key to enhanced performance.

Fitment:

• Direct fit into factory rail
• 980CC – for turbocharged applications
• Tuning required – Aftermarket ECU such as Haltech recommended

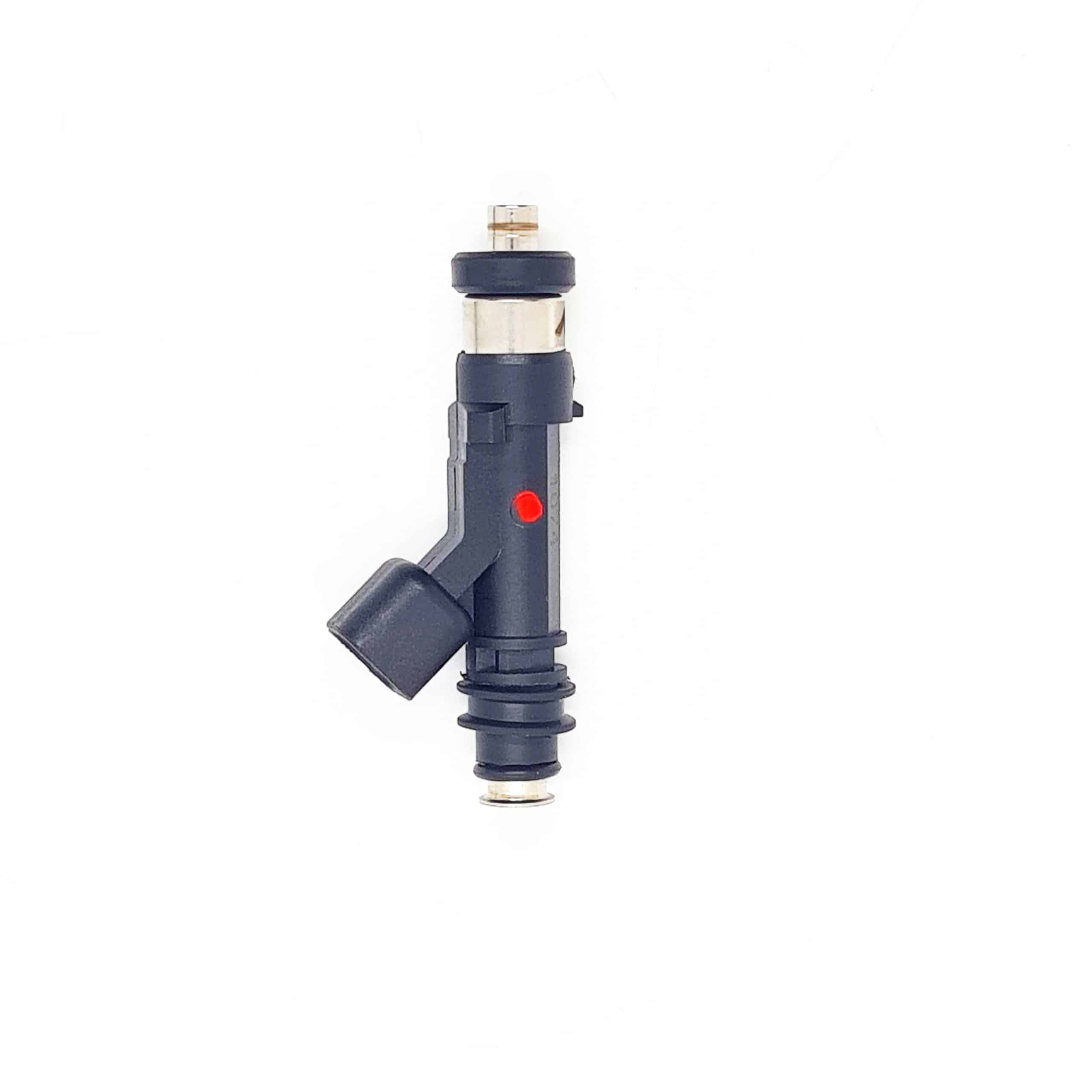

Injector Details:

• Modified High-Flow Bosch Injector
• Capacity: 980CC (95 LB/HR) at 3BAR and 1150CC (110 LB/HR) at 4BAR
• Impedance: High (12 Ohms)
• Plug Type: USCAR
• Top O-Ring Size: 11mm
• Safe for Ethanol & Methanol
• Spray Pattern: Narrow Cone
• Spray Direction: Straight
• Flow Variance: +/- 1.5% (3% Total)

Harness Adapter:

• CPS-112 Denso Harness – USCAR Injector (Pre-Wired)
