Alcon 6 Pot CAR70 RC6 Front Brake Calipers Evo 10

*Currently only available with DBA rotors*

Alcon was founded precisely because brakes are not just brakes. As well as being the primary active safety system on any car, the best brakes inspire confidence, augment the joy of driving and reduce lap times far more effectively and affordably than by adding power. And the best brakes are what we make, alongside clutch and pedal box systems for some of the most demanding and discerning clients on earth.

Calipers

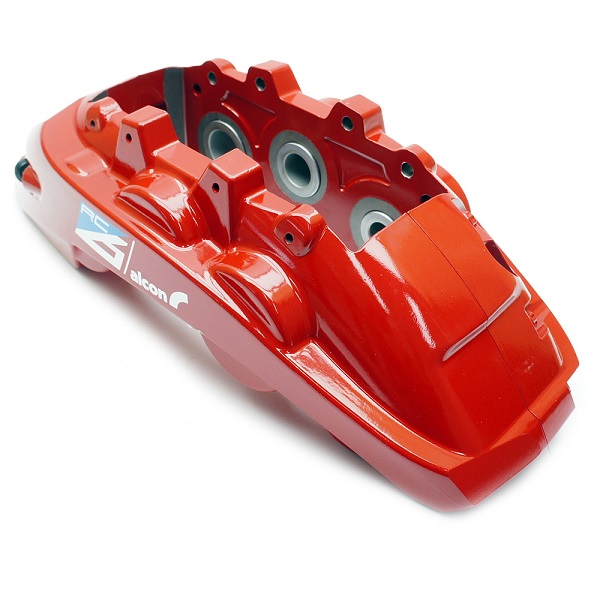

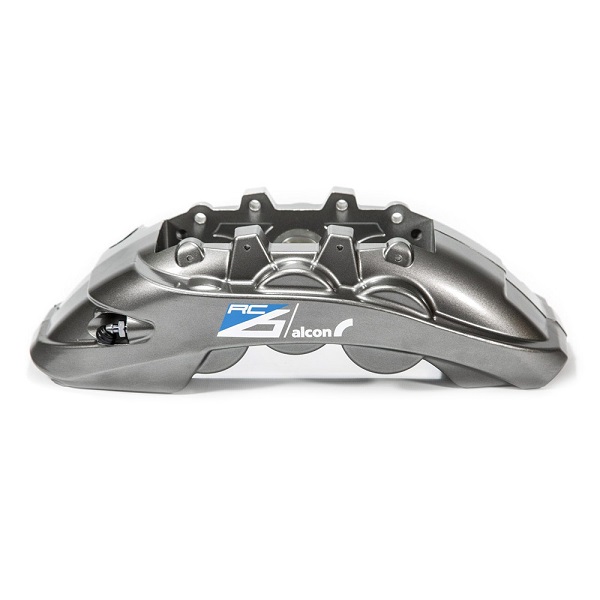

Alcon RC6 calipers which are beautifully machined from forged alloy, and with staggered pistons for smooth and high strength engagement.

• Increased pad area reduces temperatures and increases pad life
• Steel staggered pistons in order to ensure even pad wear
• Stainless steel pistons as standard for improved resistance to thermal conductivity
• Pin mounted pads for quicker and easier pad change

DBA Discs

Sharing all the benefits of the 4000 Series, DBA’s 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional precise CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs. DBA’s 5000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, club racing, rally cars and armoured vehicles.

DBA 5000 T3 Features:

• 2-Piece Design with Aerospace grade aluminium hats (T6061-T6)
• Kangaroo Paw 144 diamond and tear drop pillar ventilation system
• T3 Slot 48 precision CNC machined slots
• XG150 High Carbon Alloyed Iron
• Thermographic Temperature Monitoring

Brake Pads

Brake pads are not included as this allows the end user to select an appropriate compound to suit their driving application.

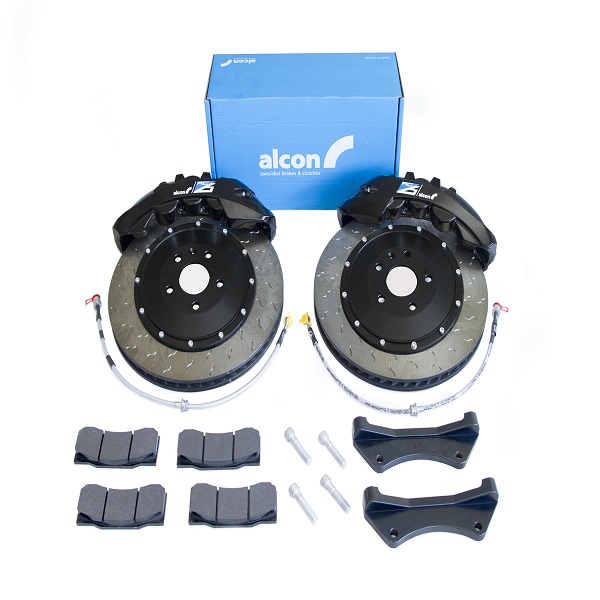

What’s in the Box

• Special alloy disc and bell assembly
• CAR70 6 piston caliper
• Brackets and fixings
• Brake Lines
