ARTITEQ Click Rail PRO Gallery Hanging Set 200cm max. 50kg/m

ARTITEQ Click Rail PRO Gallery Hanging Set 200cm max. 50kg/m (Qty 1)

The Click Rail PRO Set is a heavy duty picture hanging system designed for use with a variety of hooks and wires. Its core functionality lies in its straightforward installation: the rail is mounted to the wall with small clips that are screwed into place, after which the rail simply “clicks” over them. This design provides a clean, professional finish with no visible screws. Once installed, the system allows you to effortlessly add or remove hanging wires anywhere along the length of the rail, offering complete flexibility in the placement of artwork without the need to drill additional holes in the wall. This adaptability makes it a practical solution for both home and gallery settings.

What’s included

ARTITEQ Click Rail PRO 200cm max. 50kg/m (Qty 1)
End Cap (Qty 2)
Installation Bracket (Qty 6)
Screw 3.5mm 45mm (Qty 6)
Wall Plug 6mm (Qty 6)
Twister Hanging Wire 2mm perlon max. 25kg (Qty 3)
Ratchet Hook max. 15kg (Qty 3) OR Micro Grip Hook max. 20kg (Qty 3)

The PRO

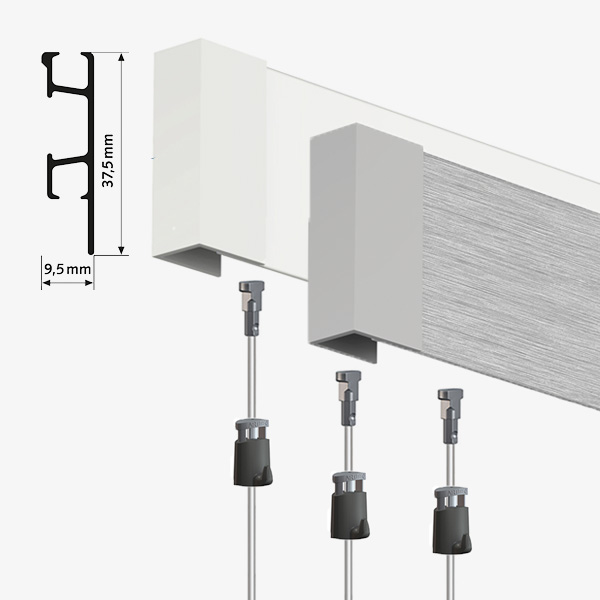

ARTITEQ Click Rail PRO Gallery Hanging Set is available in two-meter length. ARTITEQ rails are made from durable aluminium and can be cut to size with a hack saw. End caps protect rail ends. End caps have a small gap in them for connecting wires. It means you can install the rail snugly wall to wall if needed. Please ensure you leave 6mm on each side for the end caps when cutting.

Two finishes

ARTITEQ Click Rail PRO Art Hanging Set is available in 2 finishes: a pure white and brushed grey. The rail can be cut to size with a metal saw (~2 minutes per rail). The Click Rail PRO takes up to 50kg of weight per meter. If you fit rails side by side, install one of the brackets behind where the two rails join. This will align them nicely on your wall. Other brackets should be fitted every ~40cm/8in. The installation involves drilling three holes per rail meter (6mm drill). There is no other DIY required after that is done.

The white version happily accepts most types of paint so that you can match its colour with your walls. You can also fit it as-is. If you have any questions or need more information about this picture hanging system, please don’t hesitate to contact us.

Corner connector

If you intend to install the Click Rail PRO around corners, you will need to add Corner Connectors (not included in the set) to your order. They work as an inside and an outside connector. It is hardly visible when used as an inside connector as it is placed behind the rails. This connector allows you to slide wires around corners without disconnecting them. Available in white, black and grey.

Hanging wires

Perlon wires are made of 2mm transparent nylon. They are solid and can take up to 25kg of weight each. We recommend using two wires per frame if you hang heavier or larger paintings. Perlon wires tend to blend nicely with your wall. As a result, they are hardly visible. If the wire is too long, you can cut it with a sharp knife or coil it behind the frame if you need a longer wire in the future.

Picture hooks

The Ratchet is so-called a self-locking hook. It means it doesn’t have a screw. To reposition it on the wire, you must press its top and bottom between your fingers. On release, it will stay firmly in place. The hook has a 2mm hole for threading a wire through it. We recommend using two hooks per frame if you hang heavier or larger paintings. You can use several hooks on a single wire up to its maximum capacity of 15g.

the Micro Grip hook represents the newest generation of hooks. It is made of high-quality plastic reinforced with fibreglass leading to a 70% reduction in the use of materials compared with previous generations of this hook. In addition to the ecological advantages, the hook is extremely lightweight as a result and very easy to use. The Micro Grip hooks are strong and ergonomically designed. They can take up to 20kg of weight and can be used with 2mm perlon or steel wires.
