ARTITEQ Top Rail Art Hanging Set 200cm max. 20kg

ARTITEQ Top Rail Art Hanging Set 200cm max. 20kg

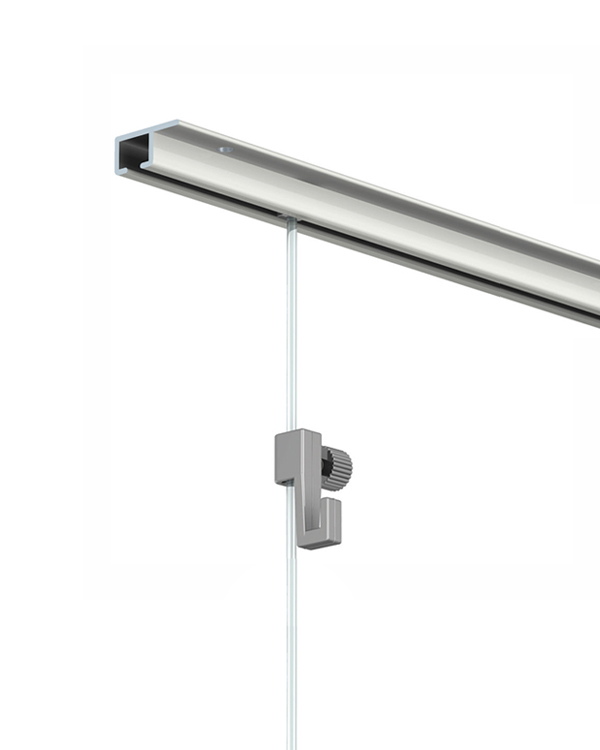

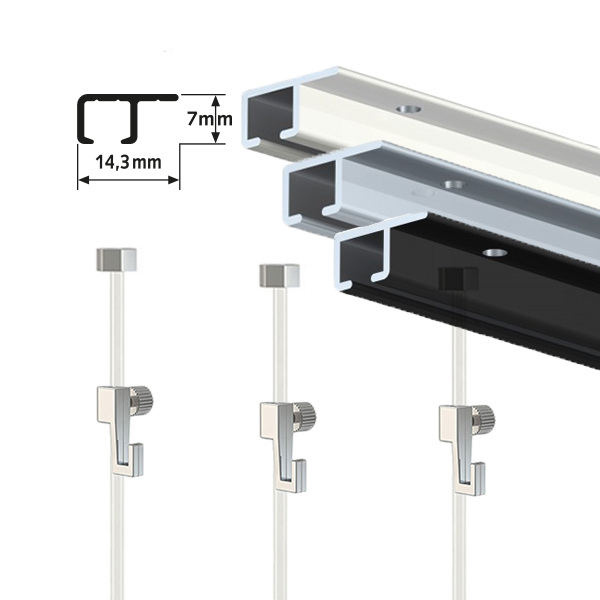

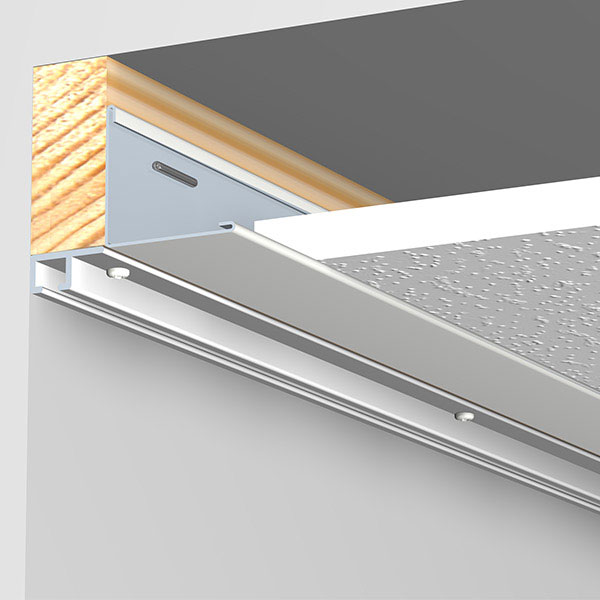

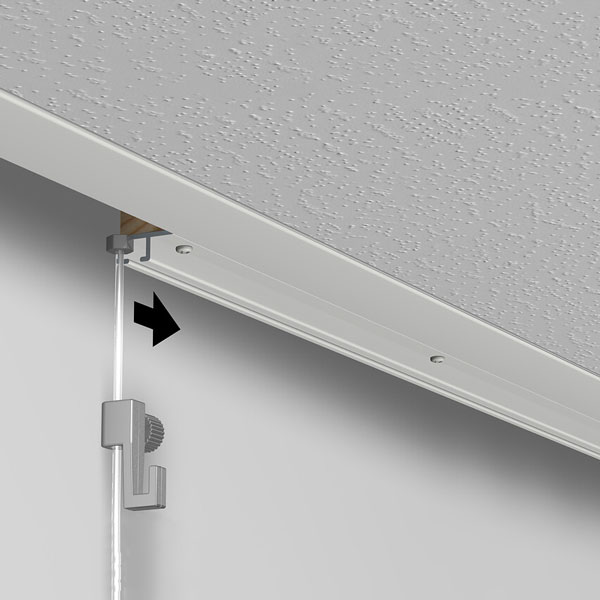

The Art Hanging Set provides a complete system for picture hanging, comprising one ARTITEQ Top Rail, three Hexagon Hanging Wires, and a choice of three Mini Hooks or Heavy Brass Hooks. The ARTITEQ Top Rail is characterised by its compact design, making it one of the most discreet rail systems available. Its installation is versatile, suitable for direct mounting onto wooden, concrete, and recessed or suspended ceilings. Specifically, when affixed to the wooden edge trim of a suspended ceiling, the Top Rail integrates seamlessly with the surrounding architectural elements.

What’s included

ARTITEQ Top Rail 200cm max. 20kg/m (Qty 1)
Screw 3.0mm 10mm (Qty 16)
Wall Plug 4mm (Qty 16)
Hexagon Hanging Wire 150cm 2mm perlon max. 20kg (Qty 3)
Mini Hook max. 4kg (Qty 3) OR Heavy Brass Hook max. 7kg (Qty 3)

Wires and hooks

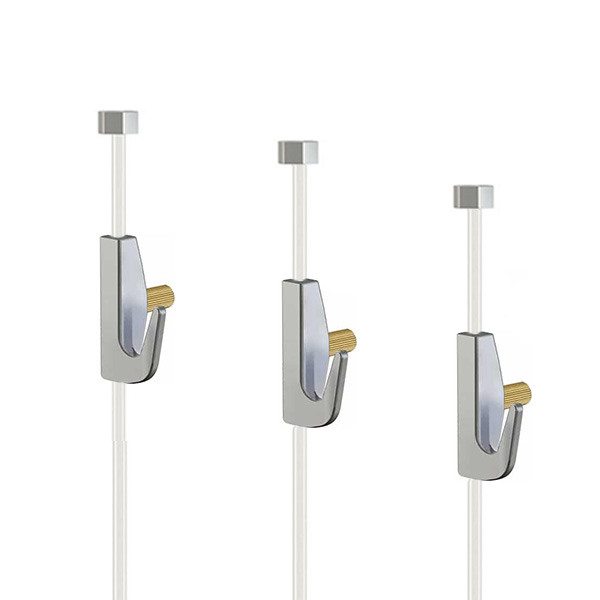

The Hexagon Wires serve as suspension cables, attaching via either end of the Top Rail. These wires are compatible with Mini Hooks, which offer a weight capacity of up to 4kg, and Heavy Brass Hooks, capable of supporting loads up to 7kg. For the secure hanging of larger or wider picture frames, the use of two hooks is advised, effectively doubling the overall maximum weight capacity.

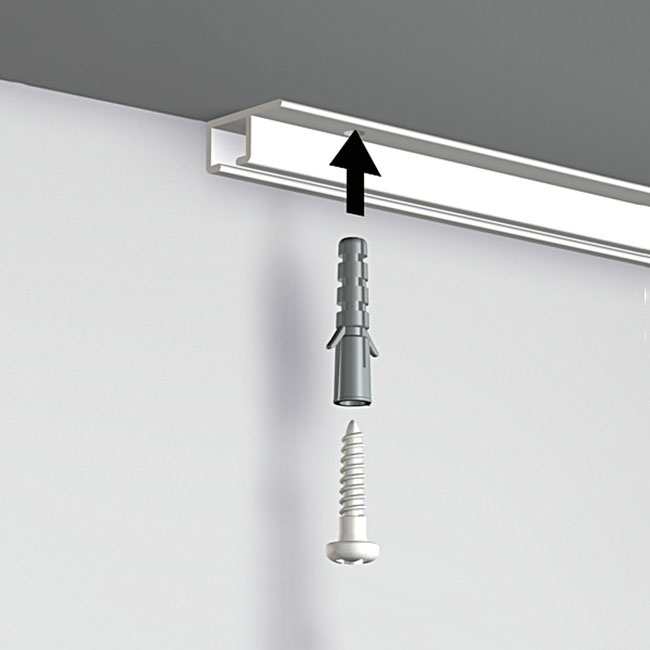

How to install

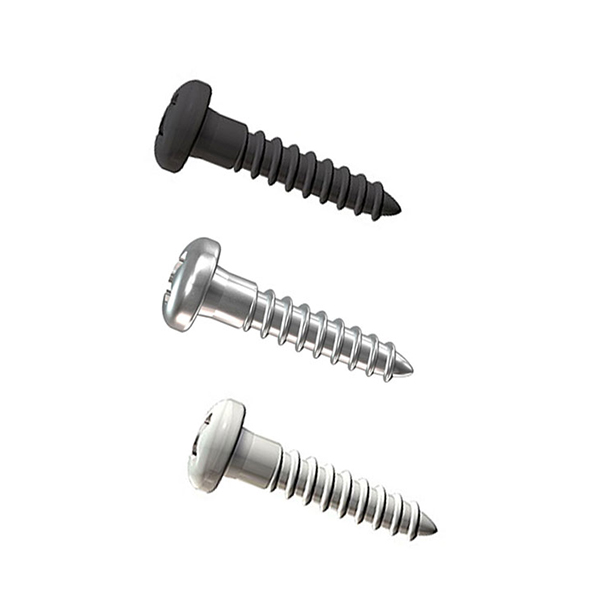

The installation kit includes sixteen plugs and sixteen screws. The screws feature a powder-coated finish in white or black to coordinate with the corresponding rail colour. For the grey rail, the screws provided are in steel finish.
