External Gate Turbo Hotside Kit suitable for 1FZ-FE

HD Auto 1FZ-FE Hotside Kit, – Suited for High Horsepower applications, this kit features a 6BOOST High mount manifold, Pulsar Next GEN turbocharger, Turbosmart 50mm Pro-Gate and essential components for Fitting the turbocharger – Fabrication required to install

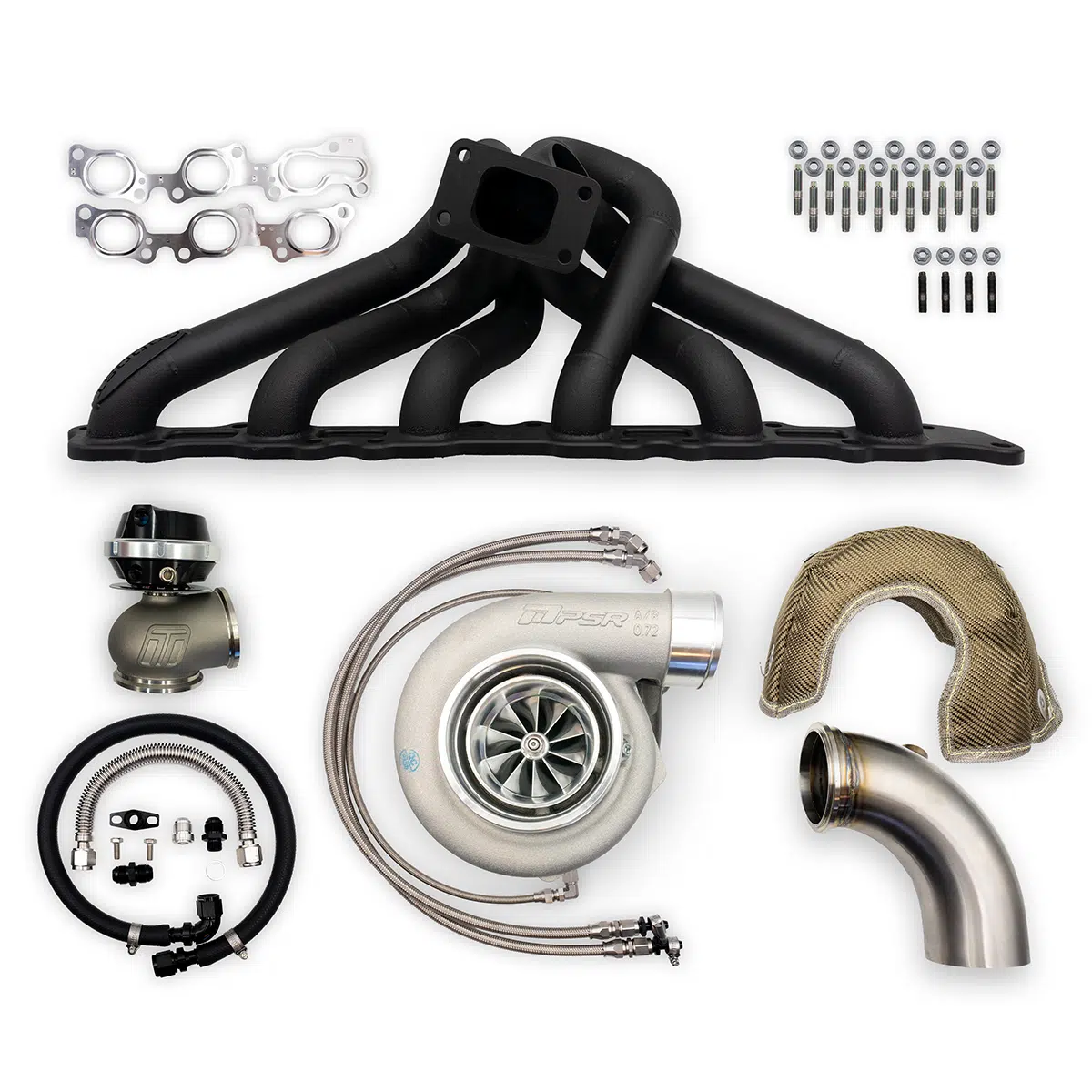

What’s Included:

• PSR3582R External Gate Turbocharger
• 6BOOST T3 High Mount Manifold
• Turbosmart 50MM ProGate
• Oil Line, Water Line Fitting Kit
• Gaskets, studs and nuts
• Short Vband dump pipe
• Raceworks Turbo Beanie

Additional Items You May Need:

Turbocharging your 1FZ petrol engine correctly requires additional components such as a Fuel system upgrade, Aftermarket ECU, Intercooler, Ignition upgrade Clutches, and more.
Contact our sales team for any help needed choosing the right components

We have a helpful guide listed below:
https://hdautomotive.com.au/2024/01/17/definitive-guide-to-1fz-fe-turbo/

Turbocharger Information:

• New Aerodynamic 10 Blade Billet Compressor Wheel for increased airflow
• New Aerodynamic 9 Blade Turbine Wheel for reduced weight and higher flowability
• Genuine dual ceramic ball bearing system for durability
• Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet

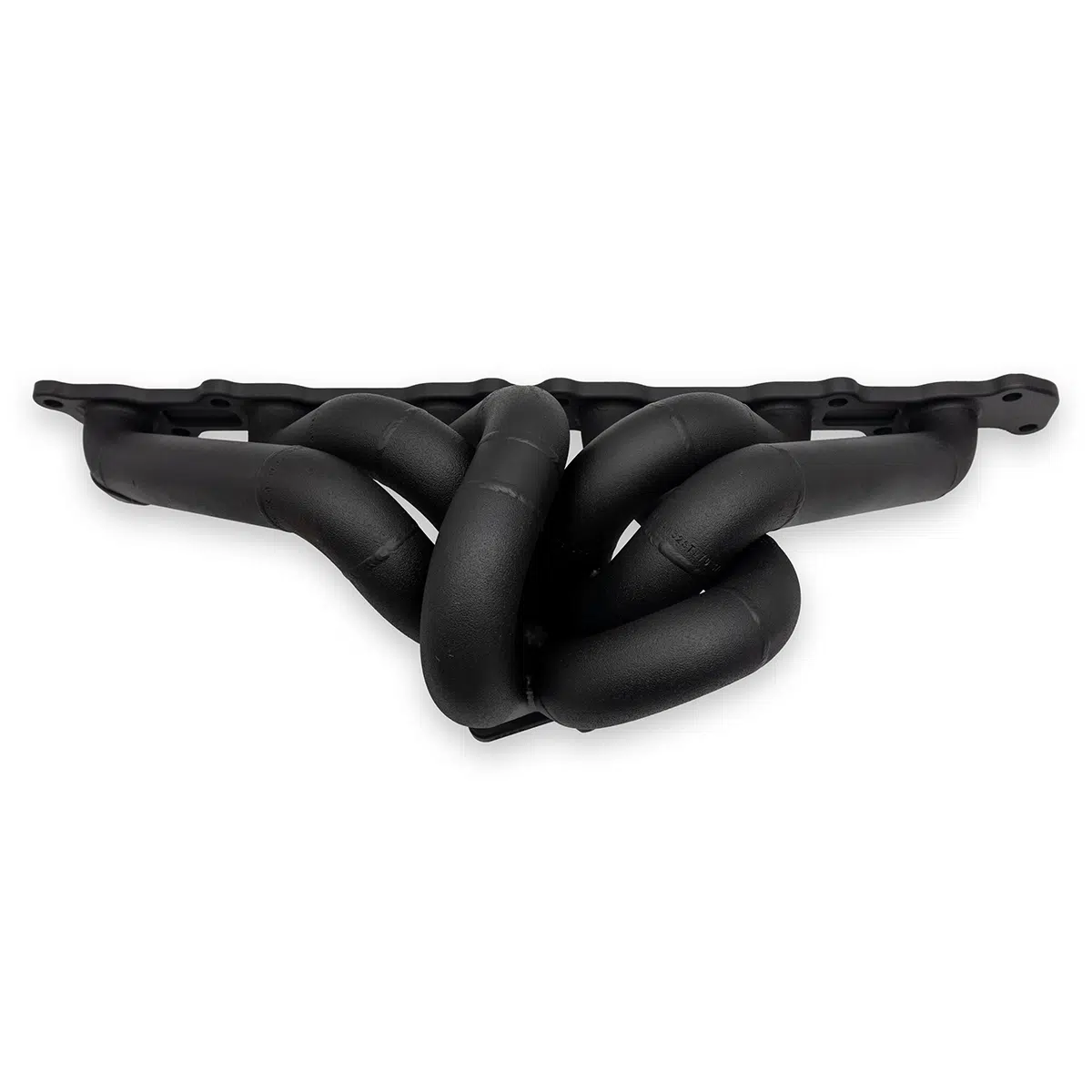

Manifold Information:

• Australian-designed and hand-crafted in Brisbane, QLD
• Fully TIG welded for durability
• High mount, High performance collector design

Frequently Asked Questions (FAQs):

• Q: How does this compare to the J-pipe kit?
  A: This kit is suitable for high performance applications, but requires more custom work to install and set up.
• Q: What PSI wastegate does it run?
           A: It runs a 7PSI Minimum wastegate spring, and additional springs to change that base setting. To increase boost pressure further, a Boost Controller is required.
• Q: Do I need to run water lines to the turbo?
           A: Yes, the turbochargers are water-cooled and must have the water lines connected to maintain warranty and prolong the turbocharger’s service life
• Q: What do I do for wastegate exit?
           A: you have the option of fabricating a ‘screamer pipe’ or Plumbing the wastegate back into your dump pipe

Please note that occasionally, there may be backorders of this product, with delays of up to 2 weeks. If you have concerns or deadlines, please contact us to confirm stock availability before placing your order.
