Hybrid EJ25/EJ20 & 2.3 Destroker High Compression Piston Set
£174.40

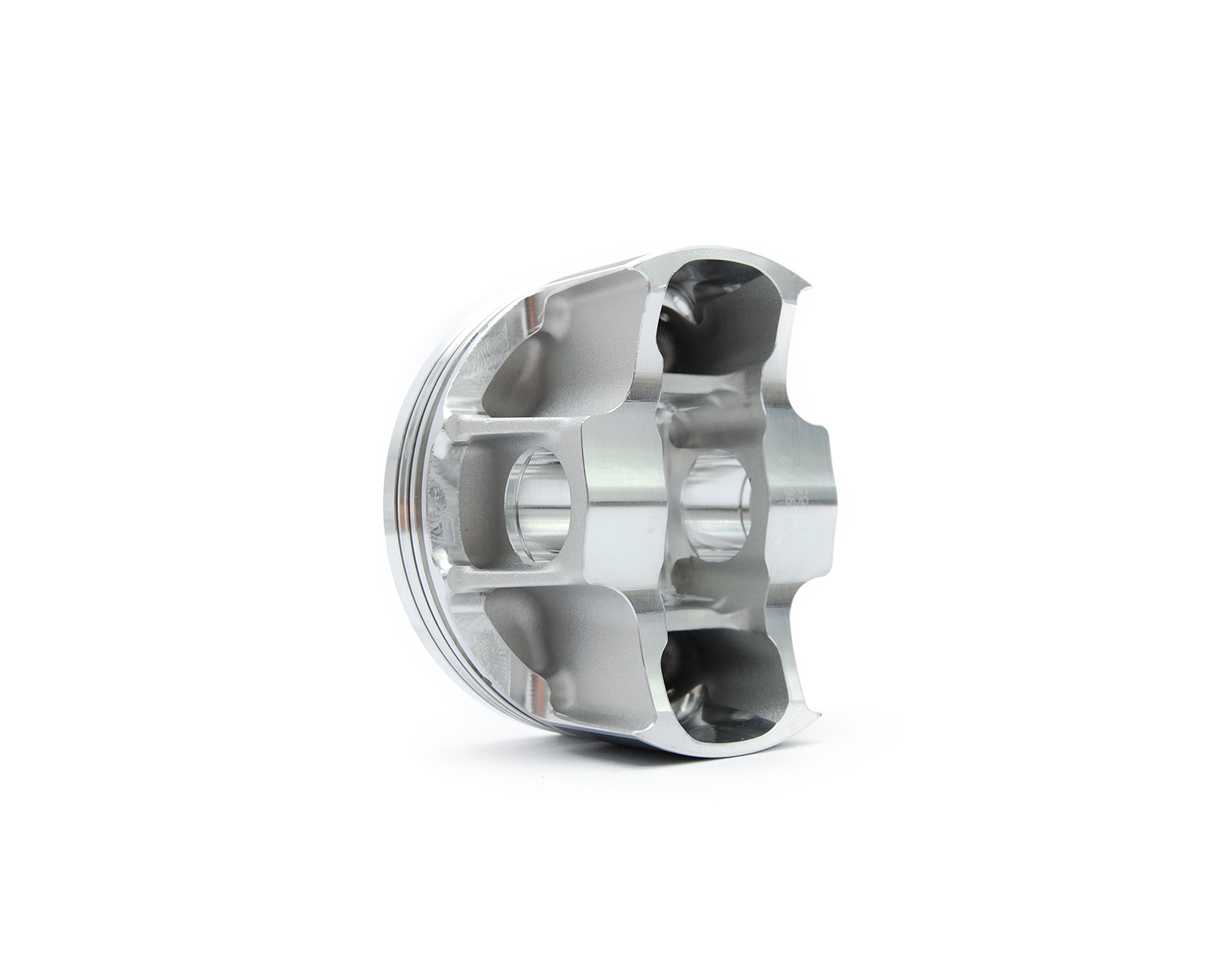

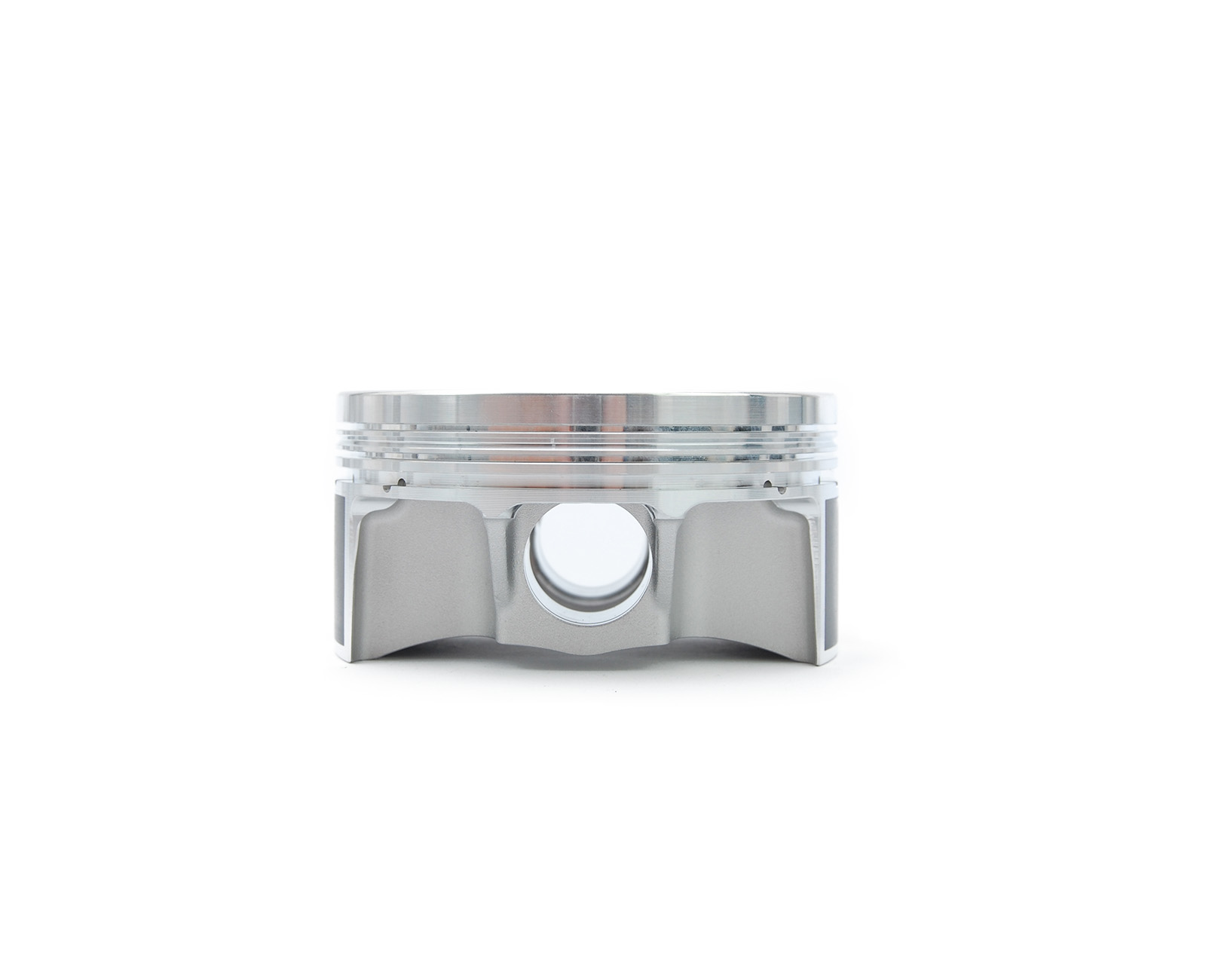

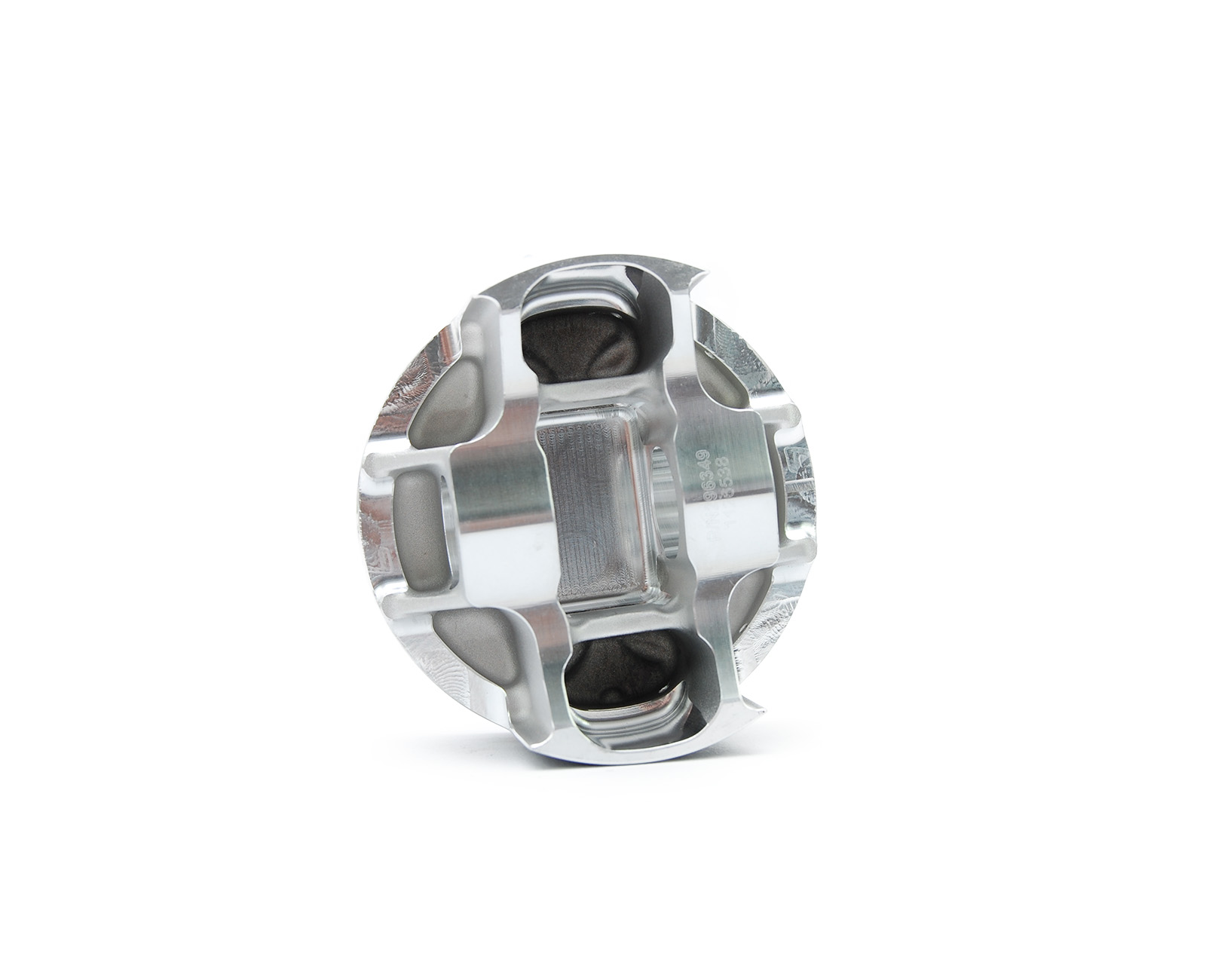

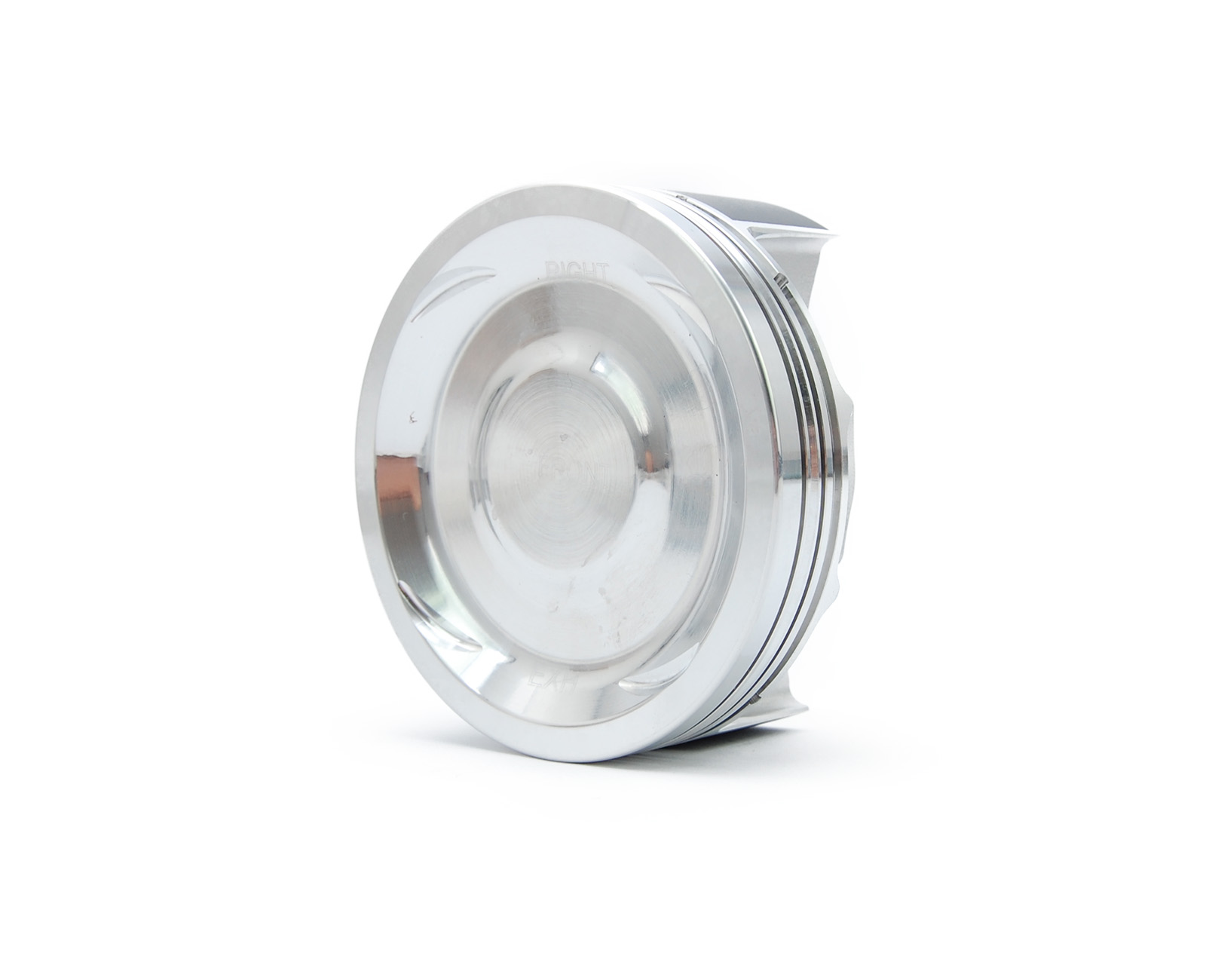

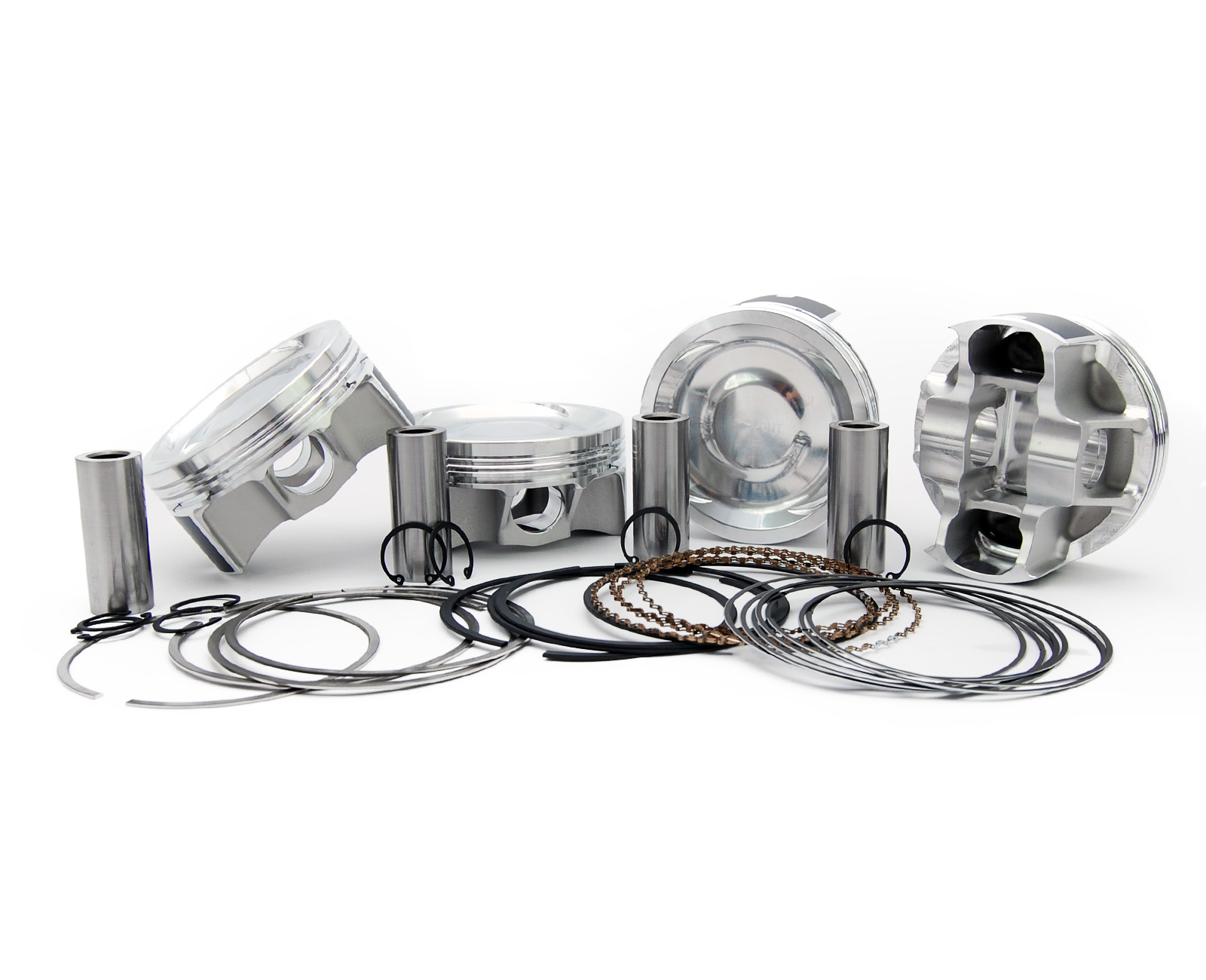

4 x FSR Pistons 99.75mm Bore
4 x Wrist Pins
1 x Proseal Piston Ring Set
8 x Snap Ring Wrist Pin Clips
1 x Data Sheet
TECHNICAL DETAILS!
Bore Diameters 99.75mm,
Compression Height 1.209″/30.7086
Dish Volume 99.75mm -16.7cc
Compression Ratio Range 9.0:1 To 10.0:1
Wrist Pin Material 5115 Steel
Piston Material 2618
Average Weight 414g Each
Cylinders will need to be Honed/machined to accept these new pistons
Hybrid Ej25 Engine builds using EJ20 Cylinder Heads
All Subaru EJ25 Short Engines using EJ20 Cylinder Heads With Ej25 79mm Crankshaft & 130.5mm Standard Con Rods. No machine work will be needed for the combustion chambers when using these pistons
Destroker Ej25 Engine Builds
All Subaru EJ25 Short Engines Using EJ20 Cylinder Heads With 75mm Crankshaft & 132.5mm Con Rods To Create a destroker EJ23. Destroker CC Estimated Specs 99.75mm 2340cc
