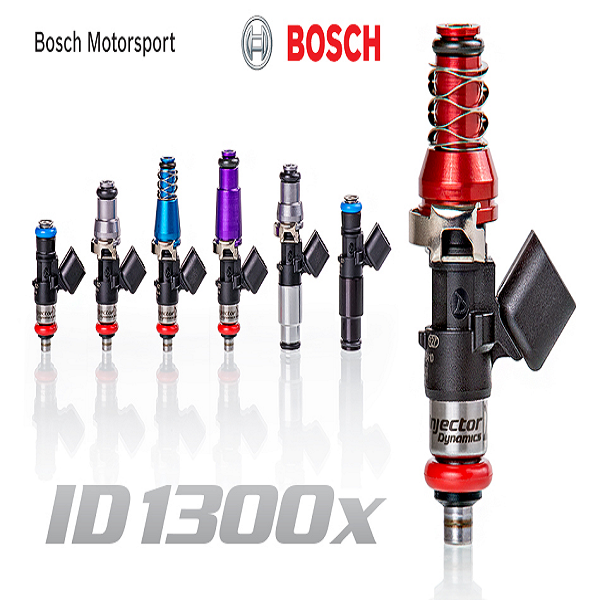

Injector Dynamics ID1300-XDS Fuel Injectors Evo 4-9

The ID1300x is an all new injector, designed in partnership with Bosch Motorsport.

This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs the high-performance tuner.

The ID1300x was designed with alternative fuels in mind, and is the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.

While the ID1300x was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300x has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behaviour under these conditions.

*Injector Dynamics is an Authorized Technical Partner of Bosch Motorsport North America.

Nominal Dynamic Flow Rate – 1340cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 6.0 Bar (87.0 psi)
Electrical Connector – USCAR

In addition to being fully characterized, the low-flow control and tight flow-matching (within +/- 1%) across the pulsewidth range guarantees OEM quality idle and drivability.
