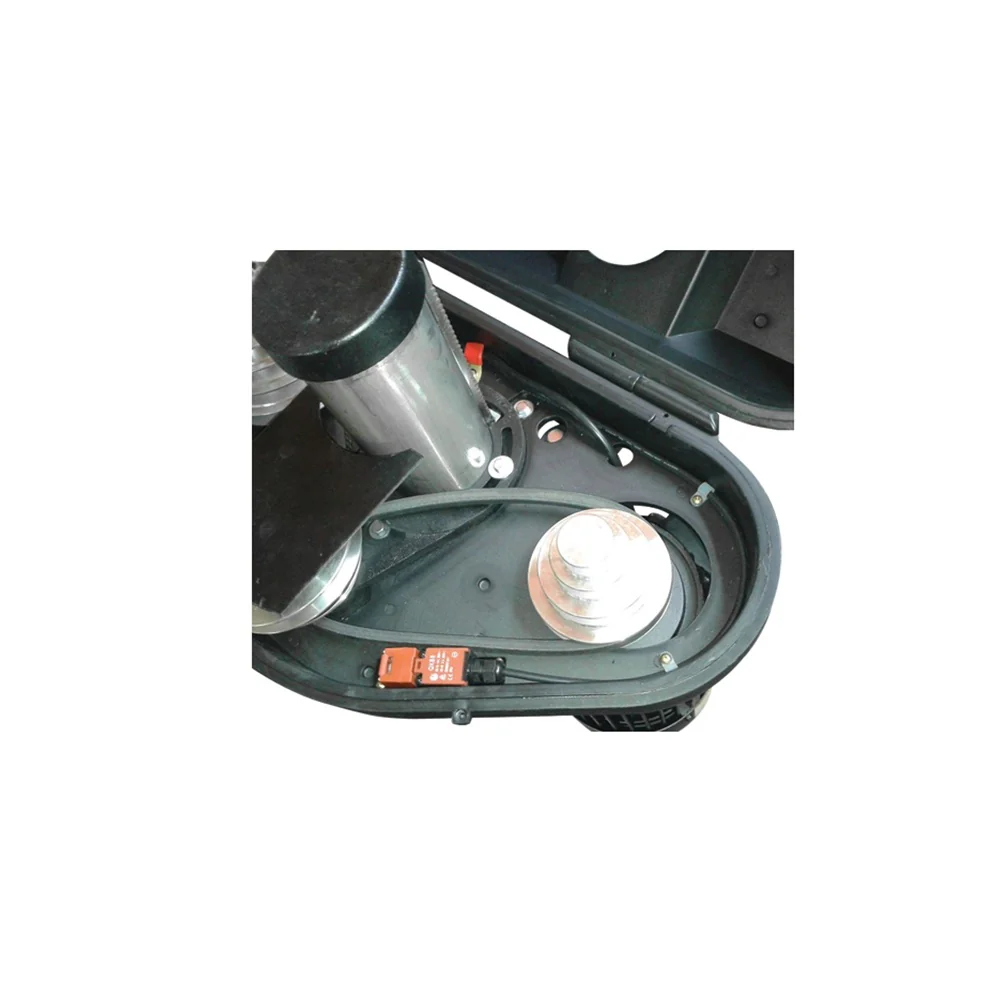

- Safety guard with limit switch protection
- Magnetic line interruption switch needs a restart after a power failure
- Spindle is equipped with four heavy-duty tapered roller bearings
- Table control hand wheels have large micrometer dials graduated in .001″
- Head swivels 360° and is easily raised and lowered
- Comes with 3″ face cutter, 1/2″ chuck with key, 3-1/2″ angle vise and safety guard
Voltage: 220 V
Amperage: 11 A
Table Size: 8-1/4″ x 28-3/4″
Spindle nose to table distance: 18-7/8 “
Swing: 16-1/2 “
Taper, Spindle: R8
Stroke Length: 5 “
Column: 4-3/4″ dia
RPM: 12sp. 150-2500 RPM
Capacity, face milling: 3 “
Capacity, endmill: 3/4
Capacity, drilling: 1-1/4 “
Table t-slot: 5/8 “

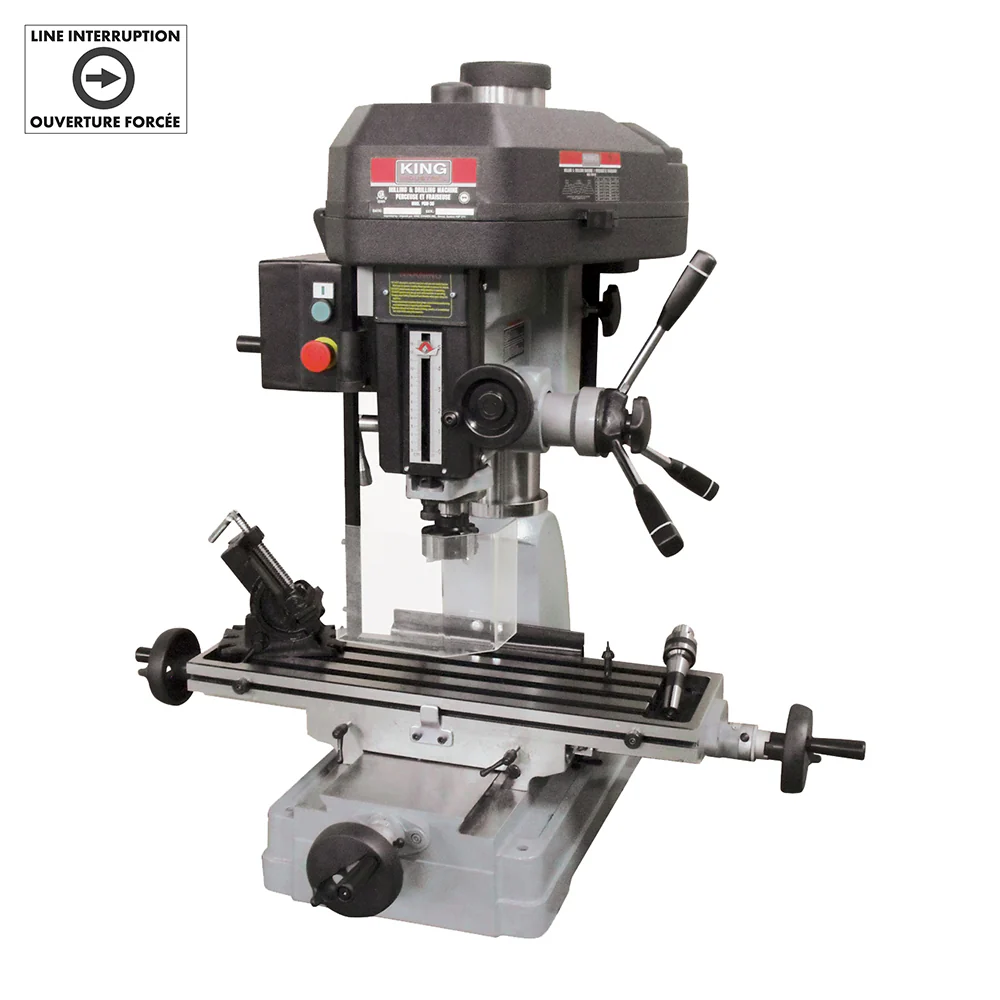

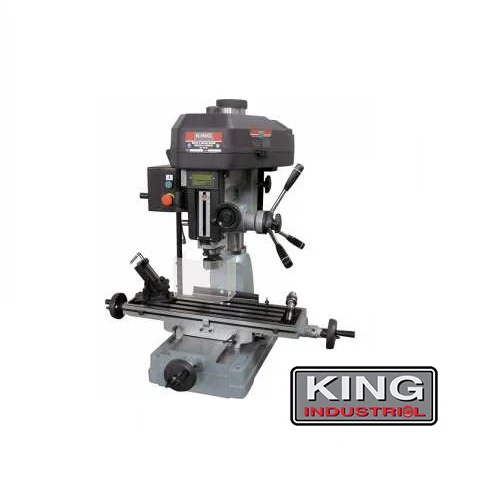

Machine includes 3″ face milling cutter, 1/2″ chuck with key, 3-1/2″ angle vice. Head swivels 360 deg and is easily raised/lowered. Handwheels are graduated in .001″ increments. Spindle runs on four heavy-duty tapered bearings.
Be the first to review “King PDM-30 1-1/4″ Milling Drilling Machine”
