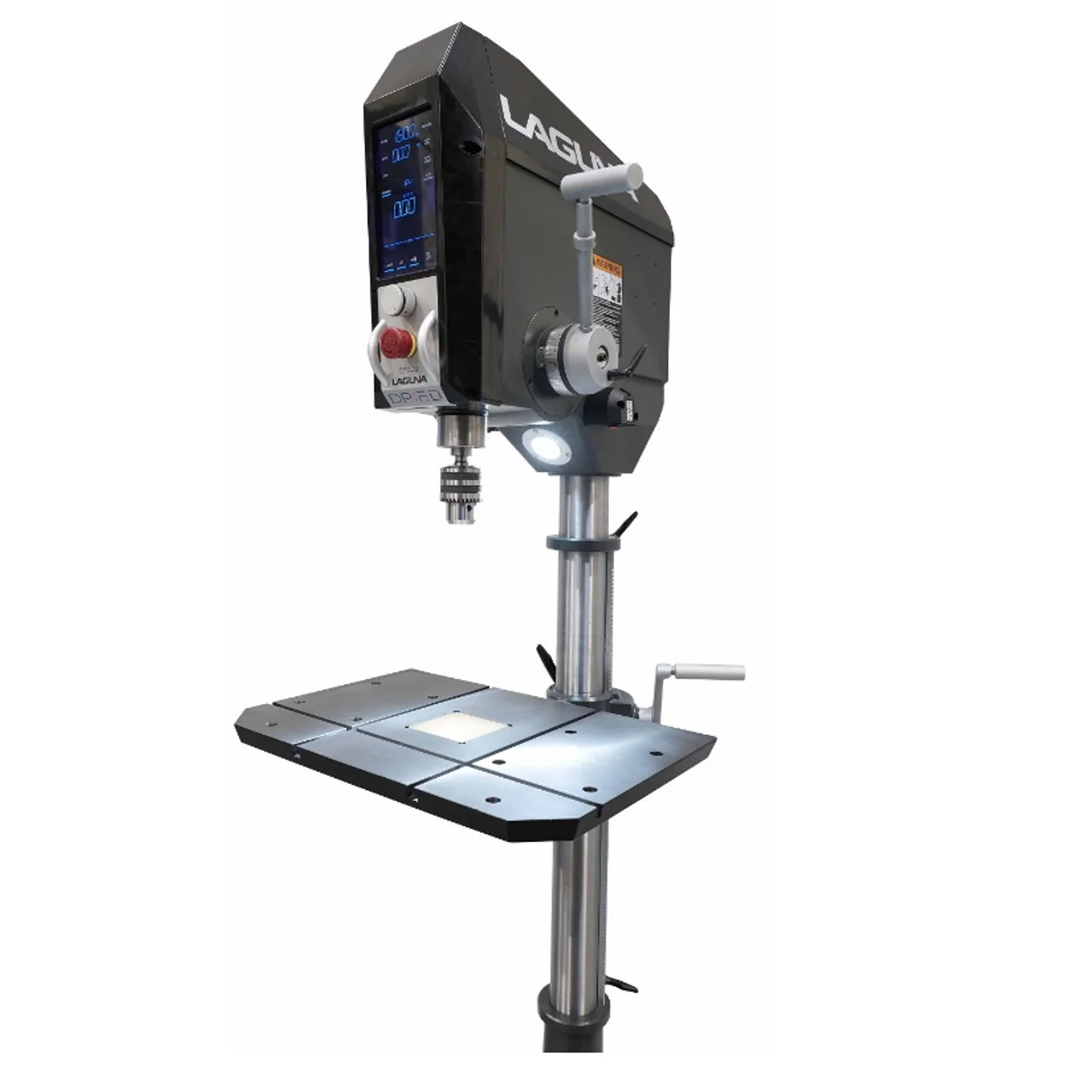

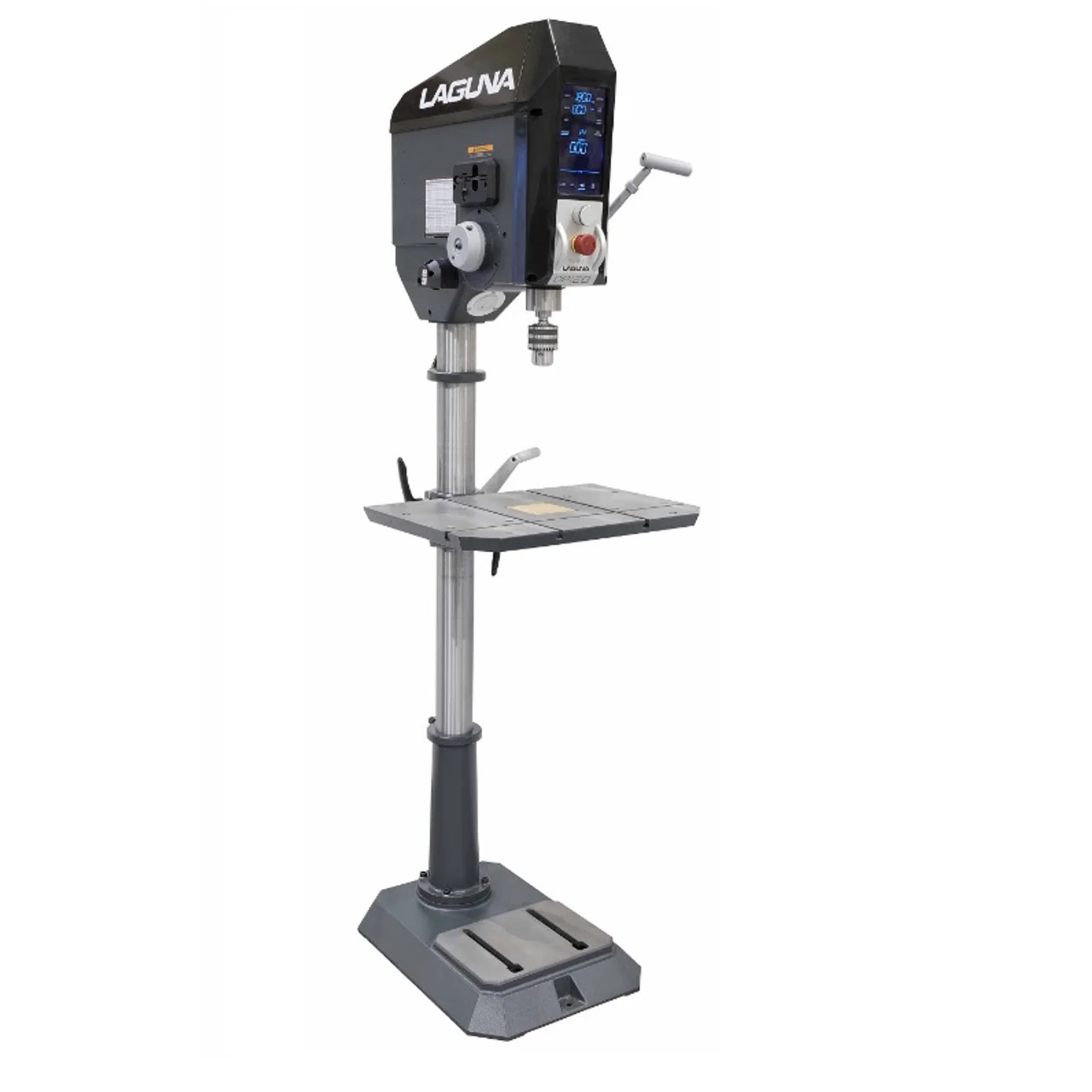

Laguna DP:20 20″ Touchscreen Electronic Drill Press

Introducing the new Laguna DP:20 Floor Drill Press, a revolutionary machine that sets a new standard in industrial drilling. Designed for the most demanding applications, the DP:20 combines unmatched power, precision, and cutting-edge technology, making it the ideal choice for professionals in woodworking, metalworking, and more.

• Motor 1.5HP, Breaker: 15 amp. min.
• Table, cast iron: 15 x 22 inches
• Table Tilt: +/- 90 Degrees
• Table Swivel: 360 Degrees
• Laser Light: Included
• Working Light: LED, 5W
• Swing: 20 inches
• Spindle Taper: MT2
• Spindle Travel: 6 inches
• Chuck: 5/56 – 5/8 inches
• Spindle Speed Range: 60-3600 RPM (electronic & variable)
• Machine Dimensions (LxWXH) vertical, base footprint: 23-7/8 x 17 x 72.5 inches
• Weight, Net: 304 lbs. (138 kg)

At the heart of the Laguna DP:20 is a powerful 1.5 hp Pulse Width Modulation (PWM) motor, which delivers constant torque across a full speed range from 60 to 3600 RPM. This ensures that whether you’re drilling through wood, metal, plastics, or other materials, the DP:20 provides consistent and reliable power for the toughest tasks.

Laguna DP:20 Floor Drill Press features an advanced Touch Screen Smart Panel with a large 3-3/4 x 6-7/8 inch blue LCD digital readout. This intuitive panel displays real-time information on RPM, load, and quill depth, giving you full control over your drilling operations. The large screen and touch capability make this feature a standout, offering an unprecedented level of convenience and precision.

The DP:20 is equipped with an Auto-Start function that activates the drill press as soon as the quill is lowered, and automatically stops when it is raised. The electronic depth setting and mechanical depth stop ensure perfect, repeatable drilling depths every time.

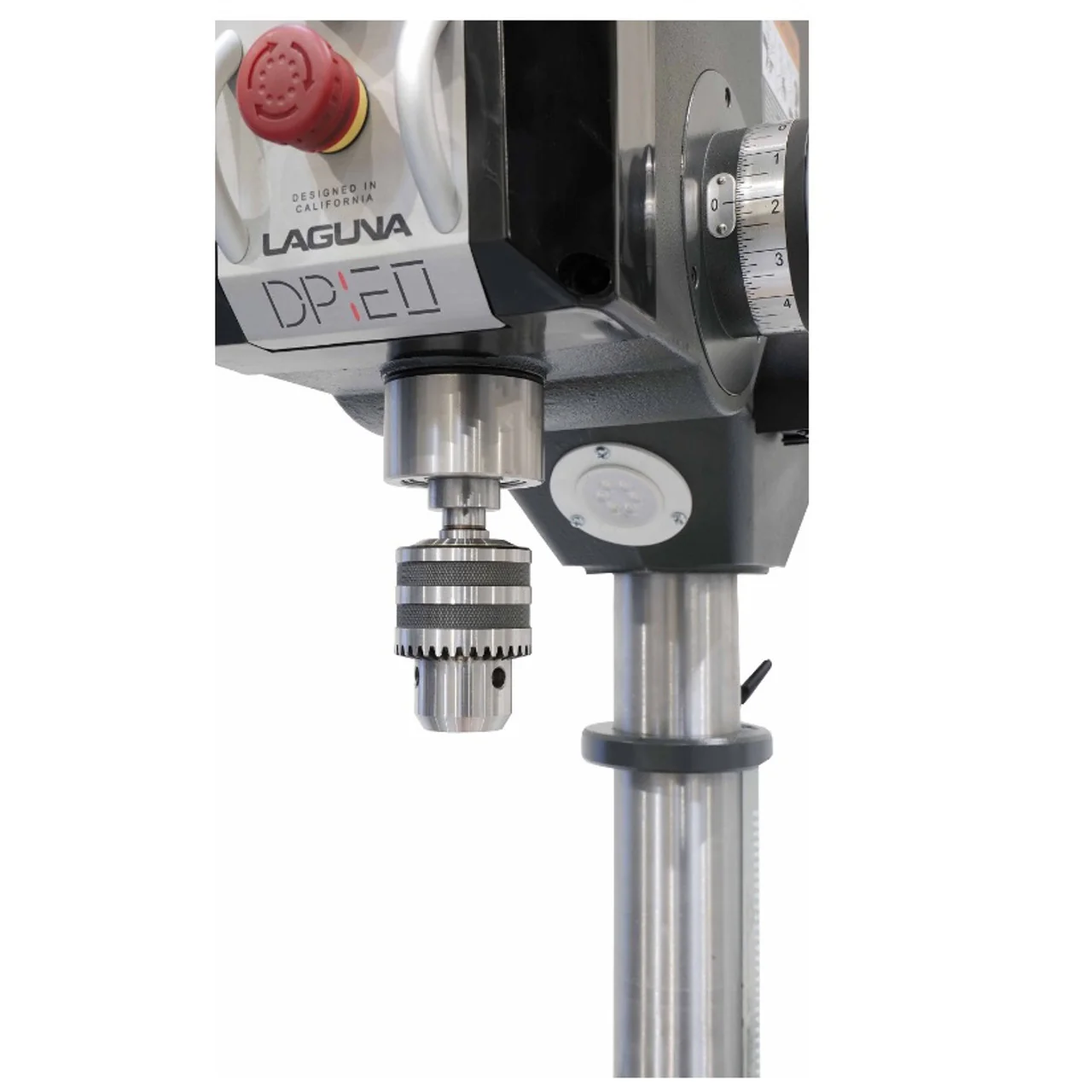

Safety is prioritized with the inclusion of a chuck key holder that has a sensor to lock out the Auto-Start function during bit changes, preventing accidental starts. For tapping thread, the Auto Reverse function is particularly noteworthy, as it automatically reverses the tap when it reaches the preset depth, ensuring precision and ease.

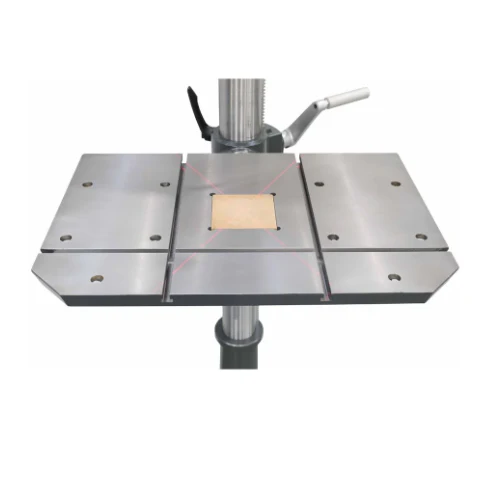

Laguna DP:20’s extra-large 15 x 22 inches cast iron worktable offers exceptional versatility. It tilts left and right up to 90 degrees and can rotate 360 degrees, providing extensive support for various workpieces and multiple clamping options.

Working with the DP:20 is made even easier with the onboard high-output 5W LED work light and crosshair lasers, which ensure precise material positioning and optimal visibility, even in low-light conditions.

The Laguna DP:20 Floor Drill Press stands at the pinnacle of performance and modern design. Experience the future of drill presses with the DP:20 and take your craftsmanship to the next level.
