Laguna P/FLUX III HEPA Cyclone Dust Collector – 3HP

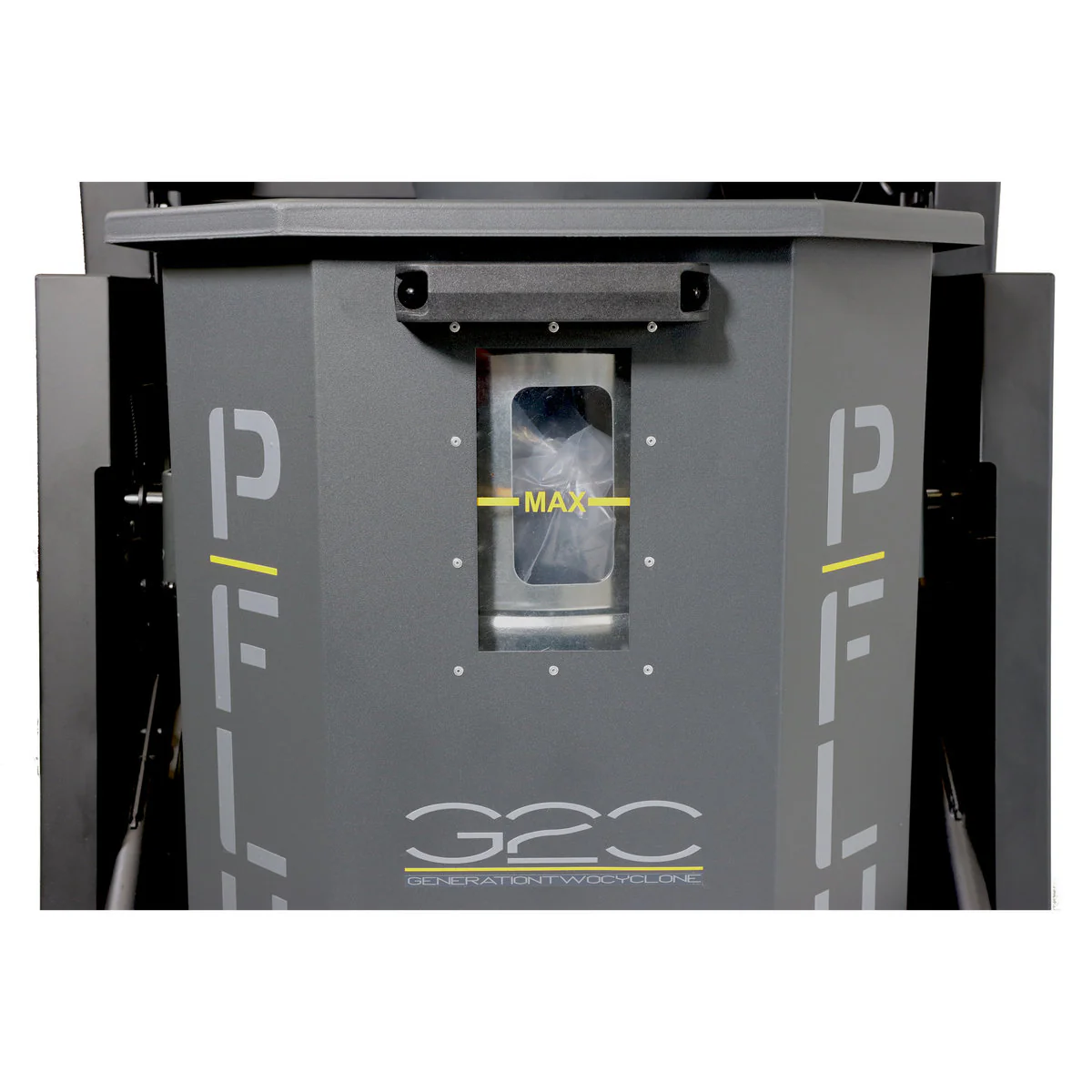

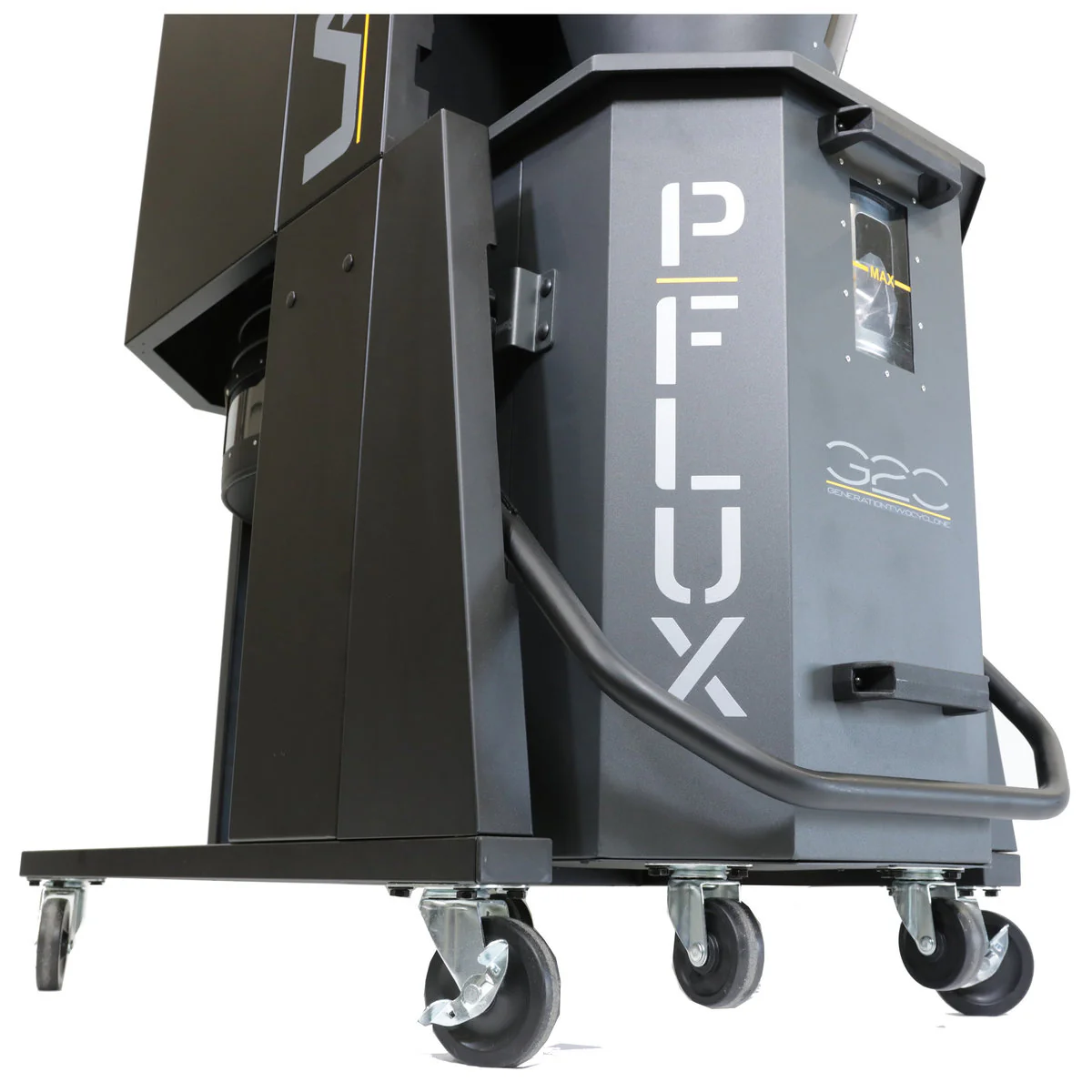

The Laguna P|Flux series features a host of exciting new upgrades, including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46-gallon drum and a bright LED light that illuminates the dust-level viewing window on all P|Flux models. Plus, LED and audio warnings let you know when the drum is full – features that are now standard in this line. Two locking and two 360° swivel casters make shop mobility—and stability—a breeze.

Features:

• 3 HP Motor
• Auto cleaning cycle
• 46 gallon octagonal drum
• HEPA cartridge filter

Specifications:

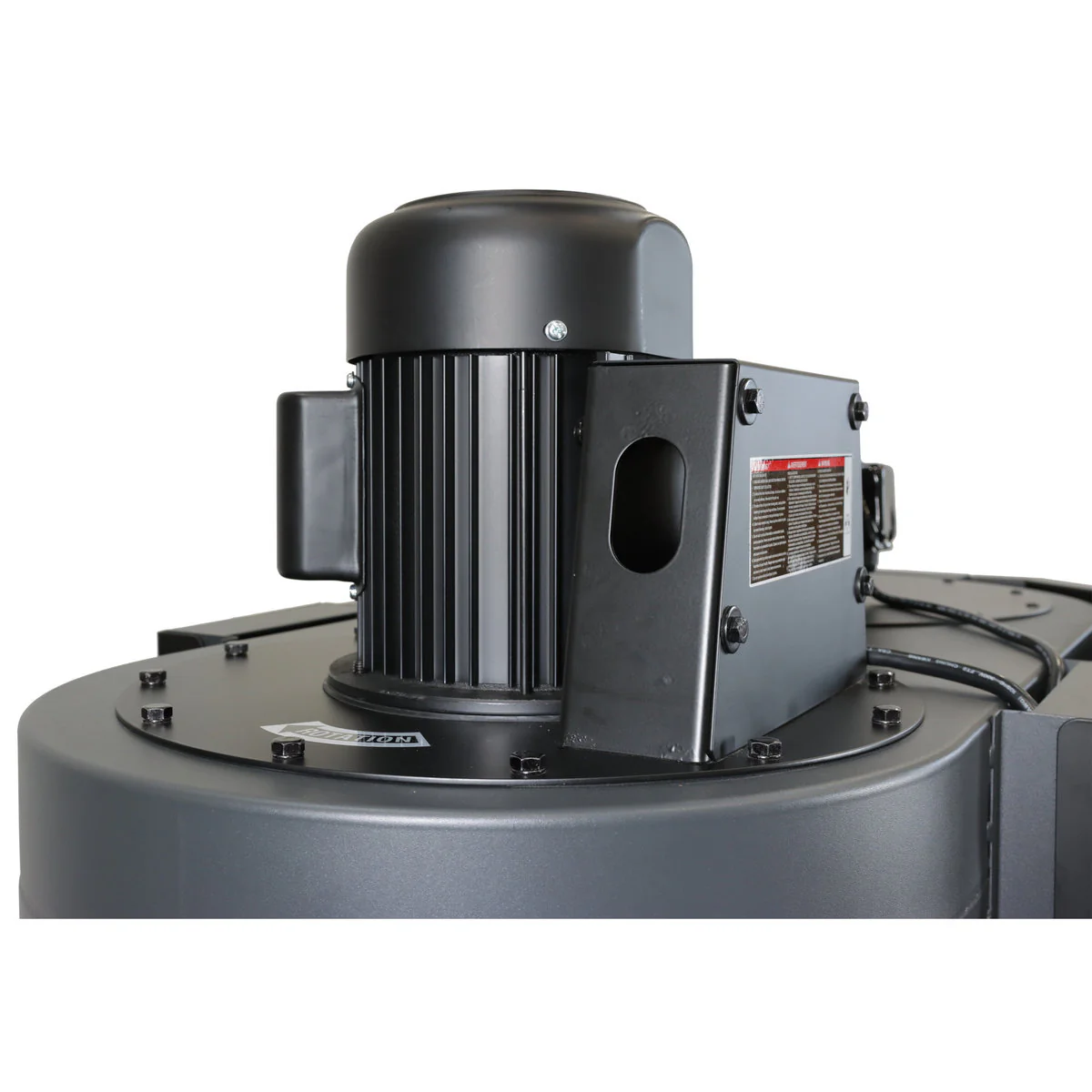

• Motor: 3 HP
• Electrical: 220V, 60 HZ, 1 PH, 3,450 RPM
• Recommended – 30Amp breaker
• Running Amp: (8″ inlet) 22A at 220V
• Air Volume: 1624 CFM (cubic feet per minute)
• Max. Static Pressure: 11.2″ of water
• Fan Size: 15-1/2″
• Inlet: one 8″ or three 4″ ports

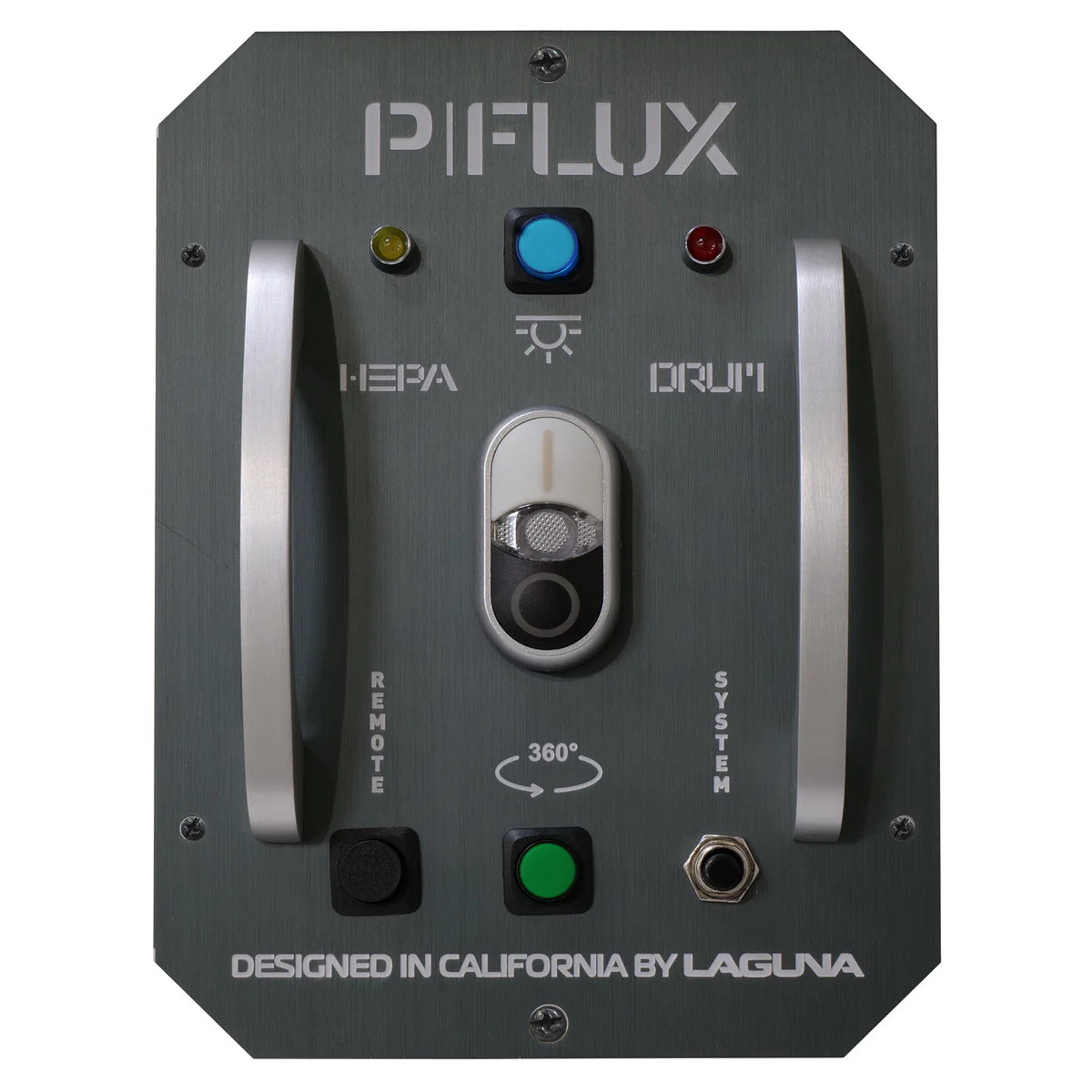

• Switch: high frequency remote control switch

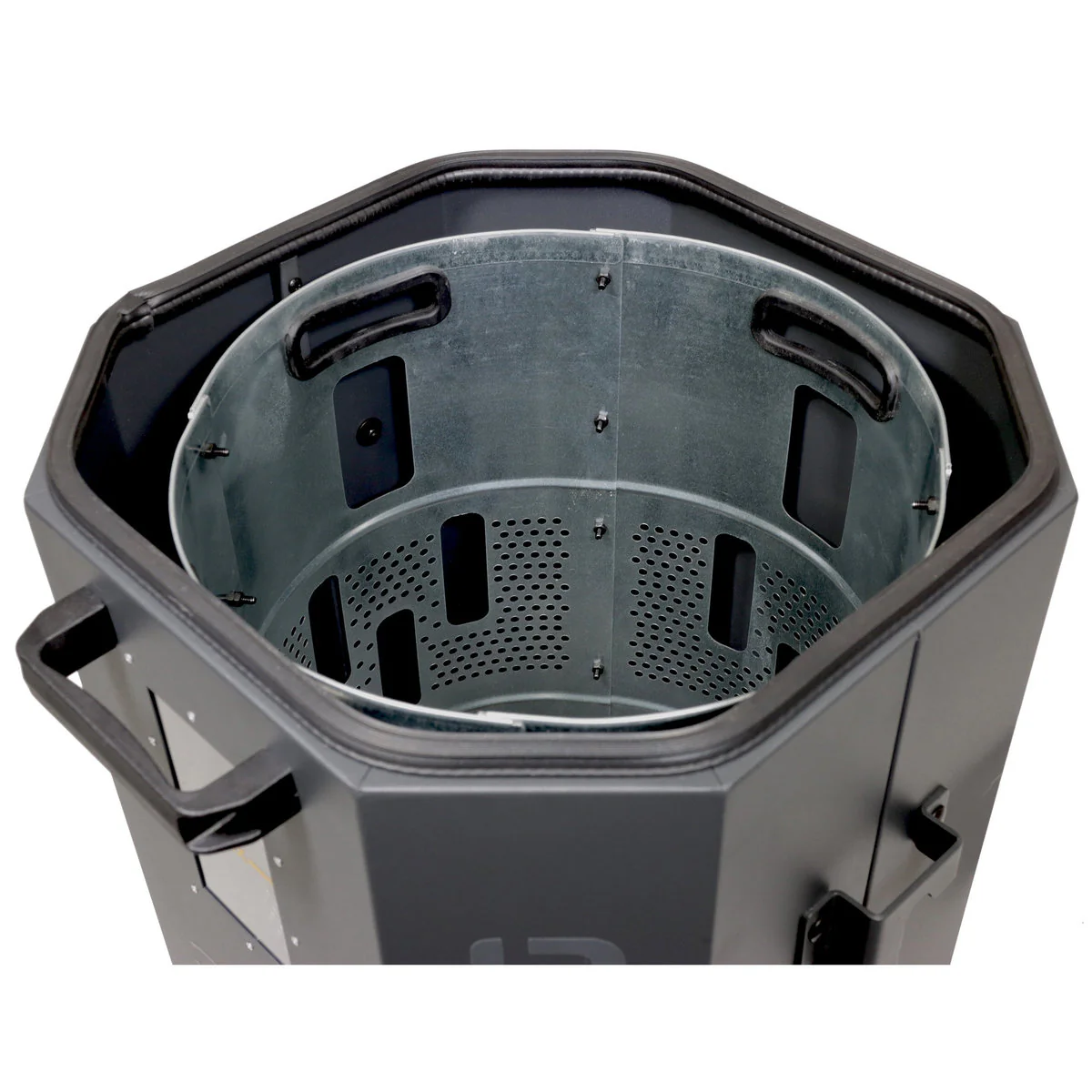

• Collection Capacity: 46 gallon octagonal drum
• Packing Size: (L x W x H) 50″ x 31.5″ x 50.6″ (127 cm x 80 cm x 128.5 cm)
• Machine Weight: 372.6 lbs. (169 kgs)
• Shipping Weight: 441 lbs. (200 kgs)
• Filter Media: filtering area 102 sq. ft. (9.5 m2)
• Cartridge Filter: HEPA 15.74″ x 35.43″ (40 cm x 90 cm) x 1 piece

What’s Included:

• (1) P|FLUX 3 HP Cyclone HEPA Dust Collector
