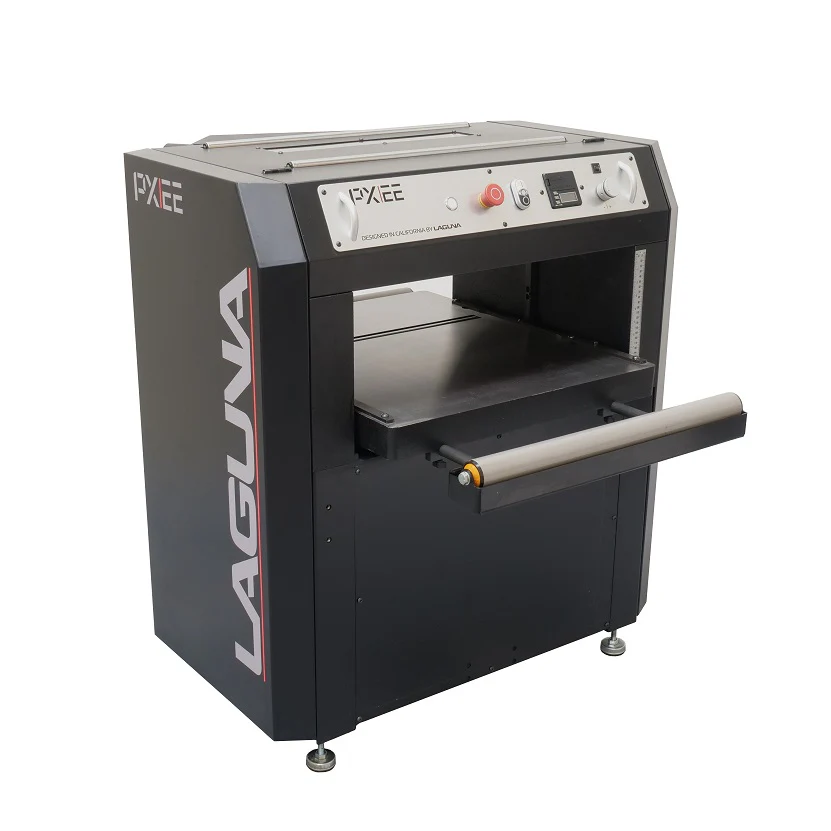

Laguna PX|22 22″ Planer w/ ShearTec II Cutterhead – 7.5HP
£176.47
The all-new PX|22 planers are an innovative new design for Laguna planers. The Laguna PX|22 planers are loaded with features to make woodworking safer and more enjoyable. The PX|22 is available in 2 configurations: 7.5 HP single phase or 10 HP three phase.
- Motor – The PX|22 comes with either 7.5 HP Single Phase or 10 HP 3 Phase motor
- Segmented Infeed Roller – Allows for multiple boards to be fed without having individual boards stall out due to small variations in thickness
- Electronic Variable Speed – Allows users to speed up the material feed for quick thicknessing or to use slower rates for more cuts per This feature is something that is normally found on much more expensive models
- Infeed and Outfeed Rollers – The PX|22 features infeed and outfeed rollers to assist with material loading and feeding and provide a compact
- Digital Readout – The DRO makes setting precise thickness easier

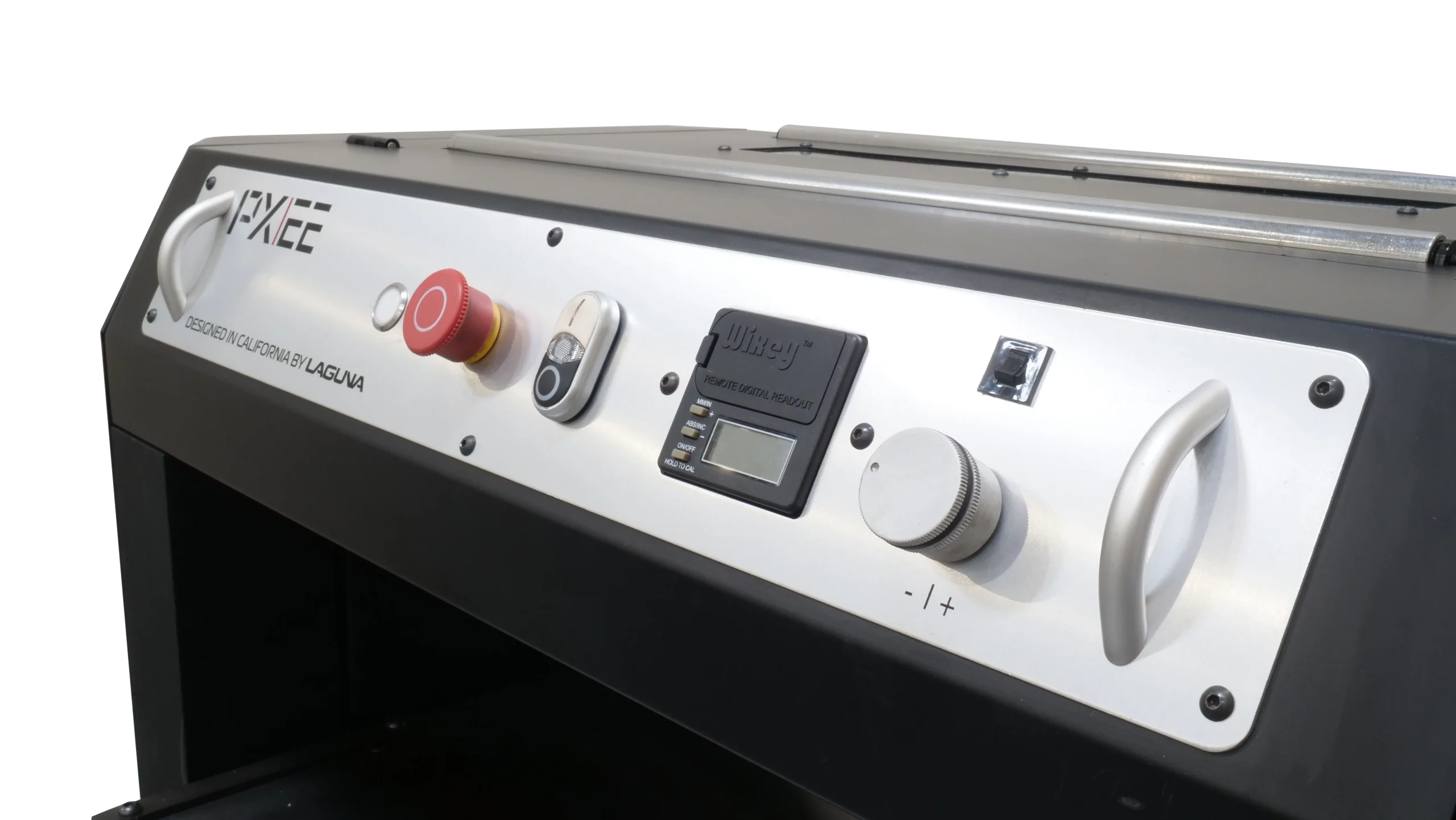

- Ergonomic Control Panel – Machine controls and DRO have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility

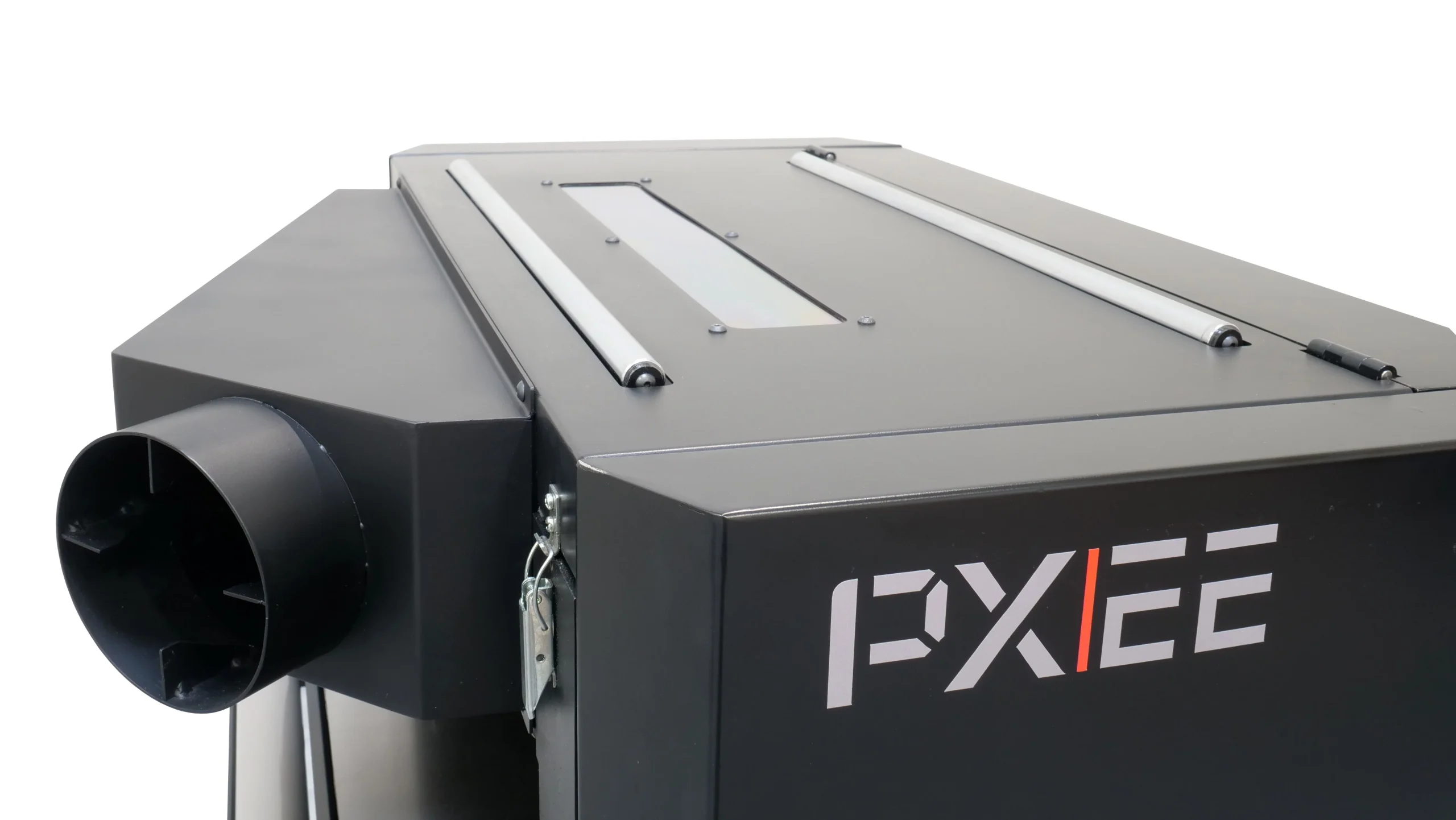

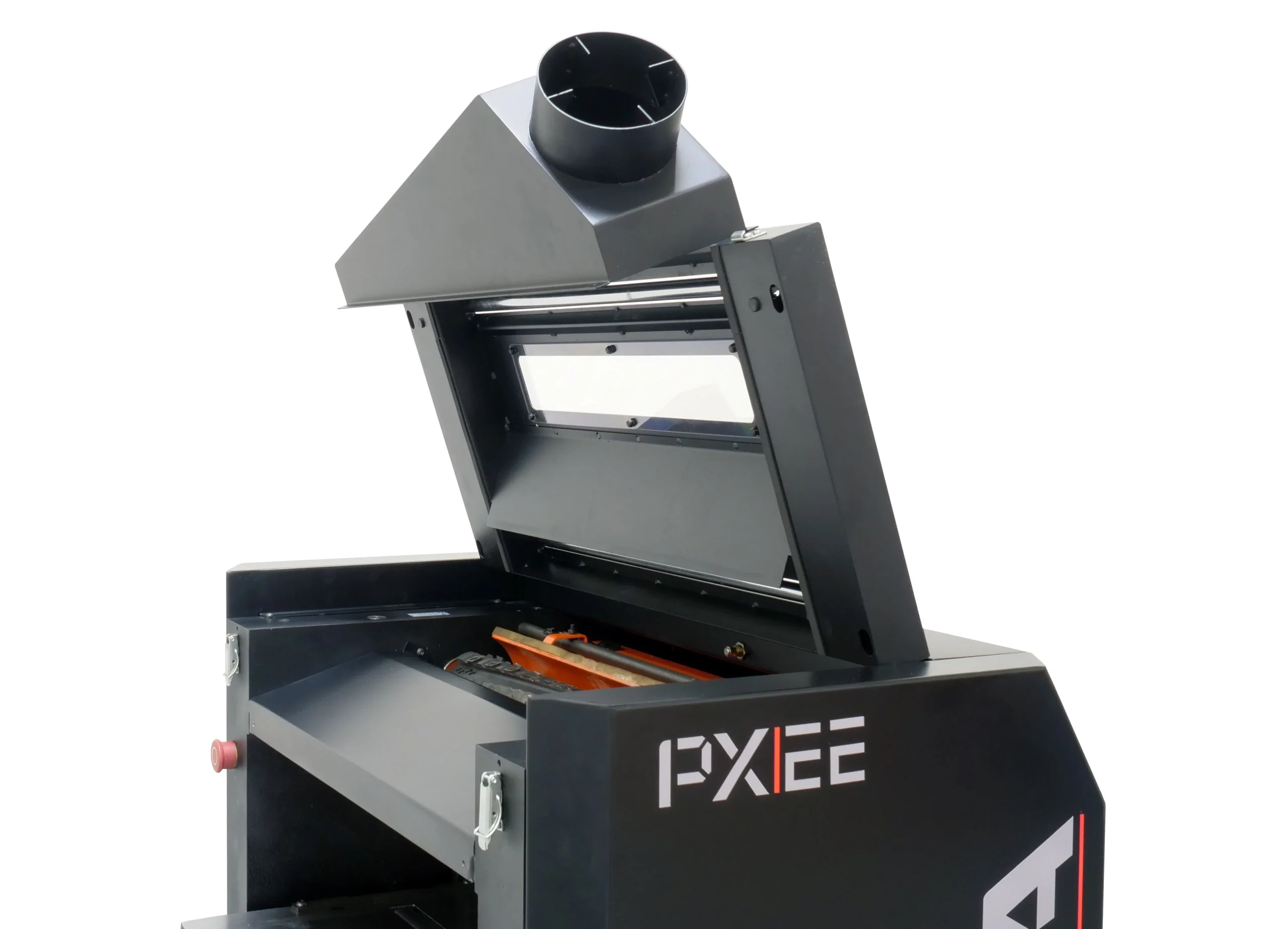

- Improved Dust Collection – The 5” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
- 4-Post Bed Support – Provides precise and consistent performance with every cut

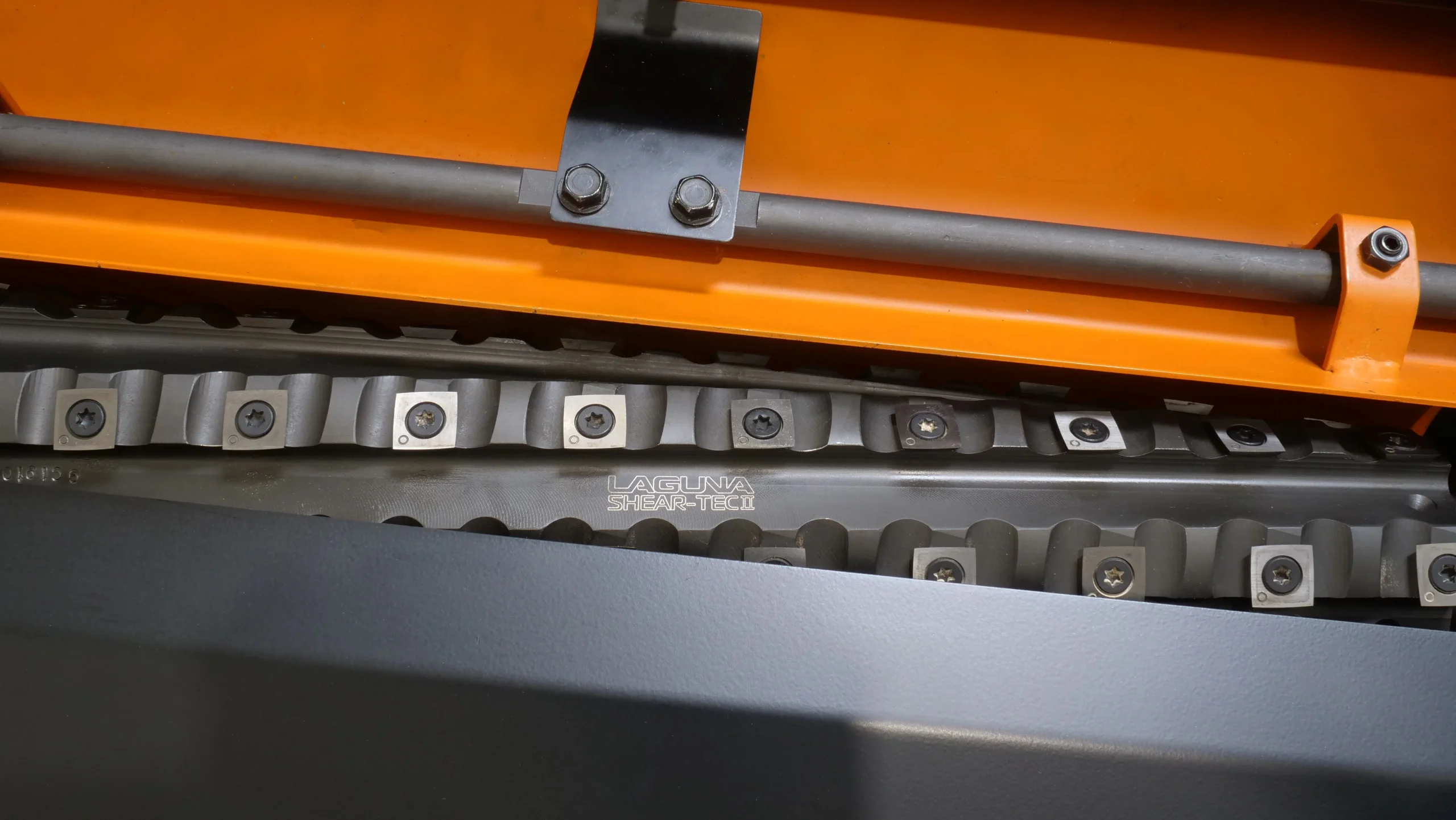

- ShearTec II Cutterhead – The ShearTec II is standard on the PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig.
Specs:
- Motor: 7.5HP /220V / 1PH / 23 Amp
- CSA: Yes
- Bed Size: 22″ x 28″
- Pull-Out Extension: 6″
- Max. Depth of cut: 1/4″
- Max. Stock Thickness: 8″
- Min. Stock Thickness: 1/2″
- Min. Stock Length: 9″
- Max. Stock Width: 22″
- Feed Speed: 10-30 Variable FPM
- Dust Port Diameter: 5″ LEFT or RIGHT
- Cutterhead RPM: 5000
- Cutterhead Inserts: 150 x 4-Sided Carbide, 6 Row
- Thickness Readout: Wixey Digital Readout
- Dimensions: 40″ x 46″
- Weight: 867 lbs
