Link G5 Plug In ECU BRZ/86

Available on order only, allow 7-10 days

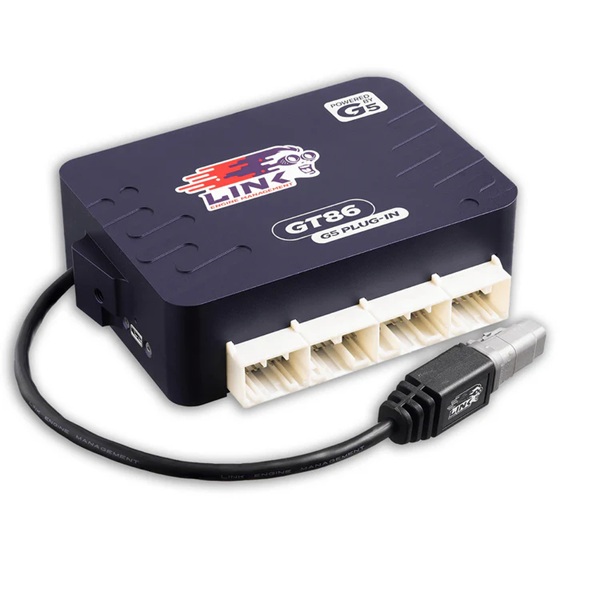

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in processing unit runs the same powerful microcontroller and firmware as the G5 Voodoo Pro.

Designed for the 2.0 L 4U-GSE/FA20 H4 Engine Right-Hand Drive cars. Support for both Manual and Automatic Transmissions.

Models Supported by 241-4000 Automotive computer unit:

• Toyota 86, ZN6, 2012 – 2021
• Toyota GT86, ZN6, 2012-2021
• Subaru BRZ, ZC6, 2012-2020

In the box:

• G5-GT86 Plugin ECU
• USB-C Connection Cable
• Locking USB-C extension cable for easy tuning access
• 2 x M6 screws for ECU mounting in OEM bracket
• DTM4 CAN Connection Cable (Pre-Installed in Enclosure)
• Link stickers

2017+ Models have some differences to earlier cars and will not run with the sample maps supplied in PCLink and the standard plug-in ecu hardware.

• 2017+ Engines have a Hall Effect Crank Sensor instead of Reluctor and so require the Trigger 1 Type changed from ‘Reluctor’ to ‘Optical/Hall’ and the Trigger 1 Pull-up set to ON.
• 2017+ Engines have a different DI Fuel Pressure sensor than earlier models, this sensor has 4 pins instead of 3 and requires an 8.2kohm pullup resistor to be wired between C7 (An Volt 4) and 5v, the DI Fuel Pressure Source changed from An Volt 3 to An Volt 4 and the pressure calibration changed to 0kPa at 4.06V and 30000kPa at 0.46V.
