Radium Engineering Fuel Surge Tank (Multi Pump) Evo 7-9

A fuel surge tank (FST) is designed to prevent fuel starvation to the engine on vehicles with inadequate fuel tank baffling. The FST fuel pump(s) directly feed the fuel rail(s). The volume of fuel inside the surge tank acts as a buffer to always keep the FST pump supplied with fuel. This volume is maintained by the main fuel tank’s pump as well as the fuel returning from the fuel pressure regulator. Excess fuel in the surge tank is returned back to the vehicle’s main fuel tank.

The surge tank also provides a quick and easy way to upgrade any standard fuel system without the need to modify the stock fuel tank or pump. This is an excellent fueling solution for vehicles installing large fuel demand power upgrades such as forced induction.

All Fuel Surge Tanks Include:

-Machined 6061 Aluminium Canister
-Removeable O-Ring Sealed 6061 Aluminium Caps
-Anodized and Laser Engraved
-6AN O-ring Sealed Fittings
-Calculated and Optimized Fuel Volume
-Stainless Steel Hardware
-Extra Machining for Weight Savings
-Mounting Feet for Uneven Surface Installations
-24″ Flying Lead Colour Coded Wiring Harness
-Installation Instructions

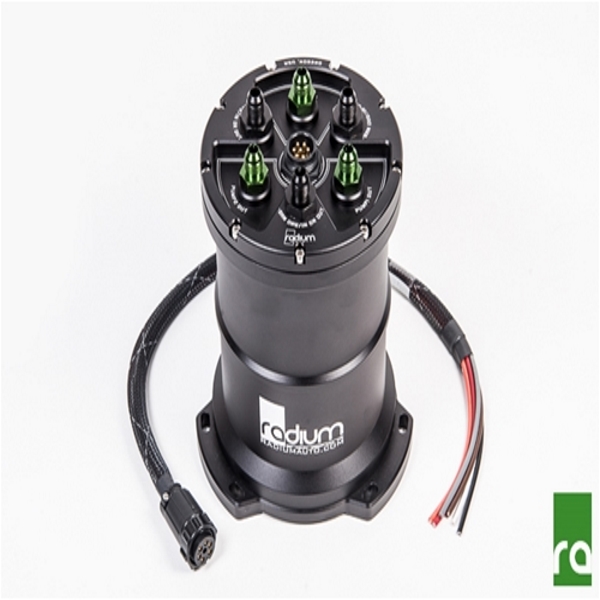

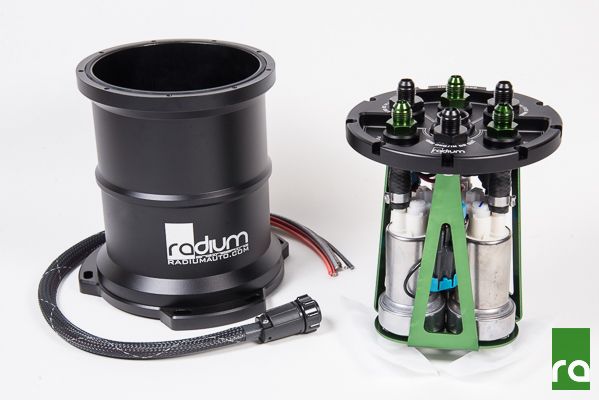

The Radium Engineering Multi-Pump FST is constructed from 100% CNC machined 6061-T6 aluminium. It is anodized for long lasting protection from corrosive fuels such as ethanol. The MPFST can be configured to use up to three fuel pumps. The pumps are mounted using an anodized aluminium bracket. The fuel pump filter socks are retained. The FST incorporates a multi-pin high amperage sealed electrical bulkhead connector. All internal wires are gasoline, ethanol, and methanol compliant. The internal hoses are a special fluoroelastomer formulation that resists permeation internally and externally making it submersible in all types of fuel.

Fittings

Green fittings signify the fuel pump outlets. These are bespoke adapters which are only available in -6AN male. The remaining black port fittings are used for fuel entering and exiting the tank. These are included in -6AN male as well. If only 2 pumps are used, a plug is included to cap the unused fuel pump outlet fitting.

Price inclusive of pumps.
