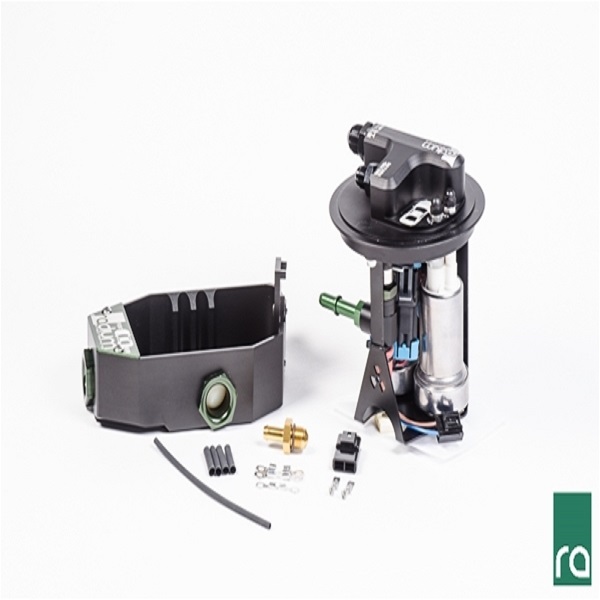

Radium Fuel Pump Hanger BRZ/86

The Radium fuel pump hanger permits the use of one or two Walbro E85 fuel pumps and is compatible with the following vehicles:

2012+ Toyota 86
2012+ Subaru BRZ
12-16 Scion FR-S

IMPORTANT NOTES:

1. This system is only compatible with “Walbro 460” pumps.
2. This system requires the use of an aftermarket fuel pressure regulator.
3. This system eliminates the OEM hanger’s “post” fuel pump filter. A low micron aftermarket fuel filter should be installed downstream to protect the injectors from contaminants.
4. A full plumbing kit (FPR, filter, gauge, hoses, fittings, etc.) will be available from Radium Engineering late May 2017.

Single pump applications can reuse the OEM fuel pump controller wiring, but it is recommended to upgrade the wiring as these high flow fuel pumps draw additional current requiring larger gauge wire. Select quantity 1 for single pump applications and quantity 2 for dual pump applications.

Features

-Anodized Aluminum Laser Etched Plate
-Anodized Aluminum Collector Box and Check Valves
-Anodized Aluminum Venturi Jet Pump with Multiple Orifices
-Anodized Aluminum 8AN Male Outlet Fitting
-Anodized Aluminum 6AN Male Inlet Fitting
-Anodized Aluminum Dual Pump Cradle
-Anodized Aluminum Pump Outlet Fittings
-PTFE Wire with Stainless Steel Terminals
-Fluorosilicone Duckbill Return Valve
-Stainless Steel Hardware and Clamps
