RCM Oil Cooler Kit 2008-2012

Engine oil teperatures are key to maintaining a healthy engine as well as performance. Under hard driving conditions oil temperatures naturally raise as a greater heat is generated from the faster moving engine components. With oil temperatures greatly increased the viscosity of the oil naturally thins lessening its ability to efficiently lubricate precious engine components which eventually leads to premature wear and in extreme cases engine failure.

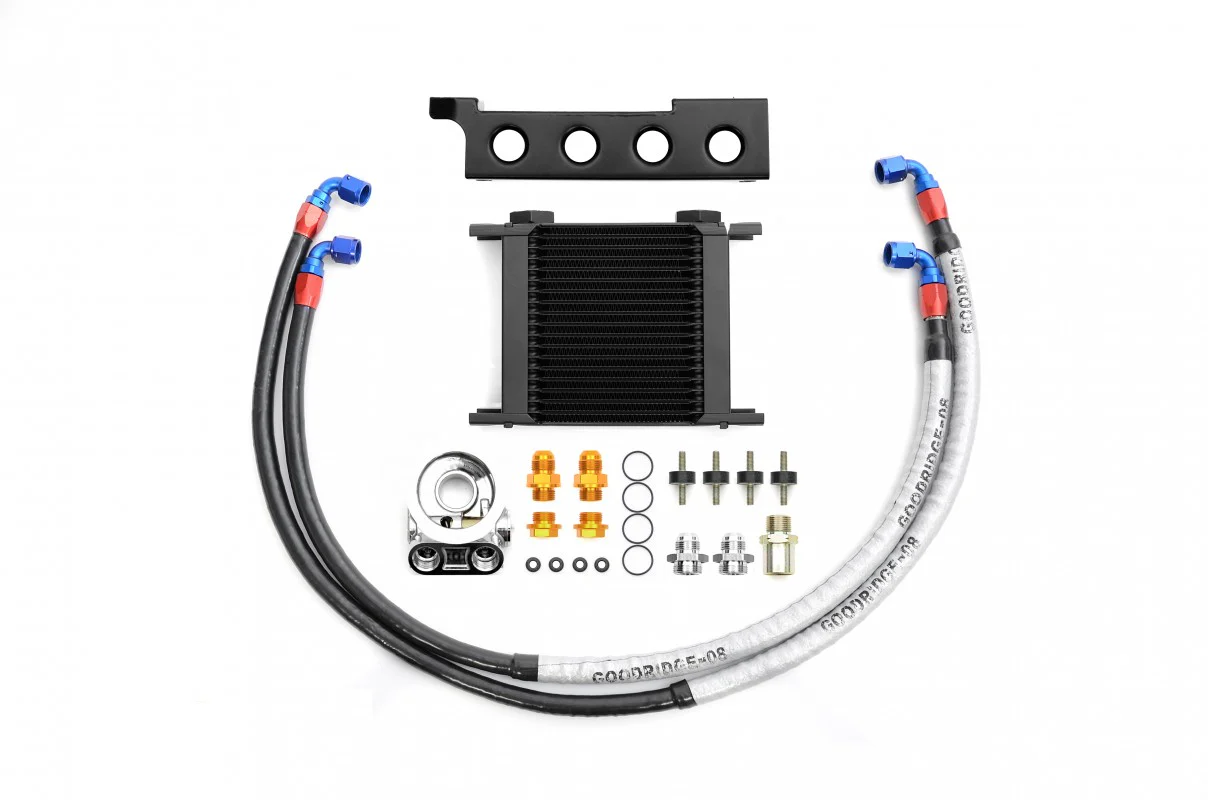

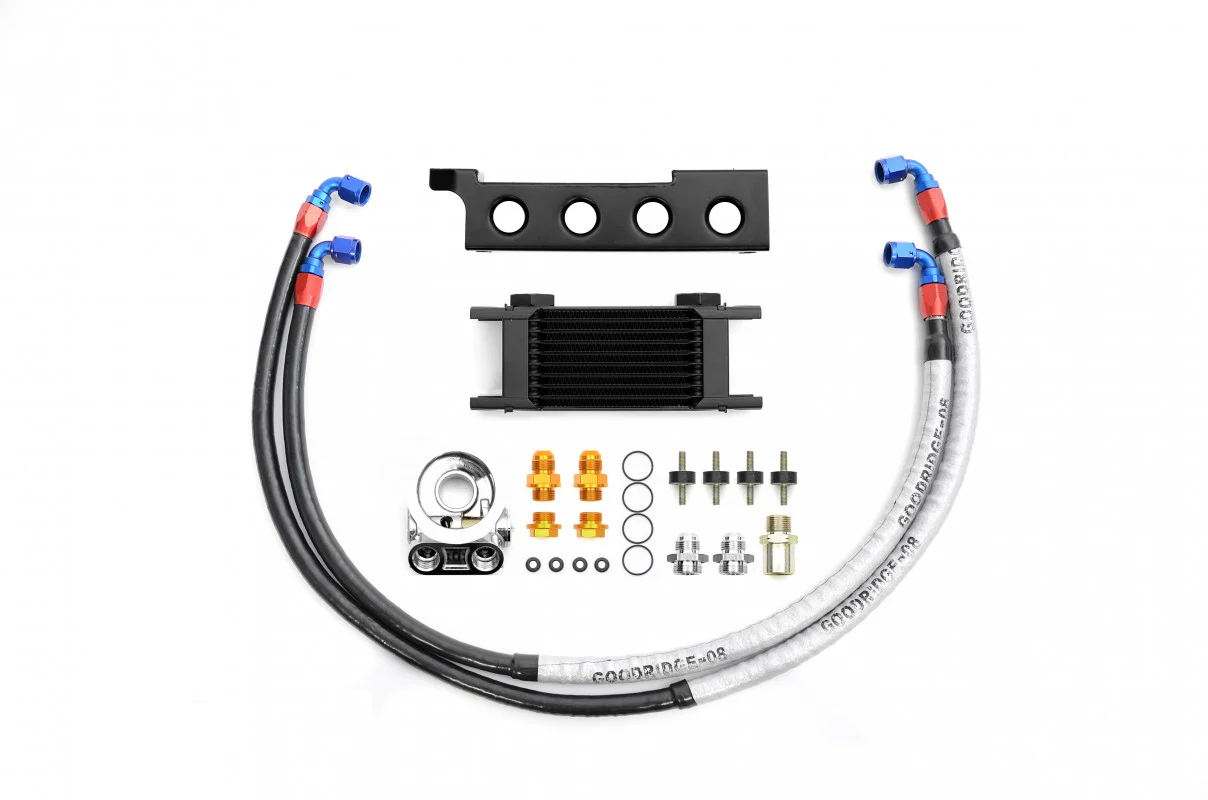

Our cooler kit has been specifically designed to combat the above problem and ensure your temperatures maintain a safe level. Choosing only the best possible components our kit not only cures rising engine temperatures but is built to last with no compromise on quality.

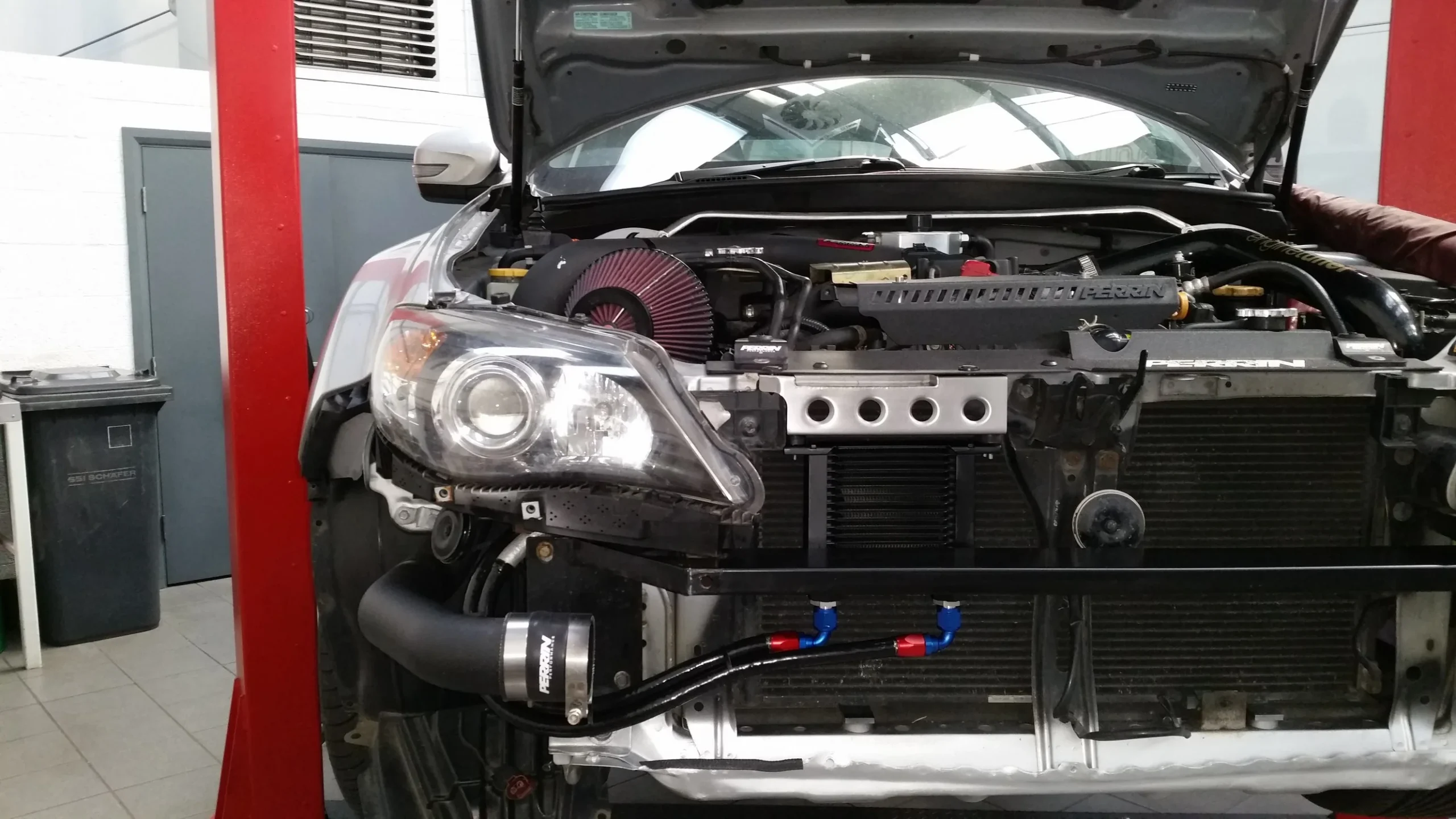

During the design process of our oil cooler kit, location and fitment played an important factor. Naturally the core needed to catch as much cold flowing air as possible in order for the cooling effect to be at its best, additionally it would be advantageous if the cooler could locate somewhere on the vehicle where it would not be necessary to drill into the body. After much time spent in R&D followed by road tests and power runs on the Dyno the perfect solution was formed. The mounting bracket for our cooler fits snuggly behind the front upper grill using existing mounting points and clips already found present on the vehicle. The cooler itself can be fitted within minutes, but perhaps even more beneficial is its access to a vast amount of fast moving cold air.

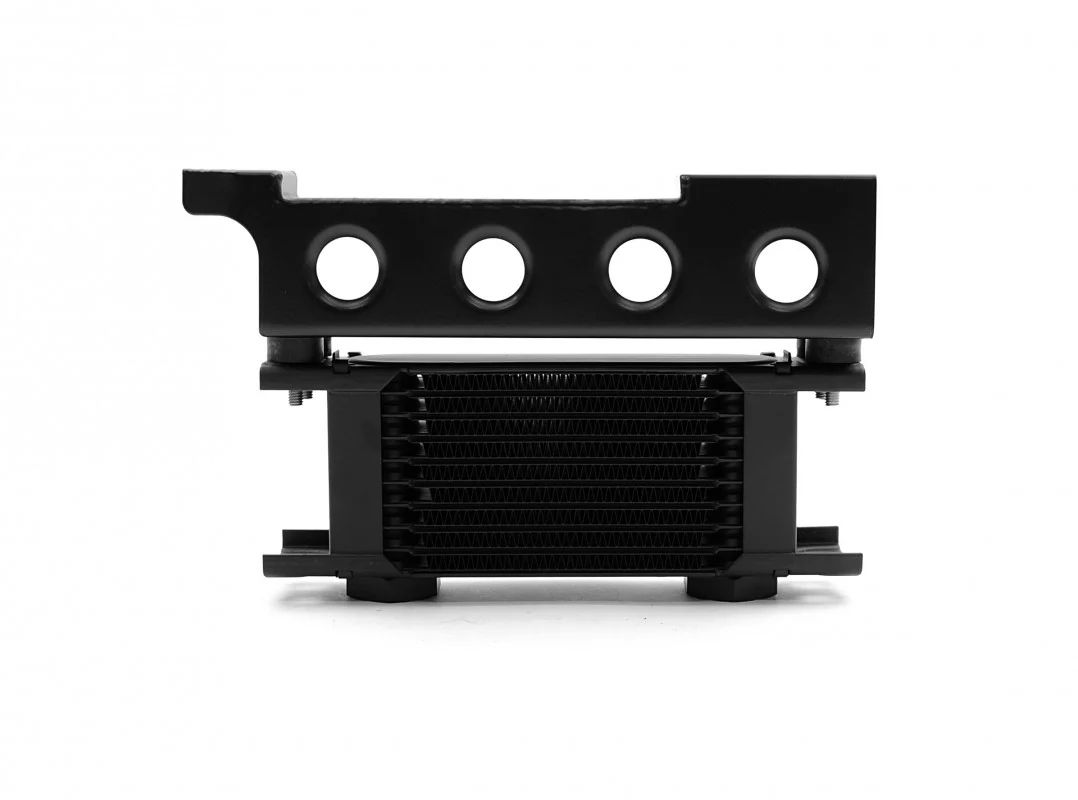

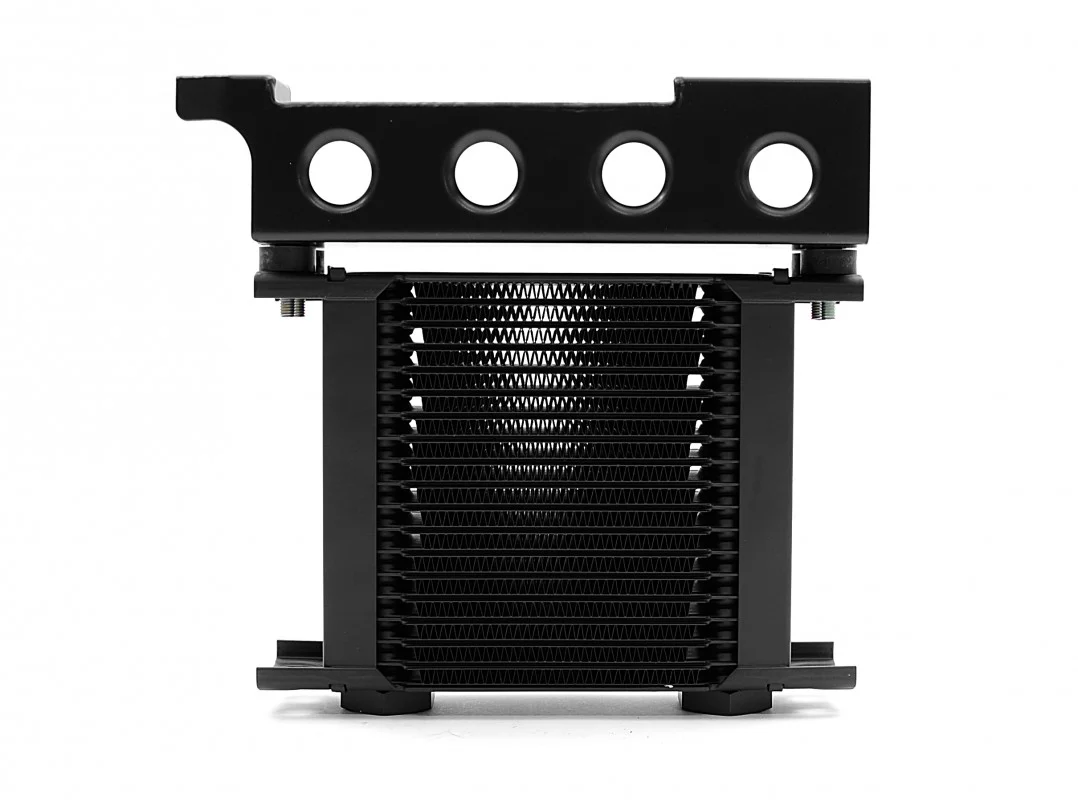

Each RCM oil cooler kit is supplied with the choice of either a 10 or 19 Row Setrab Core. Setrab’s cores are renowned for strength and quality, with working temperatures from -40°C to 150°C and a maximum burst pressure of 37 Bar(g), these coolers are more than qualified for the job and will provide long term reliability as well as consistent performance.

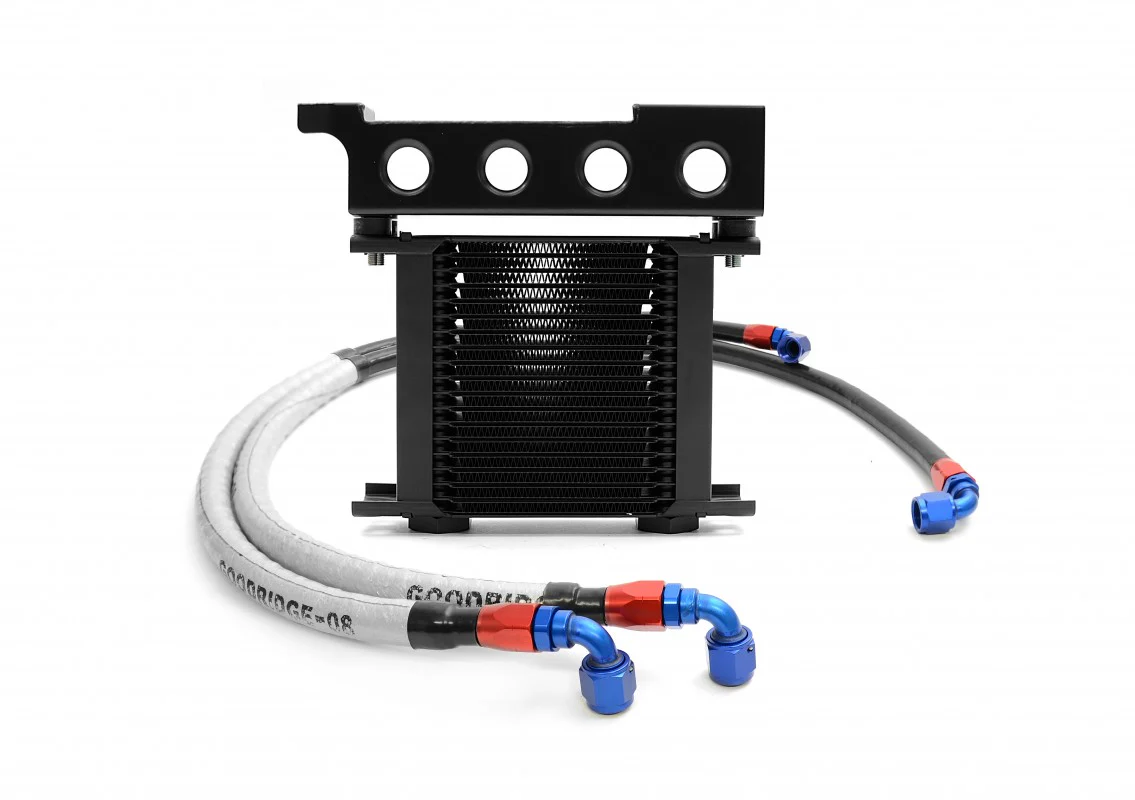

Leading Aeropquip manufacturers Goodridge produce pre-assembled lines to our specification using their latest -8 200 Series stainless steel braided nitrile hose. Designed to Goodridge’s exacting specifications this hose has been supplied to motorsport racing champions for many years. 200 Hose provides essential protection and resistance to high pressure, temperature, vibration, fire risks and chafing. It is constructed of a seamless synthetic CPE inner with an integral stainless steel braid and a high tensile stainless steel outer braid. 200 Series hose has the highest corrosion and fire resistance threshold of any stainless braided nitrile hose available, but lets not stop there! In addition our lines are covered with a silicone covered sleeve which acts as a secondary fire retardant, insulator and chafe protector. With the fireproof sleeve having operating temperatures from -54°C to 260°C and short term fire protection of up to an impressive 1090°C our lines surpass all safety, reliability and performance requirements. To finish, each line end is fitted with a Goodridge re-usable alloy fitting precisely engineered to fit 200 Series Hose. Their Aerospace standard Triple Seal/Double O-ring nitrile, cutter design ensures a secure, leak free connection every time and allow for any required alignment with their 360-degree swivel ends.

Each kit is supplied with a “Black Hardened” Powder coated mounting bracket. Laser cut and skillfully folded into position the brackets also feature pressed fixings for the oil cooler core to attach to and swaged holes to reduce weight and improve rigidity and strength.

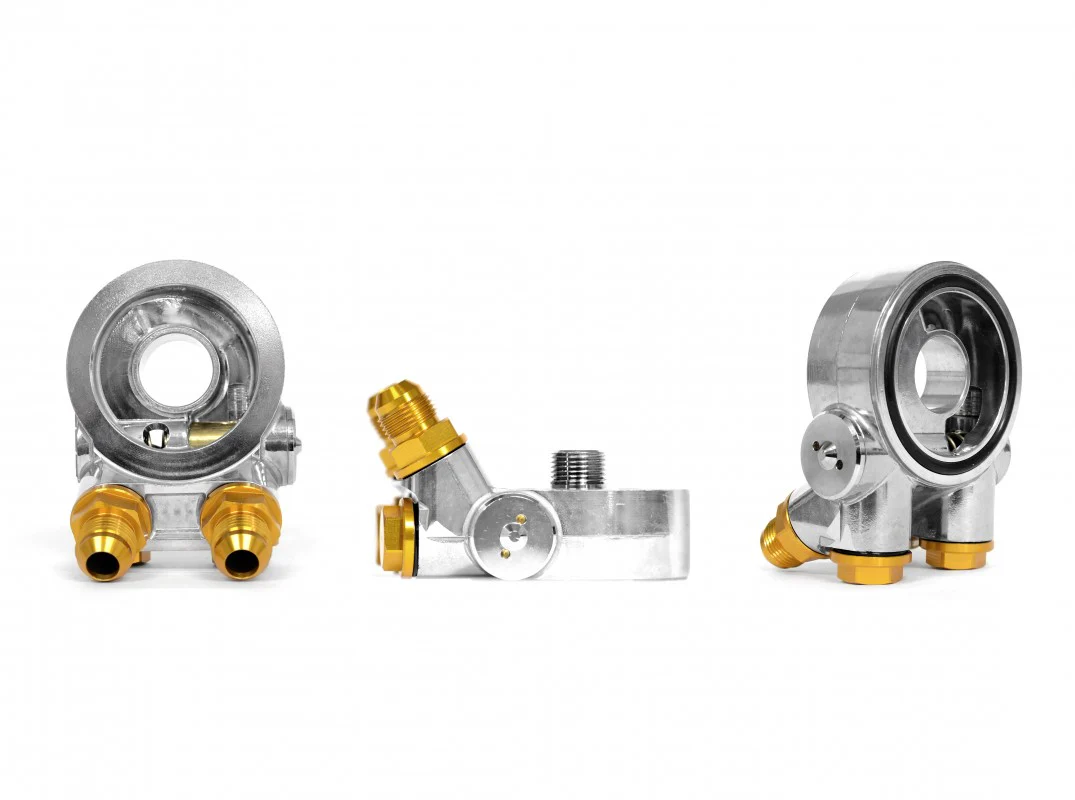

The final vital component is the Thermostatically Controlled Oil Sandwich Plate. Manufactured so the oil lines can be directed at multiple angles the plate proudly offers the best possible fitting for all variants of exhaust manifolds (including Twin Scroll, Equal Length and Un-Equal Length), something not offered by most competitors. Additionally there are two spare ports for those who wish to run oil temperature and pressure sensors (also supplied with blanks should these not be required) along with a replacement extended union to allow fitment of both the plate and oil filter. The built in thermostat opens at 85°C allowing ample engine temperatures to be reached before further engine oil cooling is required.

Please ensure you select the correct core size and mounting plate finish / material prior to order.

Our oil cooler kits are also available with a combined power steering kit, please see part numbers: RCM1614 & RCM1615
