Rear Main Repair Sleeve suitable for 1KZ 1KD Toyota Hilux KZN165 KUN26 Toyota Prado KZJ95 KZJ120 KDJ120 KD150

Rear Main Repair Sleeve suitable for 1KZ 1KD Toyota Hilux KZN165 KUN26 Toyota Prado KZJ95 KZJ120 KDJ120 KD150

Over time debris can be caught in the rear main seal sealing surface can damage the sealing surface where it runs on. The crankshaft repair sleeve, also known as a ‘Speedi Sleeve’ is a well-proven solution to overcome a worn crankshaft sealing surface for the rear main seal, without having to remove the crankshaft.

When replacing the rear main seal, if there’s a groove under the sealing surface, it’s best to sleeve the crank & ensure the replacement oil seal doesn’t leak

Vehicle Fitment is suitable for,

• Toyota Hilux KZN165 1KZ-TE 3.0L TD
• Toyota Hilux KUN26 1KD-FTV 3.0L TD
• Toyota Prado KZJ95 1KZ-TE 3.0L TD
• Toyota Prado KZJ120 1KZ-TE 3.0L TD
• Toyota Prado KDJ120 1KD-FTV 3.0L TD
• Toyota Prado KDJ150 1KD-FTV 3.0L TD
• 1KZ-TE 3.0L TD
• 1KD-FTV 3.0L TD
• 1997-2015

When would I need a Speedi Sleeve (also known as a crank repair sleeve)?

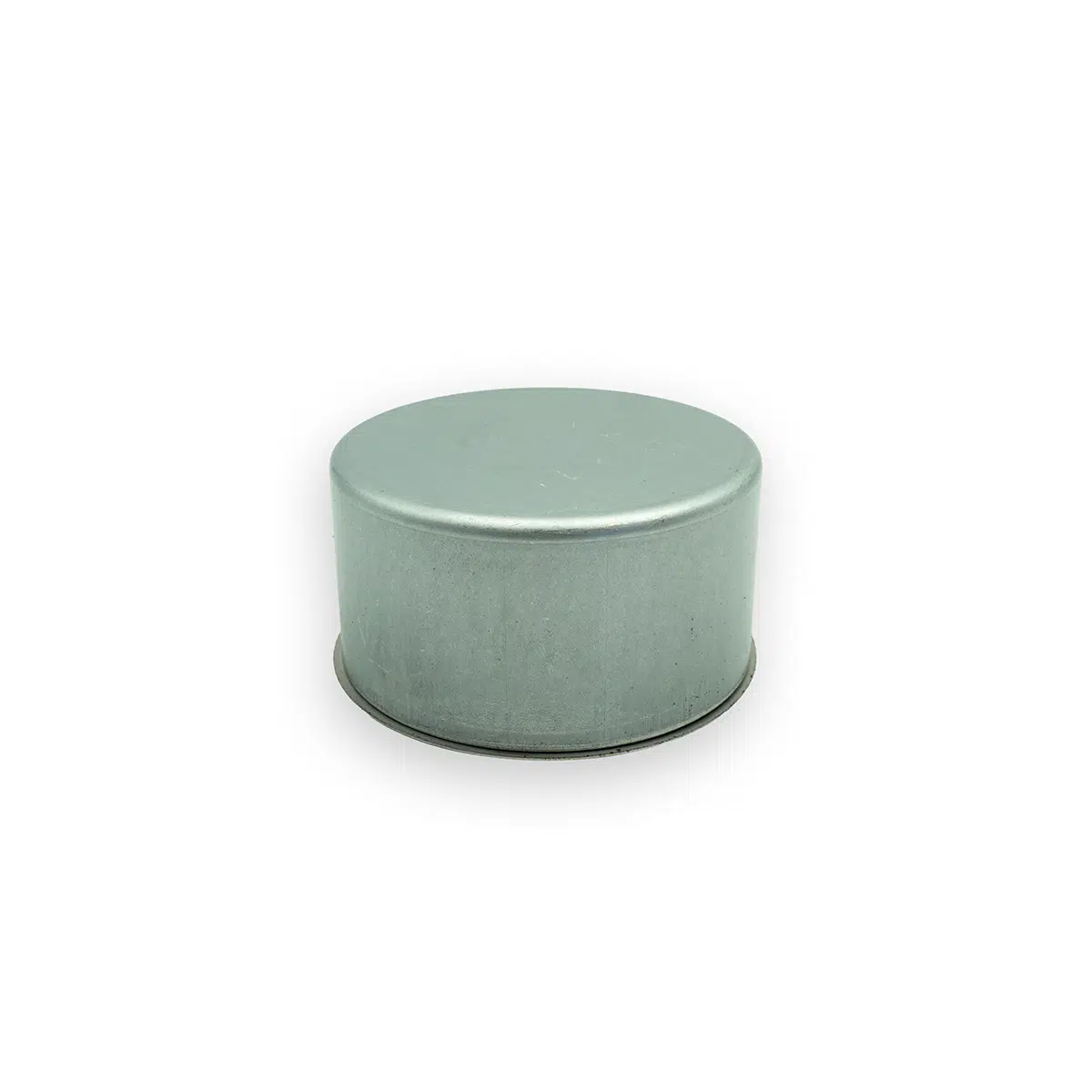

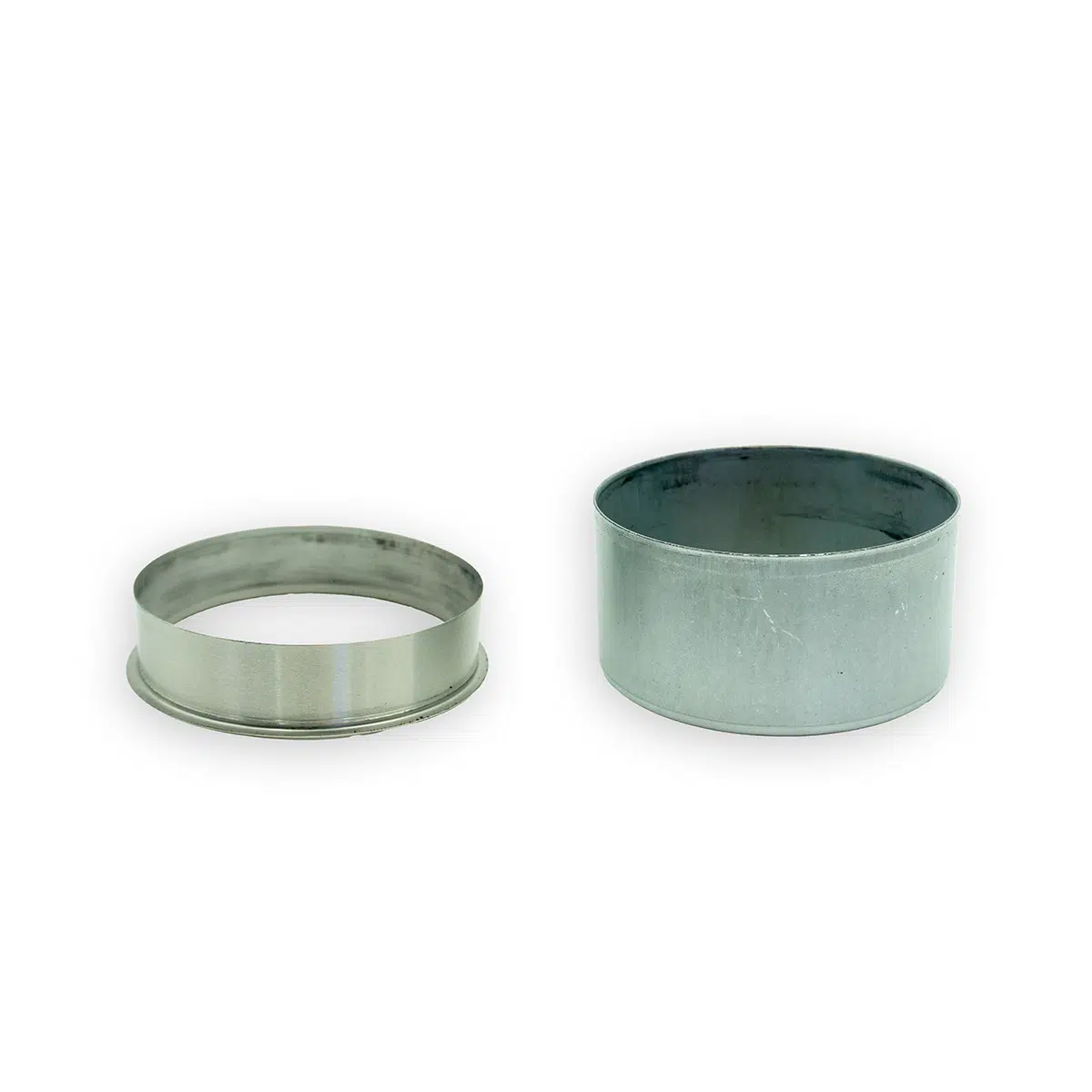

• A Speedi Sleeve is required when there is damage (such as a groove run into it) to the sealing area on the crankshaft where the rear main sits. It creates an extremely thin new surface for the seal to sit on. Speedi Sleeves are supplied with a tool to fit it in place, and has a tear away function once fitted. If you are having consistent rear main seal leaks, we would recommend purchasing one.
• Rear crankshaft repair sleeve
  • Size 95.0mm
