Simpson Strong-Tie A21 38 x 50 x 35 90 Degree Angle Bracket 1.2mm Pre-Galv

Simpson Strong-Tie A21 38 x 50 x 35 90 Degree Angle Bracket 1.2mm Pre-Galv

Compact. Reliable. Versatile Timber Fixing Solution

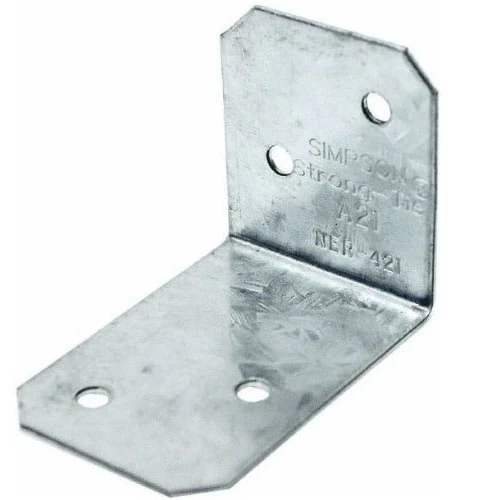

The Simpson Strong-Tie A21 is a precision-engineered 90-degree angle bracket, designed to provide discreet yet robust reinforcement in timber frameworks. Manufactured from 1.2mm pre-galvanised steel, this bracket is ideal for applications where space is at a premium but strength cannot be compromised.

Key Features

• 90° Structural Reinforcement
  Perfect for right-angle joints in timber structures, cabinets, shelves, and joinery applications.

• Slimline Design (1.2mm Thickness)
  Discreet and ideal for tight spaces, with minimal visual intrusion while maintaining strong load-bearing capacity.

• Pre-Galvanised for Corrosion Resistance
  Provides long-term durability in indoor and covered outdoor environments.

• Precision-Drilled Fixing Holes
  Engineered for easy installation and reliable performance with compatible fasteners.

Dimensions and Specifications

Dimension (mm)	A	B	C	Thickness
	50	38	35	1.2

Drill Holes – Flange A: 2 x Ø4.3mm

Drill Holes – Flange B: 2 x Ø4.3mm
(Further Ø4.0 and Ø11 holes not present in this model)

Safe Working Loads (SWL)
