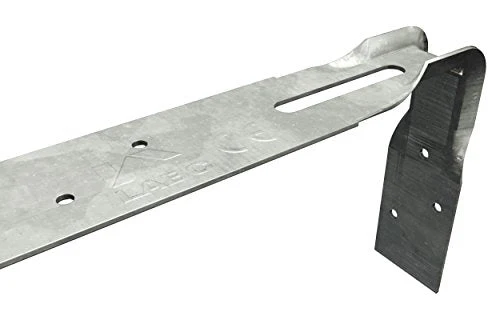

Simpson Strong-Tie HES10B10 Heavy Engineered Restraint Strap 1000mm Bent At 100mm Galv

Pack Size: 1 Unit

Next-Generation Restraint Strap for Roof and Floor Construction

The Simpson Strong-Tie HES1000 Heavy Engineered Strap (HES) offers a superior alternative to traditional 5mm restraint straps. With a reduced thickness of 1.5mm, it delivers full structural strength while being significantly lighter and easier to install. Designed for modern timber frame and masonry construction, the HES strap enhances both speed and safety on-site.

Key Features

• Direct replacement for traditional 5mm thick heavy-duty straps

• 1.5mm thickness allows fitting over joists and truss chords without notching

• Lightweight profile – less than 40% of the weight of conventional types

• Formed edge design reinforces the strap at the bend for added durability

• Bent at 100mm for alignment in standard applications

• CE Marked and compliant with BS EN845 standards

• LABC registered solution, ensuring suitability for building control approval

Benefits

• Quicker and safer installation with reduced manual handling

• No need for notching joists or trusses, preserving timber strength

• Easier to course with blockwork, saving time in masonry builds

• Reliable structural performance with a declared load of 8.0 kN

• Suitable for new builds, extensions, and refurbishments

Dimensions & Specification

• Overall Length: 1000mm

• Thickness: 1.5mm

• Bend Position: 100mm

• Material: Galvanised mild steel

• Finish: Corrosion-resistant zinc coating

Typical Applications

• Roof truss anchoring

• Floor joist restraint

• Timber frame and masonry interface

• Structural tie-downs in compliance with building standards
