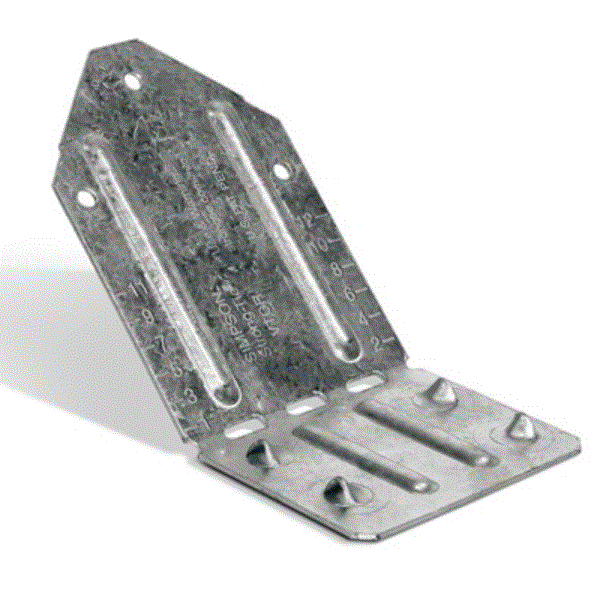

Simpson Strong-Tie VTCR Valley Truss Clip Mild Steel Pre-Galv

Part Number: VTCR
Pack Size: 1 Unit

Adjustable Clip for Valley-to-Common Truss Connections

The Simpson Strong-Tie VTCR Valley Truss Clip is specifically engineered for connecting valley trusses to common trusses in timber roof structures. Designed to streamline both manufacturing and installation, this single-sided connector is ideal for new construction or retrofit applications. With its adjustable pitch range from 10° to 40°, the VTCR eliminates the need for bevelling or wedging the bottom chord, simplifying site work and saving on labour and materials.

Key Features

• Purpose-built for valley truss to common truss connections

• Pitch adjustable from 10° to 40° for site flexibility

• Single-sided design allows for quick installation or retrofit use

• Eliminates the need for bottom chord bevelling or packing

• Made from 1.2mm pre-galvanised mild steel for corrosion resistance

Benefits

• Reduces installation and manufacturing costs

• Speeds up onsite truss fitting

• Strong structural support with minimal preparation

• Suitable for varied roof designs requiring pitched valley support

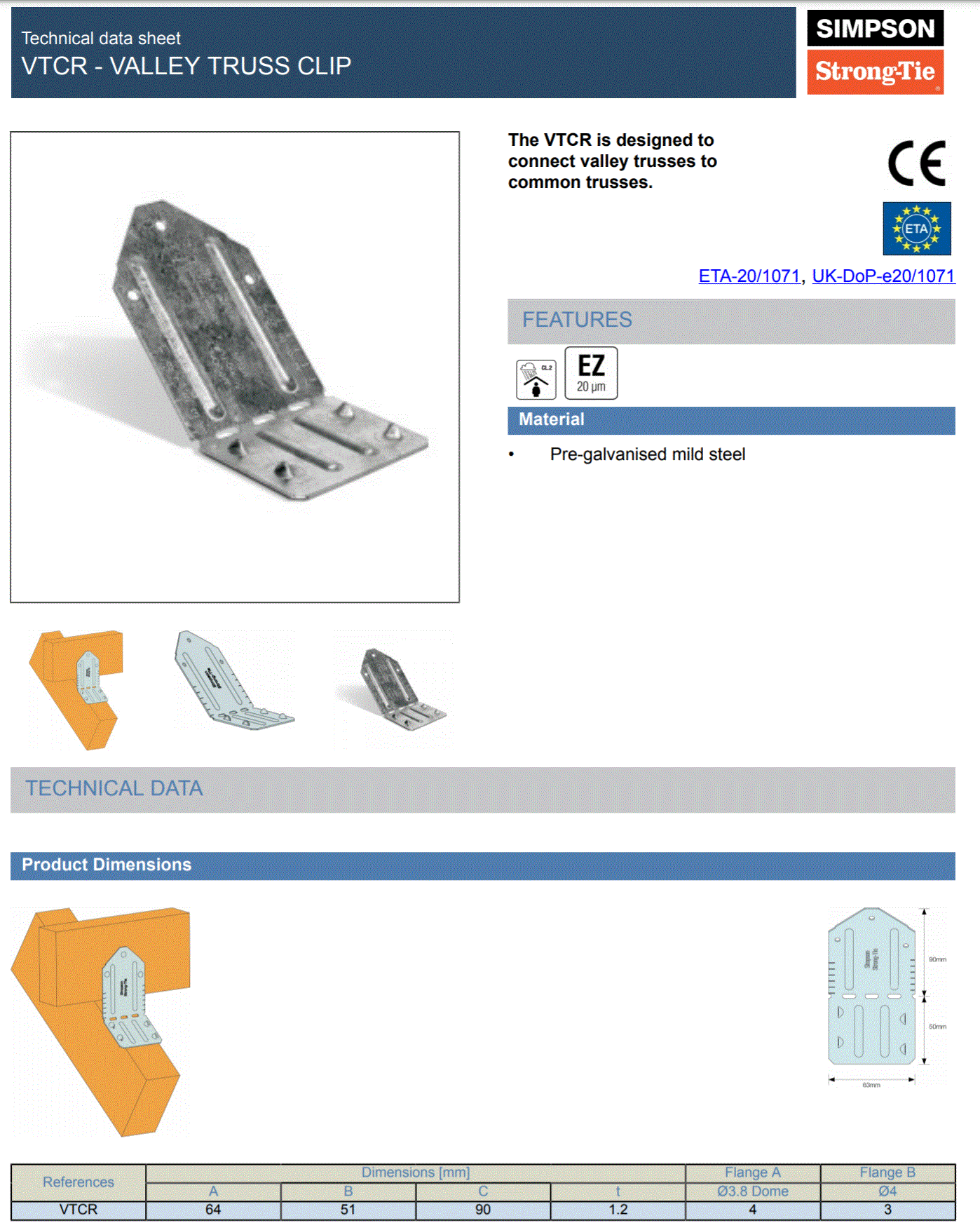

Dimensions

Attribute	Value
Flange A (A):	64mm
Flange B (B):	51mm
Depth (C):	90mm
Thickness (T):	1.2mm
Fixing Holes Ø3.8:	4 Holes
Fixing Holes Ø4:	3 Holes

Fixing Requirements

Component	Quantity	Fastener Type
Common Truss	4	N3.75 × 75mm nails
Valley Truss	3	N3.75 × 30mm nails

Performance Values

Type	R1,K (kN)	R2,K (kN)	R1 SWL Long-Term (kN)	R2 SWL Short-Term (kN)
VTCR	8.0	1.0	3.5	1.6

Typical Applications

• Valley truss connections in pitched roof systems

• New builds or retrofit roofing projects

• Residential and light commercial timber roof frames

Material Specification

• Material: Mild steel

• Finish: Pre-galvanised to EN standards

• Suitable for internal and covered external use

Important Note

Ensure correct nail types and quantities are used as per performance tables. The clip must be installed with proper alignment and within the specified pitch range. Always verify compatibility with structural plans and building regulations before installation. Not intended for use in aggressive or marine environments without further corrosion protection.
