Purpose-Built Joist Hanger for Masonry Wall Support

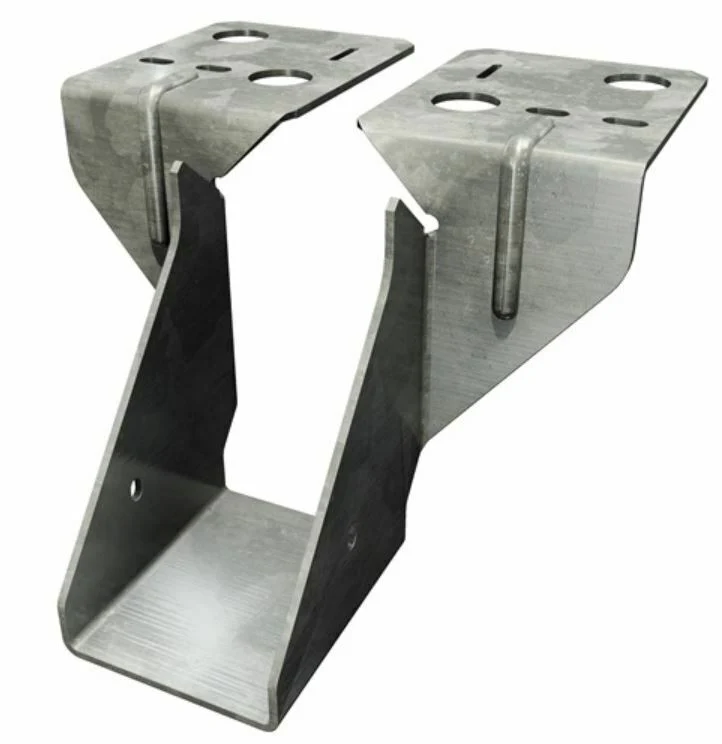

The Simpson Strong-Tie JHM100/47 is a one-piece, non-welded joist hanger specifically designed for fixing timber joists, beams, and trussed rafters to masonry walls. Manufactured from pre-galvanised mild steel, it delivers a strong, reliable connection with features tailored for safe and efficient installation.
Key Features
-
Masonry-Specific Design: Engineered for direct installation onto masonry substrates, providing a solid, permanent connection for timber structures.
-
Integrated Inspection Slot: A built-in slot at the base of the hanger allows easy visual confirmation from ground level, ensuring the joist is correctly seated during and after installation.
-
Wide Top Flange: Offers increased surface contact with masonry, enhancing load distribution and performance.
-
Steel Beam Compatibility: Can also be fixed to steel beams using four shot-fired pins, making it versatile for hybrid structural setups.
-
Non-Welded Construction: Delivers consistent strength and eliminates weaknesses associated with welded joints.
Benefits
-
Ensures secure support of joists and rafters from masonry walls
-
Allows rapid on-site verification of correct installation
-
Multi-material compatibility extends usability across structural types
-
Corrosion-resistant finish extends product lifespan in standard environments

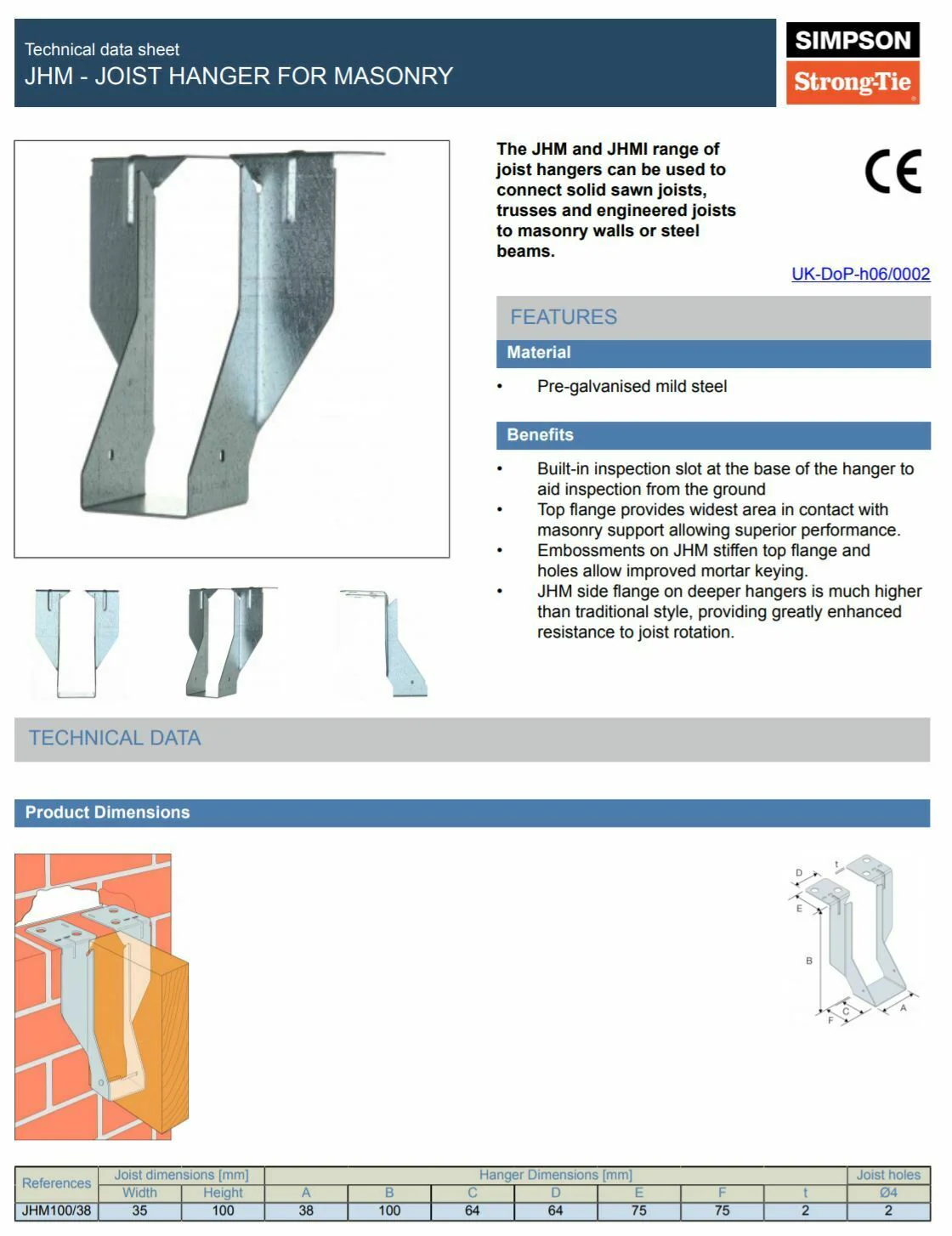

Product Dimensions
| Width (W) | Height (H) | Material |
|---|---|---|
| 47mm | 100mm | Pre-Galvanised Mild Steel |
Pack Information
-
Pack Size: 1 unit
-
Manufacturer Part Number: JHM100/47
Applications
Ideal for attaching timber joists, beams, and trussed rafters to brick, block, or concrete walls in domestic and commercial construction. Also suitable for fixing to steel beams in composite frame structures.

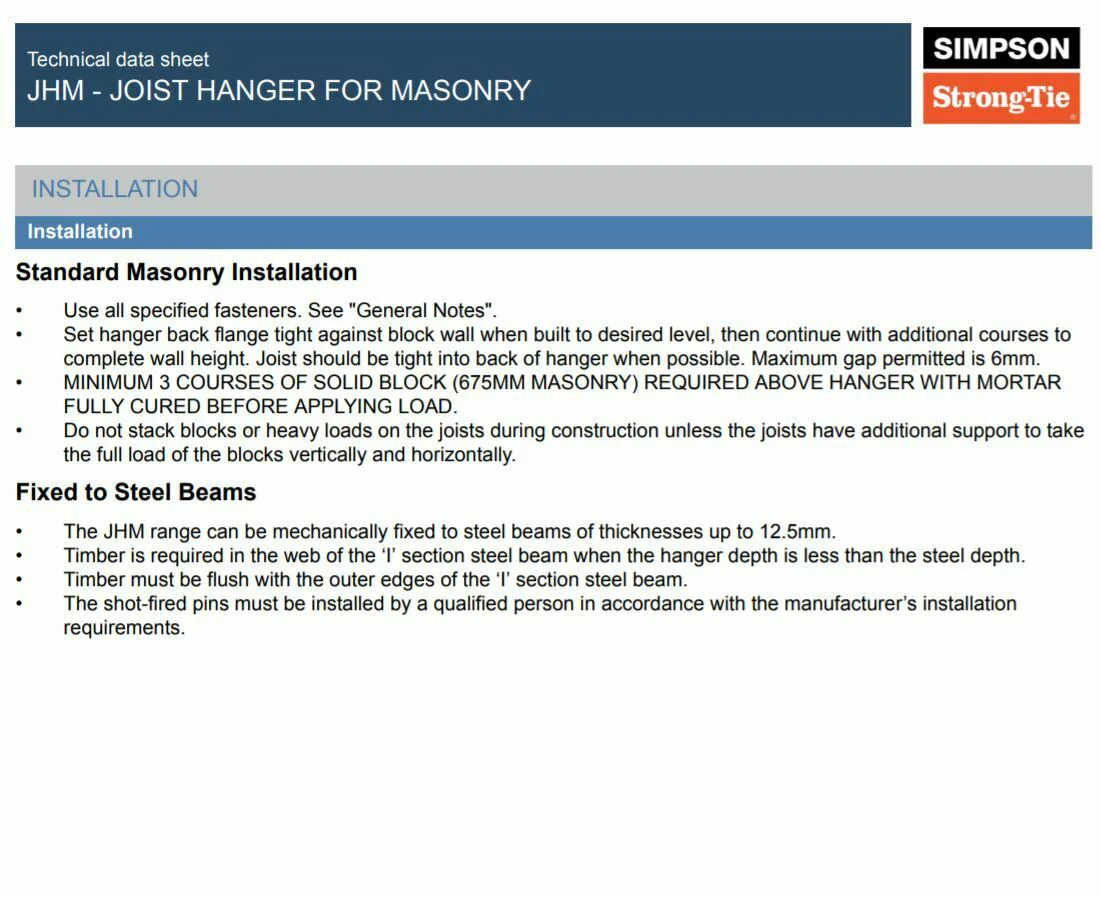

Important Notes
-
When fixing to steel, use four shot-fired pins as per manufacturer guidelines.
-
Always ensure the joist is seated fully and visibly within the hanger’s base slot before final fixing.
