Zeitronix ECA-2 CANBUS Ethanol Content Analyser Kit

New ECA with CAN Bus Communication:

The ECA CAN supports CAN Bus communication for easy connection and logging through other CAN Bus devices supporting a wide range of CAN Bus settings.

What’s your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle.  For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 or higher octane fuel.  Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.

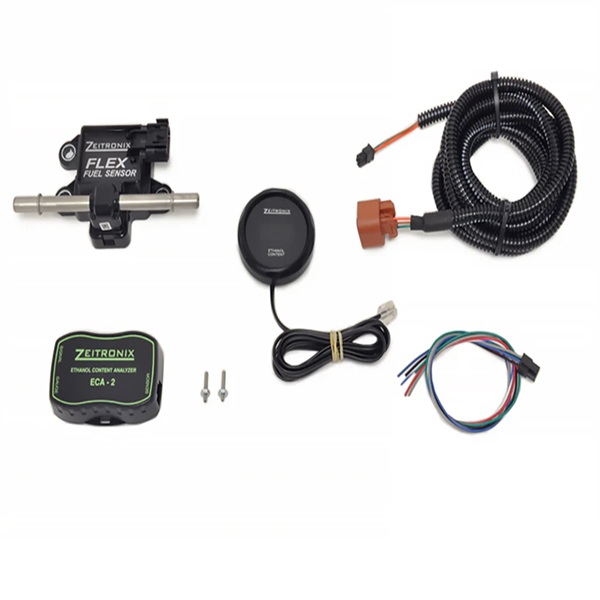

The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel. We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector.

Features:

• CAN Bus communication for easy connection and logging through other CAN Bus devices.
• Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems.
• Connecting harness to Zeitronix Flow Through FLEX Fuel Sensor is included. Harness length is 8 ft (2.4m)
•  Optional real time E% Ethanol Content Gauge.
  The E% gauge is only 3/4″ (19mm) thick. The back of the gauge is completely flat with cable hidden in a cavity and can be surface mounted almost anywhere inside the car cabin using a piece of Velcro or double sided tape. The E% Gauge base allows the gauge to be mounted in a standard 2” 1/16 (52mm) gauge pod. For additional mounting options the package includes 2 set screws and 2 nuts (4-40 screw size).
  The E% Gauge plugs into the ECA-2 GAUGE port. Power and serial data is supplied directly through the single connection – there are no additional +12V or ground wires. The E% Gauge cable length is 5 ft (1.5m).
  ECA-2 is required for E% Gauge operation.
•  A flex fuel sensor is required.  The ECA-2 is compatible with some OEM sensors used in GM vehicles with the flex fuel insignia or which run on E85. However GM offers a large number of different sensors with different specs.
  ECA-2 Kit which includes Zeitronix tested Flex Fuel Sensor
• ECA-2 dimensions: 3″ x 2″ x 1″ (76mm x 50mm x 25mm)
• Made in the USA!

What are the sizes of the flex fuel sensor inflow and outflow lines?
Zeitronix Flow Through Flex Fuel Sensor both tubes are 0.37″ and 0.5″ at the flange.

The usual mounting location for the sensor is the return fuel line.  Make sure the sensor is filled completely with fuel.
A professional installation by a shop familiar with your vehicle and it’s fuel system is required. Always check for fuel leaks!

ECA-2 Analog Outputs
Ethanol content and temperature analog outputs are available as part of the ECA-2.  The flex fuel sensor does not provide these outputs.  We have created the ECA-2 to provide these outputs making use of E-85 easier with after market engine control modules and data logging systems.

Supported CAN Bus Specifications:

• User selectable CAN Bus Speed: 1Mbps, 500 Kbps, 250 Kbps, 125 Kbps
• User selectable CAN Bus ID:  Standard (11 bit) and Extended (29 bit)
• User selectable CAN Bus address:  Standard 0x0000 to 0x7FF / Extended 0x0000 to 0x7FFF
• User selectable CAN Bus update rate:  1ms (1000Hz) to 250ms (4 Hz)
• 120 ohm termination: None

CAN Data:

• Data 0 : E % = 8 bit
• Data 1 : Fuel Temperature (C) = 8 bit – 40
• Data 7: FF Sensor Status
• 0x00 Sensor OK
• 0x01 Sensor fault
