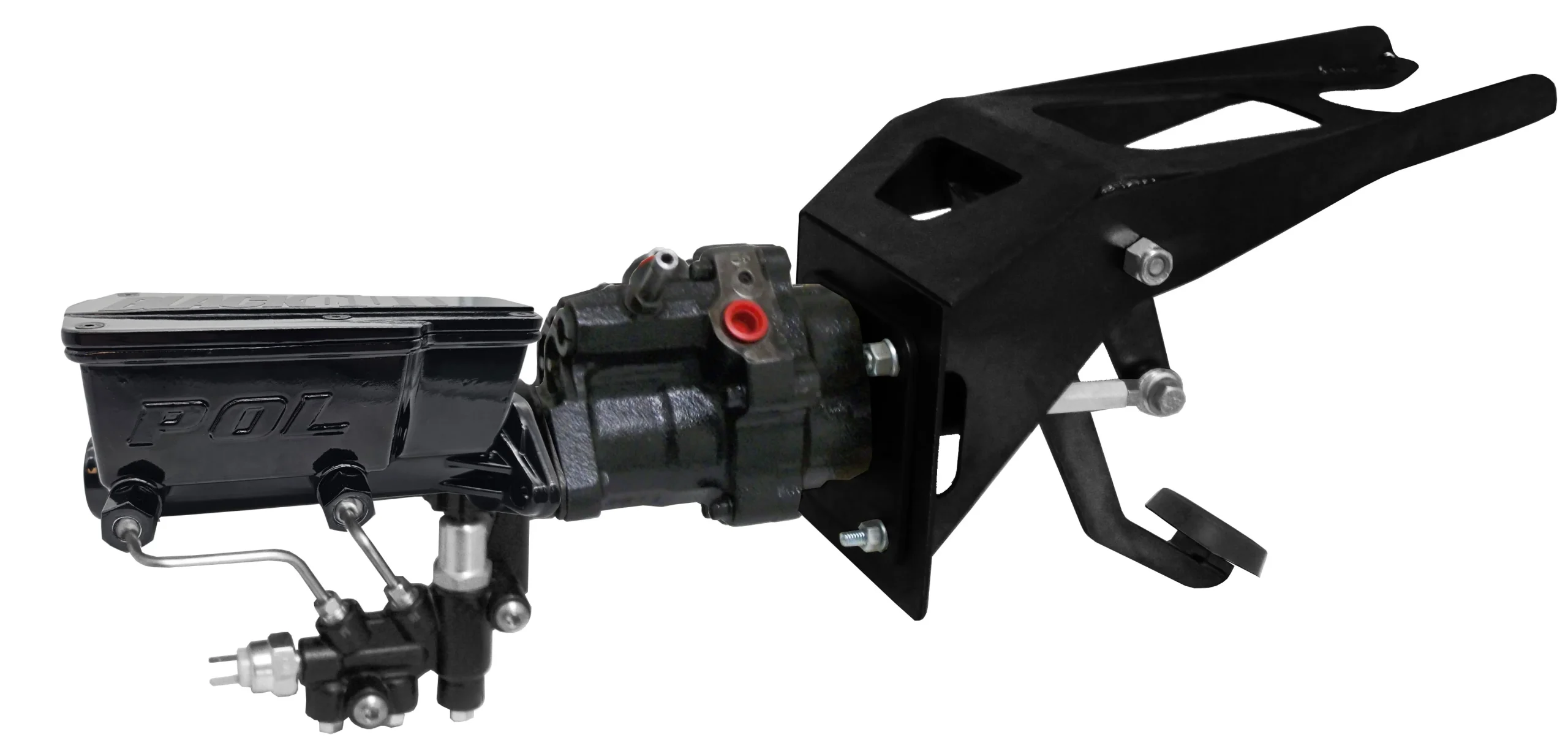

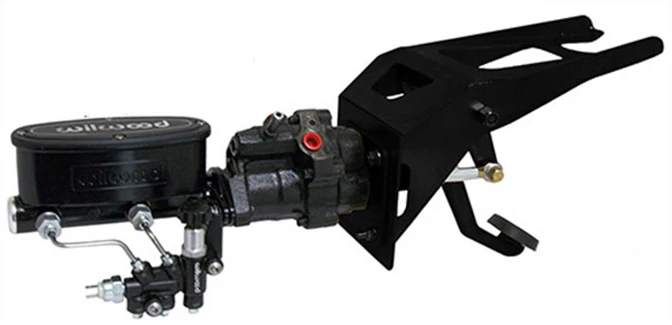

Our Hydropower hydraulic brake assist power booster fits 1953-56 Ford F-100 trucks and generates up to 1800psi of line pressure to the brake calipers. It is fitted with a POL or Wilwood master cylinder and adjustable proportioning valve. This kit is powered by hydraulic line pressure from the power steering pump. Firewall and valve cover clearance is equivalent to a 7″ diameter vacuum booster. The firewall brackets are correct for 53-56 Ford truck applications.
The average power steering pump puts out from 800psi to 1400psi line pressure. The Hydropower® uses this to convert to pressure to apply against the master cylinder. This greatly improves stopping performance and driver feedback. These hydraulic power boosters can be easily installed on an existing vacuum booster vehicle or used to convert a manual brake setup to power with ordinary hand tools and average mechanical ability.
Fits: 1953 1954 1955 1956 Ford F-100 truck.
Preassembled Kit includes:
- Hydraulic brake assist power booster
- 1.125″ bore Wilwood master cylinder (available in black or bright finish)
- Wilwood Adjustable proportioning valve, bracket and lines (works with front disc and rear disc or drum brakes)
- Firewall Mount brackets with pedal assembly
- Limited Lifetime Warranty

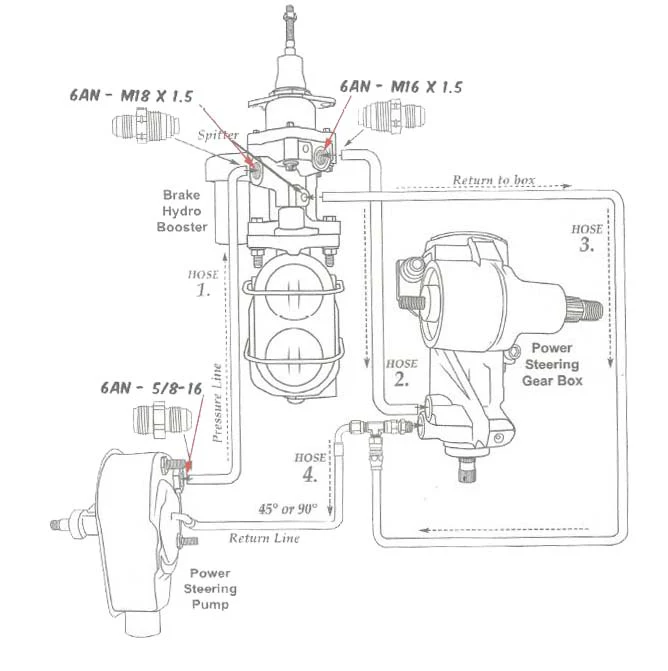

Steering hose hookup kits available in the Suggested Parts below. These are remanufactured Hydropower units.
| Finish Type | |
|---|---|
| Master Cylinder Manufacturer |
