- Powerful 3 HP, 220V motor

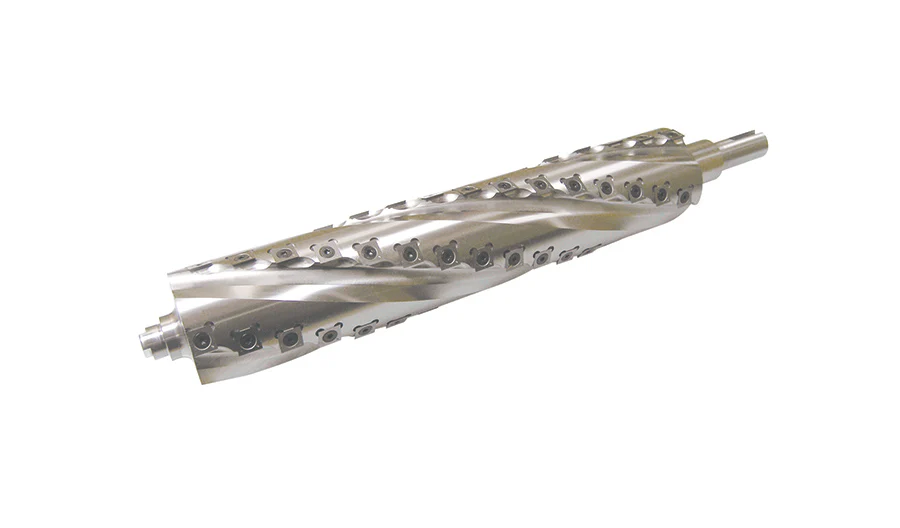

- A spiral cutterhead makes 50% less noise than a conventional cutterhead
- Table raises and lowers on four precision ground columns for extra stability
- Anti-kickback fingers in front of the infeed roller to prevent wood kickback
- Magnetic safety switch
- Stock return rollers on top of planer for multiple passes
- Cast-iron extension tables provide support for longer material
- Mobile base system built into the cabinet
|
Specifications:
|
|
| Maximum planing width | 15″ |
| Maximum planing thickness | 8″ |
| Maximum depth of cut | 1/8″ |
| Cutterhead speed | 5,000 RPM |
| Cutterhead diameter | 2 7/8″ |
| Spiral cutter inserts | 64 (14mm x14mm x 2mm) |
| Feed rate | 2 (16-30) FPM |
| Number of cuts per inch | 78-63 |
| Motor | 15 Amp. |
| Voltage | 220V, 1 phase, 60 Hz |
| Assembled dimensions (LxWxH)/weight | 32 1/2″ x 42″ x 45″ / 625 lbs |
