Laguna PX|16 16″ Planer w/ ShearTec II Cutterhead

The all-new PX|16 planer signals an innovative new design for Laguna planers. The Laguna PX|16 is loaded with new ergonomic features to make woodworking safer and more enjoyable.

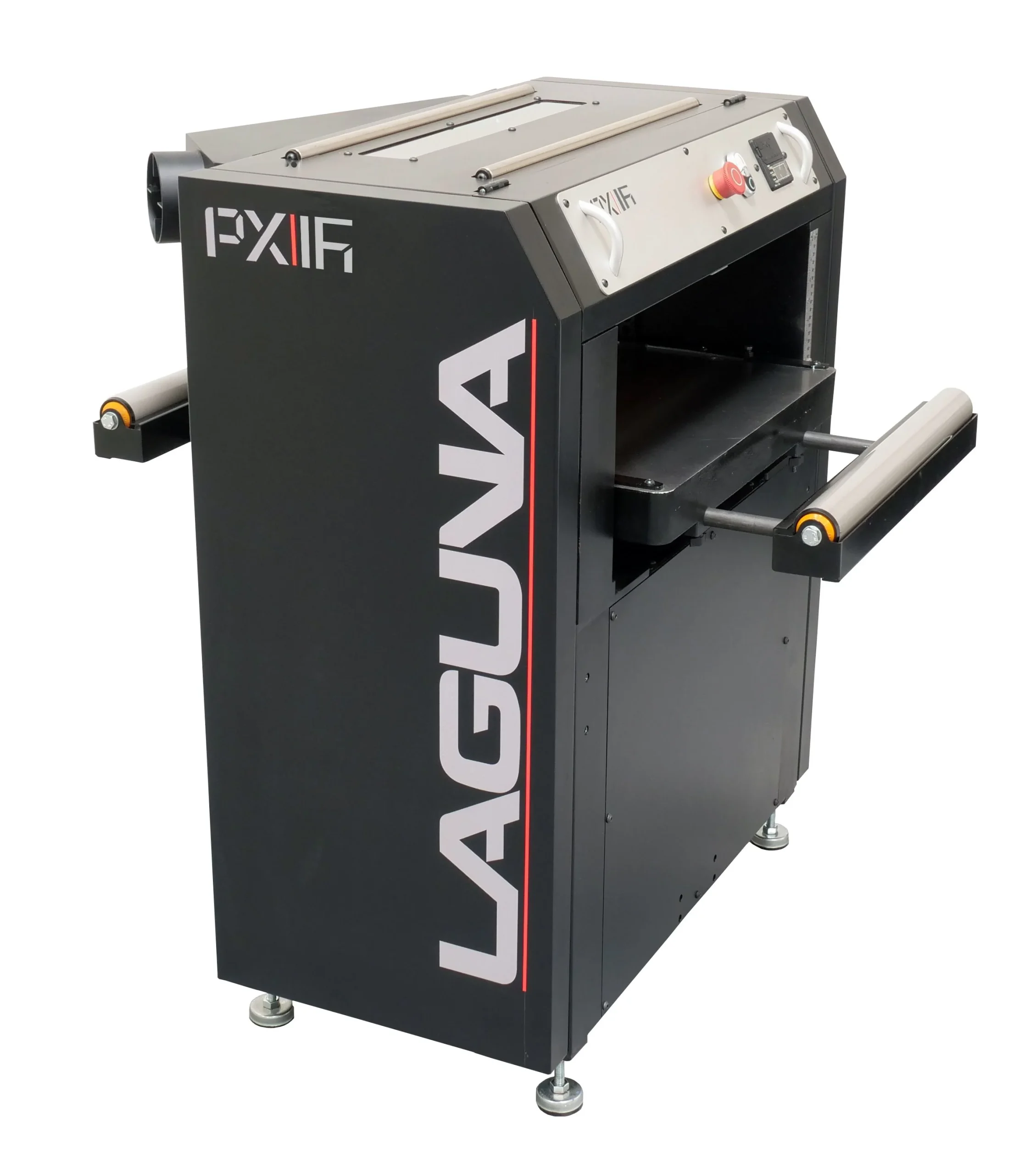

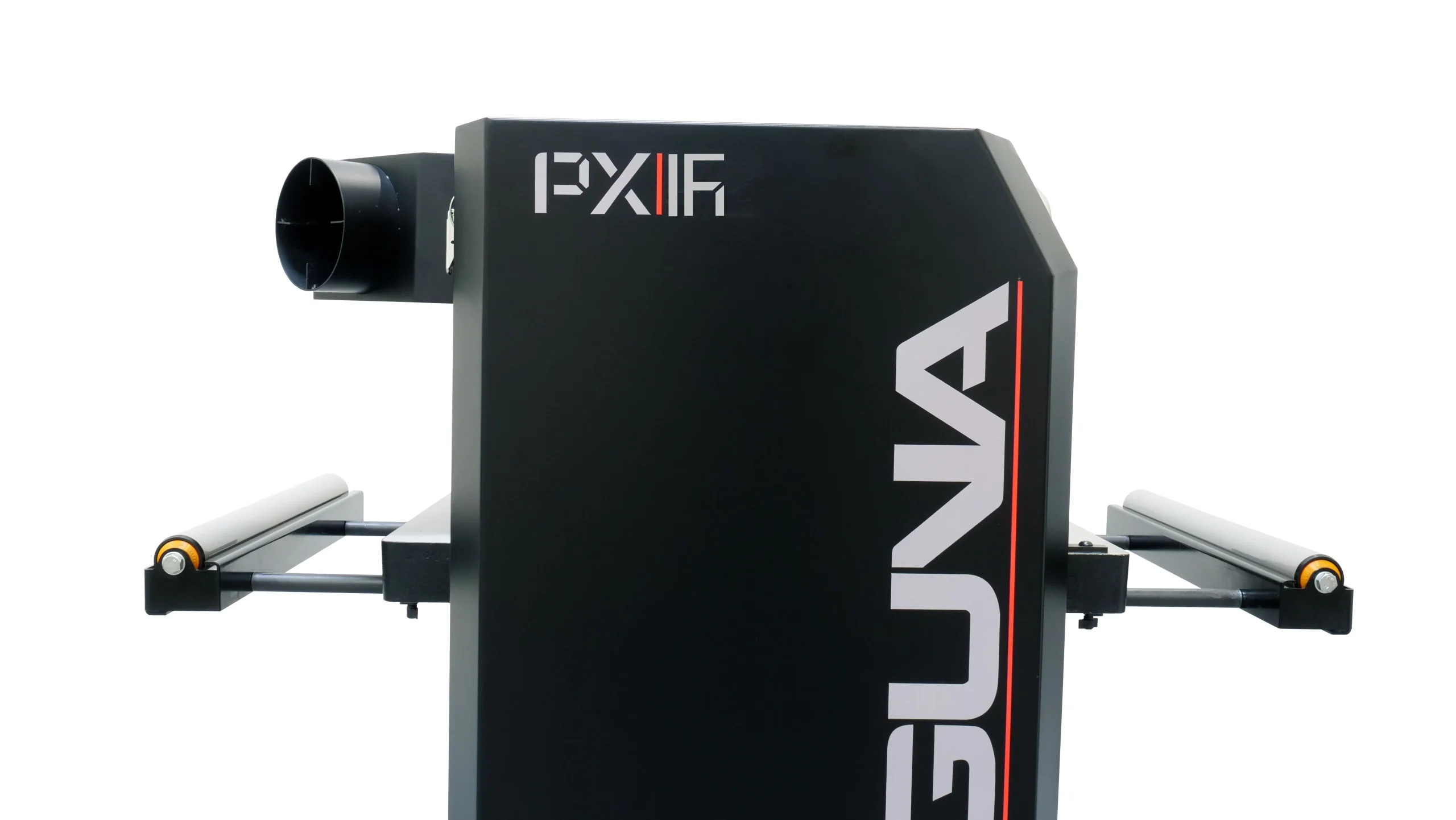

Infeed and Outfeed Rollers – The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint

Digital Readout – The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier

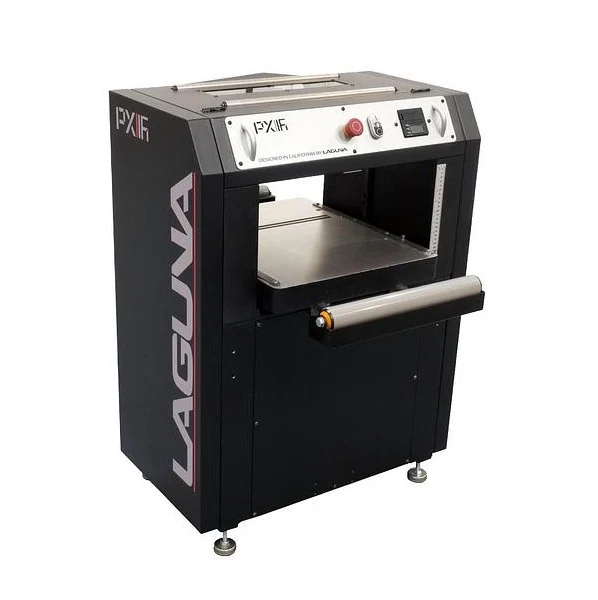

Ergonomic Control Panel – Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|16 sports a sleek, modern design

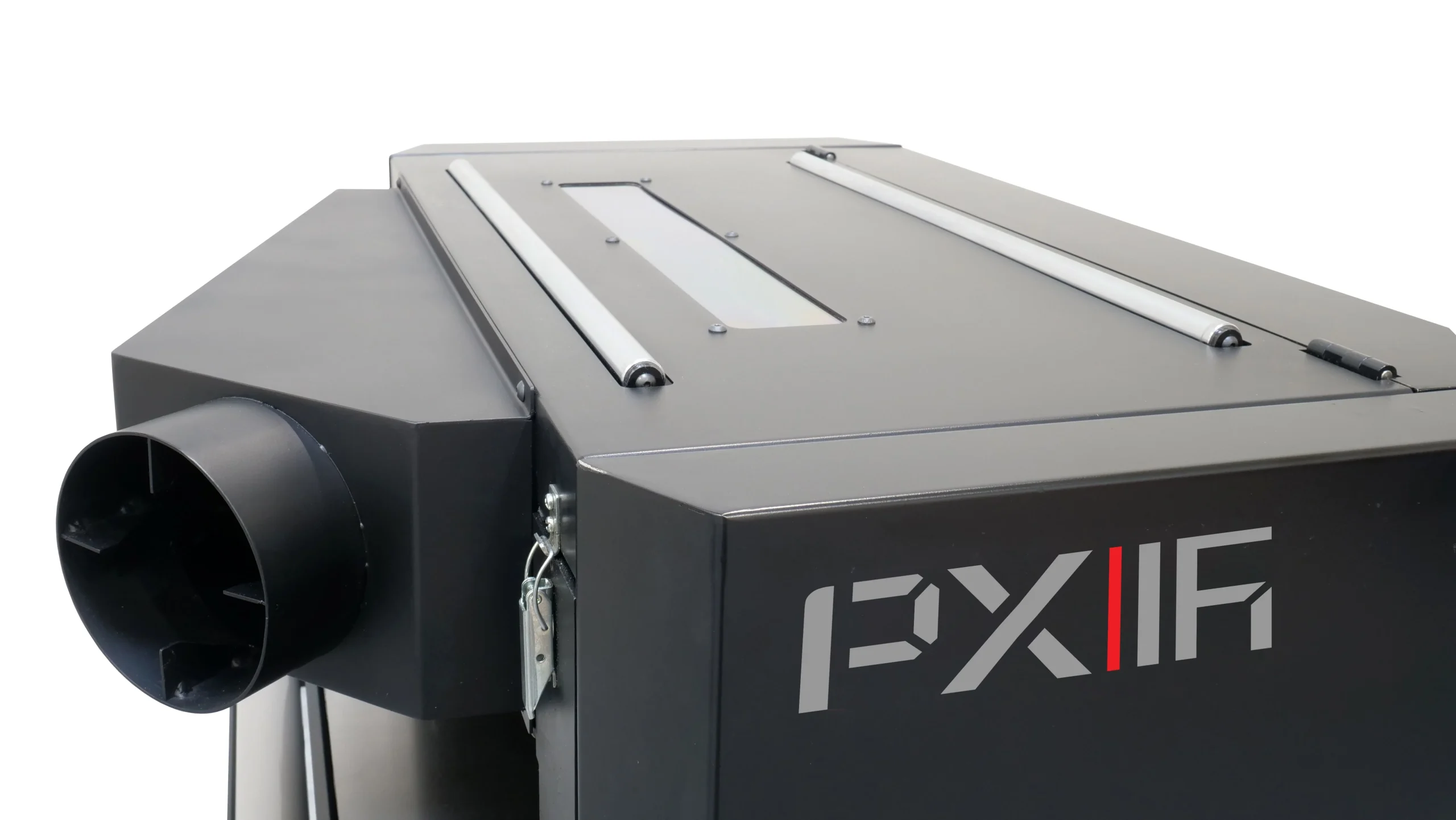

Improved Dust Collection – The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout

4-Post Bed Support – Provides precise and consistent performance with every cut

ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on PX|20 Planer. The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

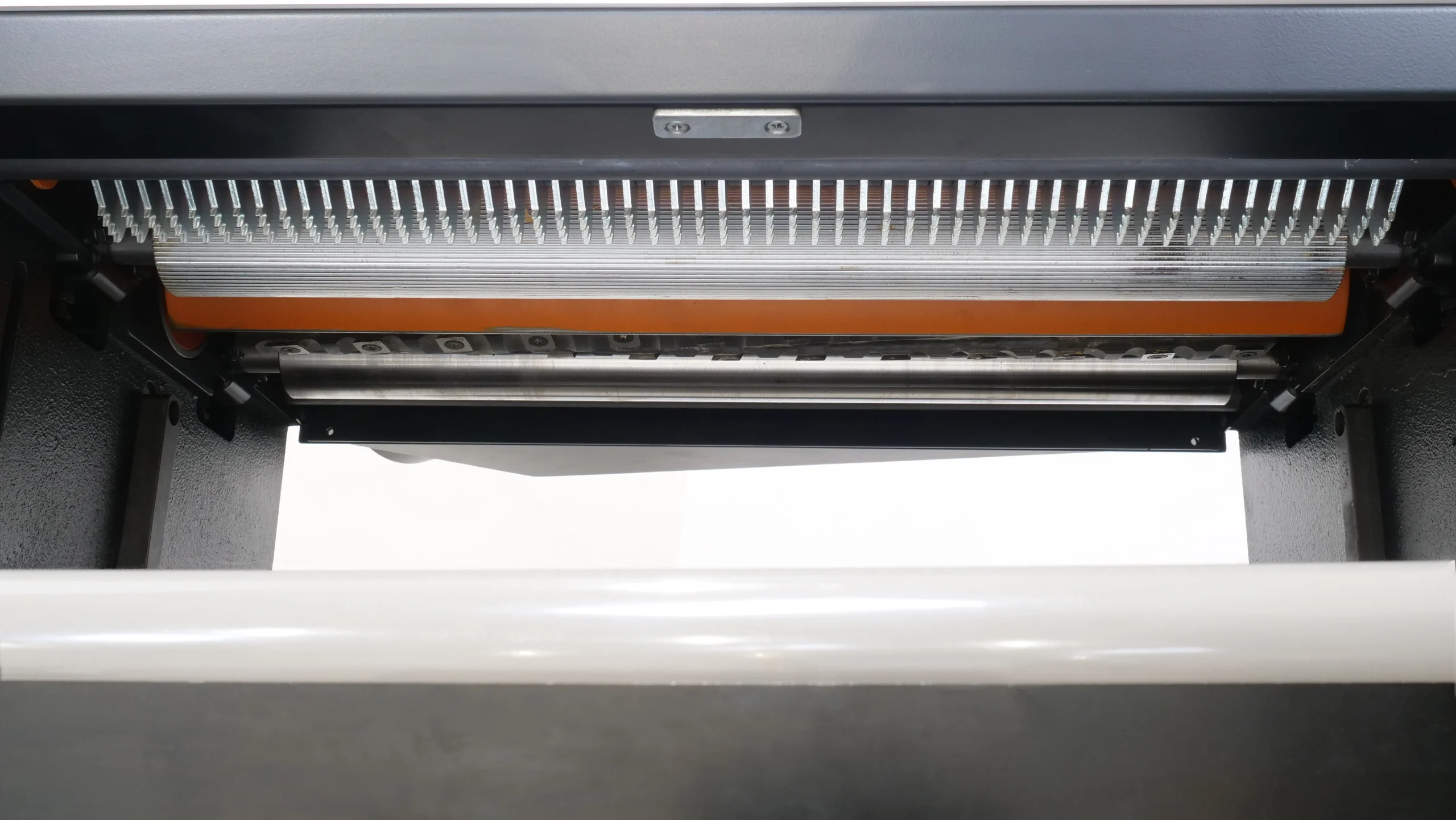

Serrated Infeed Roller – The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe

Specs:

• Motor: 5HP /220V / 1PH / 23 Amp
• CSA: Yes
• Bed Size: 16 x 21-1/2″
• Pull-Out Extension: 4″
• Max. Depth of cut: 1/4″
• Max. Stock Thickness: 8″
• Min. Stock Thickness: 1/4″
• Min. Stock Length: 8″
• Max. Stock Width: 16″
• Feed Speed: 16 & 28 FPM
• Dust Port Diameter: 4″ LEFT or RIGHT
• Cutterhead RPM: 5000
• Cutterhead Inserts: 108 x 4-sided Carbide, 6 Row
• Thickness Readout: Wixey Digital Readout
• Dimensions: 33″ x 36″
• Weight: 505 lbs
