Part Number: EFIXR553C50
Pack Size: 1 Unit

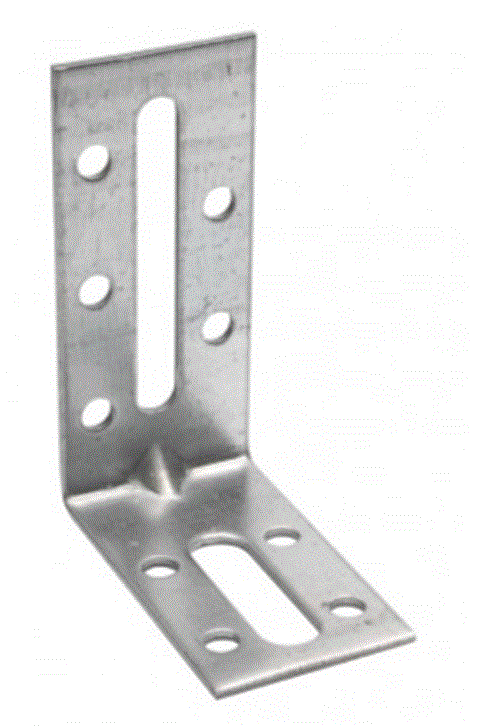

Compact Adjustable Bracket for Internal Timber Connections
The Simpson Strong-Tie EFIXR553 is a compact, adjustable angle bracket specifically designed for internal timber fixings. Ideal for framing and joinery, this pre-galvanised bracket features two slotted bolt holes to allow for on-site adjustment, ensuring precise alignment. Its durable 2.0mm steel construction ensures reliable performance in a wide range of timber applications.
Key Features
-
Adjustable angle bracket for precise timber-to-timber connections
-
Two slotted bolt holes for easy on-site positioning and flexibility
-
Compact size makes it ideal for restricted or tight spaces
-
Manufactured from 2.0mm pre-galvanised mild steel for corrosion protection
Benefits
-
Simplifies alignment in internal joinery and timber framing
-
Quick to install with standard nails or bolts
-
Supports a variety of fixing options for enhanced versatility
-
Strong and rust-resistant for long-lasting performance
Specifications
| Attribute | Value |
|---|---|
| Width 1 (W1): | 50mm |
| Width 2 (W2): | 50mm |
| Leg Length (L): | 30mm |
| Material Thickness: | 2.0mm |
| Material: | Pre-galvanised mild steel |
| Fixing Holes: | 8 x Ø5mm nail holes |
| Slotted Bolt Holes: | 1 x 6.5mm x 30mm and 1 x 8.5mm x 30mm |
Typical Applications
-
Internal timber-to-timber joints
-
Small framing and structural joinery
-
Cabinet or furniture assembly
-
General carpentry requiring adjustable corner brackets
Important Note
Ensure correct positioning and use of all required fasteners for structural integrity. Not intended for use in high-moisture or marine environments without additional protective treatment. Always install in accordance with applicable standards and building regulations.
