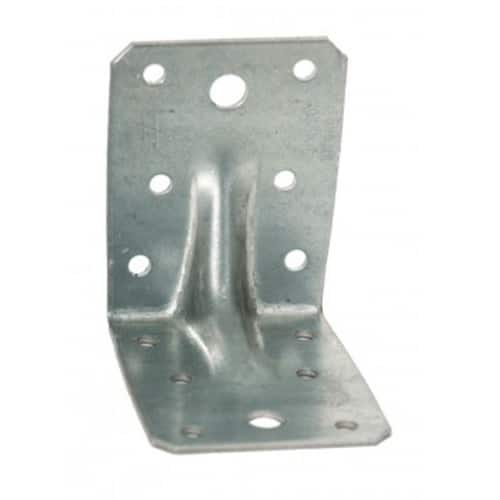

Simpson Strong-Tie ABR70 Reinforced Angle Bracket

High-Strength Support for Structural Timber and Framing

The Simpson Strong-Tie ABR70 Reinforced Angle Bracket is designed to provide robust, multi-directional support for structural timber connections in residential framing and wood-frame construction. Reinforced for superior performance, the ABR70 ensures secure and stable fixing across a variety of building materials.

Product Features

Reinforced Build: Enhanced load-bearing capacity in all directions
Versatile Hole Layout: Supports full or partial nailing for tailored installation
Compact but Strong: Ideal for both lightweight and structural timber applications
Engineered for Durability: Precision-formed from pre-galvanised mild steel for corrosion resistance

PRODUCT DIMENSIONS

Applications

Ideal for securing:

Small trusses
Cladding plates and uprights
Rafter anchors
Cantilevers and headers
Timber-to-concrete or steel connections
Joists, beams, triangular trusses, and structural timber profiles

Suitable Materials

Supporting Members: Solid wood, laminated timber, concrete, steel
Supported Members: Solid wood, composite timber, glulam, engineered profiles

Product Dimensions (ABR70)

A (mm)	B (mm)	C (mm)	Thickness (t)
70	70	55	2 mm

Hole Configuration

Flange A	Ø5	Ø8.5	Ø11	Ø13	Ø13×40
Qty	6	1	–	–	–

Flange B	Ø5	Ø8.5	Ø11	Ø13
Qty	6	1	–	–

Material & Finish

Material: Pre-galvanised mild steel
Finish: Suitable for protected internal environments
