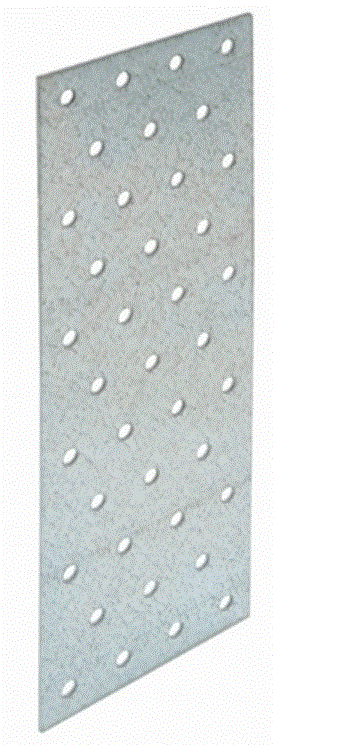

Simpson Strong-Tie NP40/120 Nail Plate 40mm x 120mm Connect Two or More Timber

Part Number: NP40/120
Pack Size: 1 Plate

Versatile Nail Plate for Timber Jointing and Flat Connections

The Simpson Strong-Tie NP40/120 Nail Plate is a multi-purpose timber connector, designed for joining two or more wood elements in the same plane. Made from 1.5mm pre-galvanised mild steel, this plate is strong, corrosion-resistant, and suitable for both interior and sheltered outdoor use. The compact 40mm x 120mm size makes it ideal for a wide range of general-purpose carpentry and joinery applications.

Key Features

• Designed for flat timber-to-timber connections

• Made from 1.5mm thick pre-galvanised mild steel

• Contains 9 pre-punched fixing holes for Ø4.1mm nails

• Can be bent on site for custom applications

• Ideal for structural reinforcement, repairs, and wood element joining

Benefits

• Quick and easy to install with standard nails

• Provides solid reinforcement without cutting or mortising timber

• Flexible for both standard and non-standard configurations

• Durable finish resists rust in indoor and low-exposure external environments

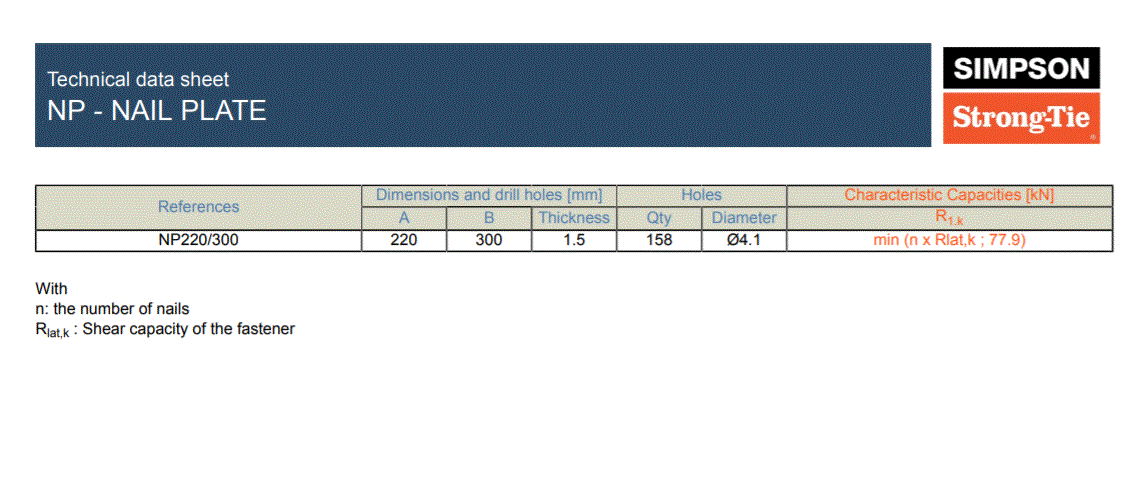

Specifications

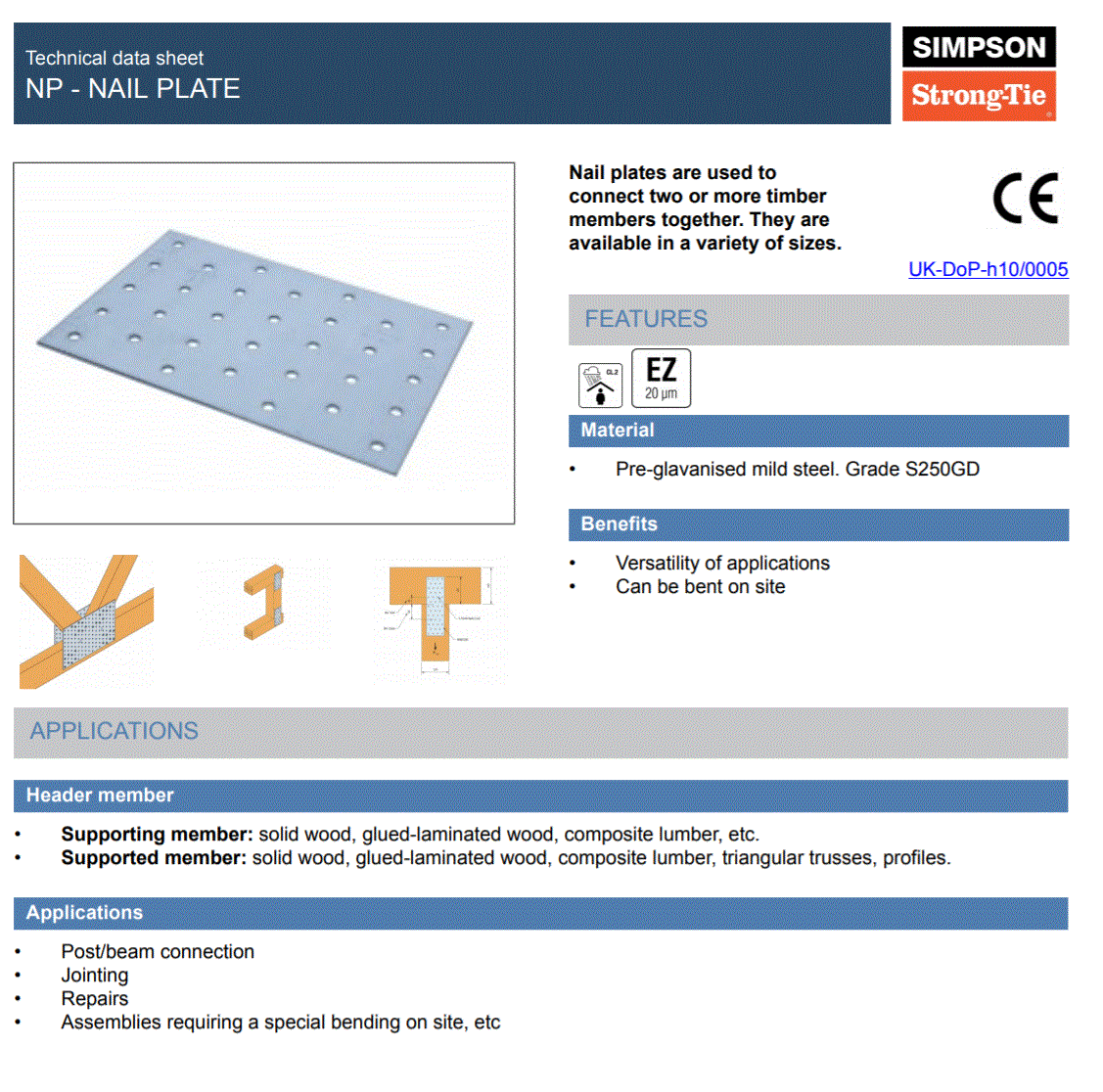

Typical Applications

• Timber splicing and reinforcement

• General carpentry and framework

• Securing and repairing joists or beams

• Joining flat-facing timber components

Important Note

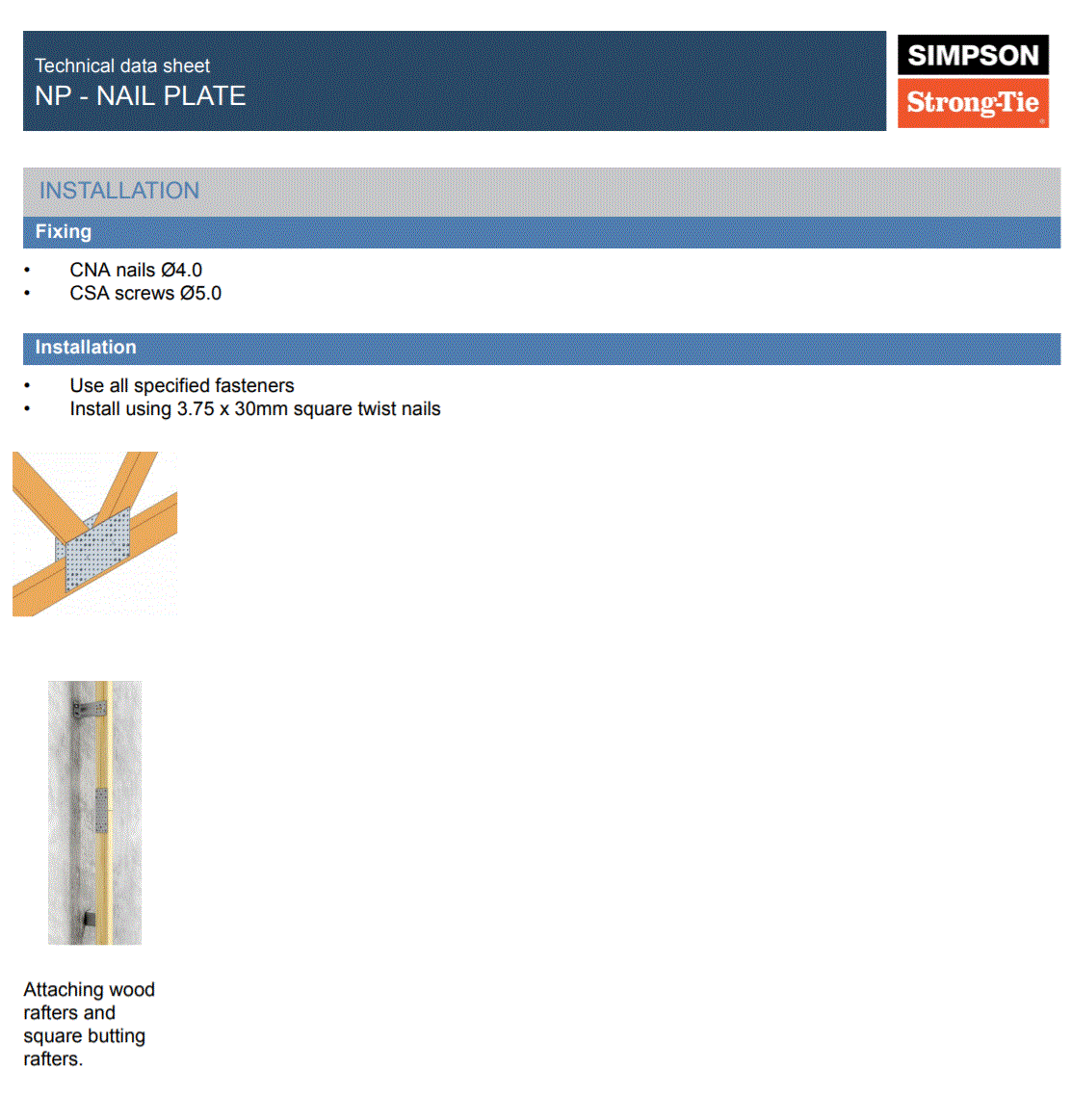

Ensure fixings are fully seated into all pre-punched holes for optimum performance. For structural applications or load-bearing connections, consult with a qualified professional to confirm suitability. Not recommended for high-moisture or marine environments without additional protection.
