Simpson Strong-Tie RR Ridge Rafter Connector 38mm W x 102mm W x 33mm D Pre-Galv

Original price was: £3.18.Current price is: £2.64.

Category: Simpson Strong-Tie

Description
Reviews (0)

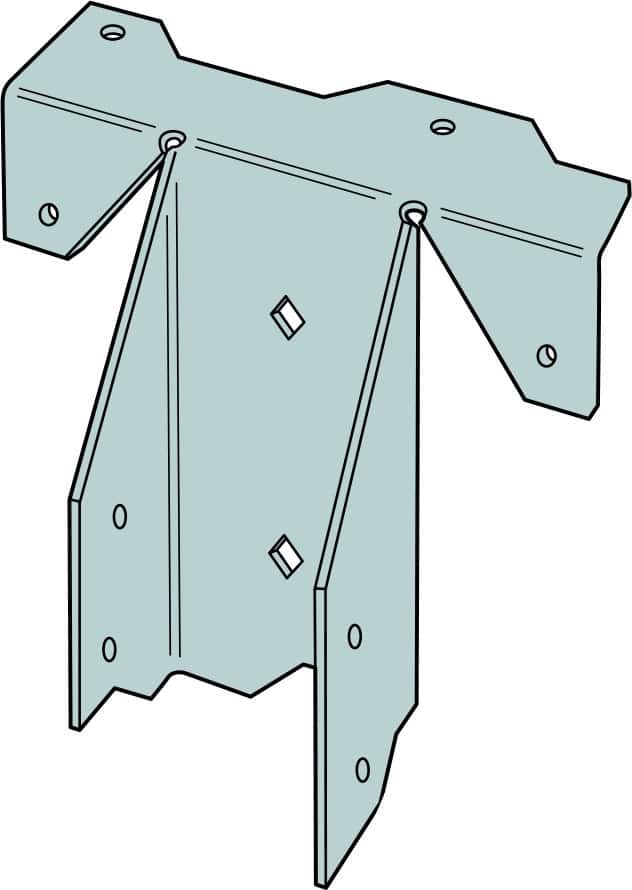

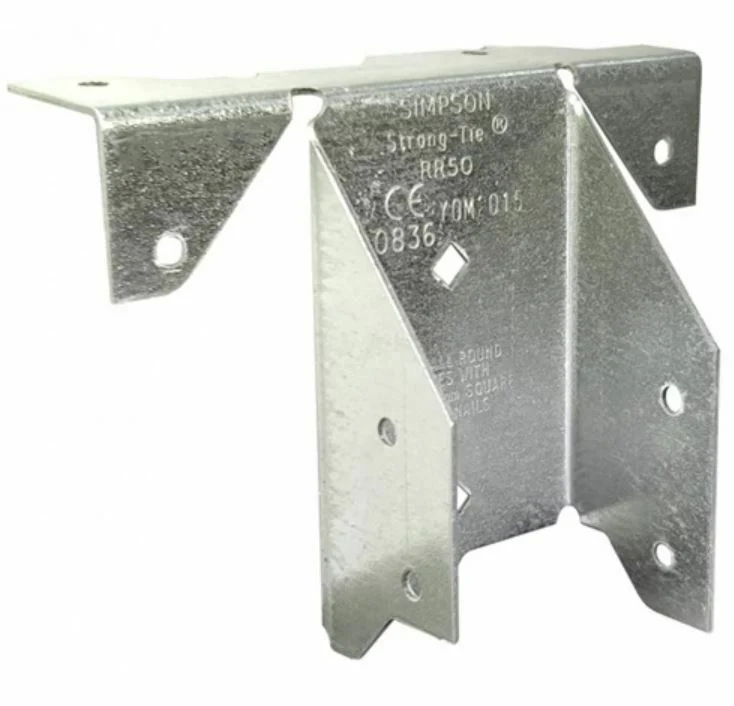

Simpson Strong-Tie RR Ridge Rafter Connector – 1.2mm Pre-Galvanised Steel

Precision Alignment for Rafter-to-Ridge Connections

The Simpson Strong-Tie RR Ridge Rafter Connector is purpose-built to ensure accurate alignment and secure fixing at the ridge junction of pitched roofs. Suitable for use with rafter slopes of up to 30°, it provides both structural support and simplified installation through pre-defined nailing locations.

Key Features

Up to 30° Rafter Slope Compatibility
Adaptable for various roof pitches, making it ideal for diverse residential and light commercial roofing applications.
Defined Nailing Points for Accurate Fixing
Clearly marked nail holes help ensure compliance with structural standards while simplifying onsite installation.
Pre-Galvanised Steel Protection
Manufactured from 1.2mm thick pre-galvanised mild steel, offering corrosion resistance and long-term durability.
Compact and Strong
Despite its small size, the RR connector offers reliable support for ridge-to-rafter connections, improving joint integrity under load.

Material Specification

Material: Pre-galvanised mild steel
Thickness: 1.2mm

Product Dimensions

Max Width (mm)	Min Width (mm)	Max Height (mm)	A (mm)	B (mm)	C (mm)	D (mm)
38	38	125	83	33	102	–

Hole Configuration:

Header: 4 x Ø4mm holes
Joist: 4 x Ø4mm holes

Performance Values

Fasteners Used	R1,k (kN)	R1, SWL Long Term (kN)
4 x N3.75 x 30 (Header)
4 x N3.75 x 30 (Joist)	1.4	0.6

Load values assume full fastening in dry service conditions with C24 timber.

Common Applications

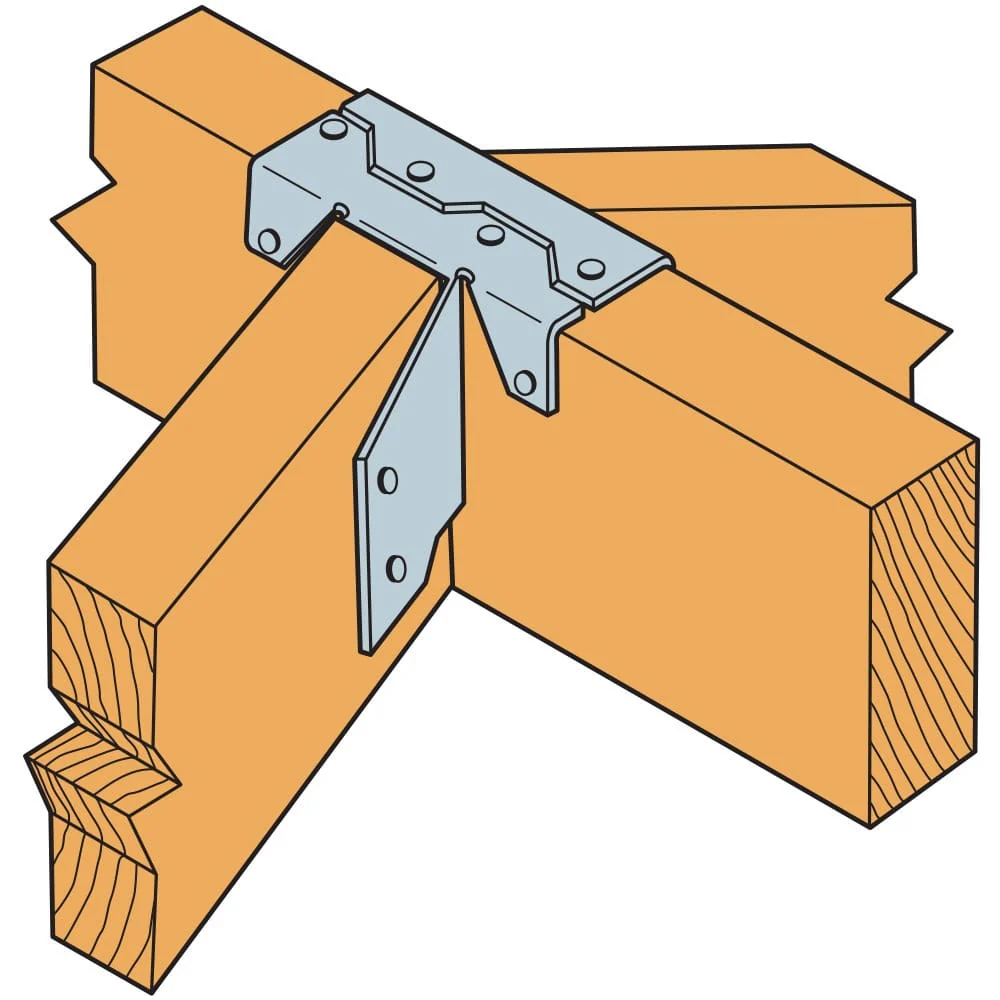

Rafter-to-ridge beam connections in pitched roof construction
Residential and light commercial timber framing
Roof structures requiring uplift resistance and alignment control
